Wireless Dynamics Sensor System
Recommended for College and High School. No interface needed. Software sold separately.
The Wireless Dynamics Sensor System (WDSS) combines a 3-axis accelerometer, an altimeter, and a force sensor into one unit that communicates wirelessly with your computer using Bluetooth® wireless technology.
Use the WDSS with your Bluetooth-enabled computer and Logger Pro software to collect data free of friction due to cables. Internal data storage capacity allows you to use it as a stand-alone data logger, making it great for roller coaster physics. In addition, you can use the WDSS to do traditional experiments that you do with conventional accelerometers and force sensors.
Using Multiple WDSS
The WDSS can be used alone, with one or more additional WDSS units, or with other Vernier interfaces. The WDSS does not require an interface unless the experiment requires the use of other sensors that are not included in the unit itself. Here are some common combinations:
- Internal Data Storage Capacity: 240,000 readings
- Maximum Sampling Rate: 1000 samples/s
- Dimensions: 12.1 cm × 5.3 cm × 3.9 cm
- Mass: about 200 g
- Operating Current: 35–50 mA @ DC minimum 3.2V
- Nominal Charging Current: @350 mA
- DC input, Rating: DC 6V 500mA maximum
- Bluetooth radio frequency: approximately 2.45 GHz (2450 MHz)
- Wireless Range: Up to 10 meters (30 ft) with no obstruction.
- Number of WDSS devices that can be connected to one computer: 7
- Range: ±50 N
- Frequency Response: 0–100 Hz
- Resolution: 0.006 N (<10 N) 0.03 N (>10 N)
(for each of the three accelerometers):
- Range: ±50 m/s2 (±5 g)
- Resolution: 0.04 m/s2
- Frequency Response (maximum): 100 Hz
- Altitude change range: ±200 m
- Resolution: 1 m
- Combined linearity and hysteresis: typical ±0.1% full scale, maximum ±0.5% full scale
- Response time: 0.5 second
Download the user manual for full specifications
Experiments and Lab Ideas
The Wireless Dynamics Sensor System can be used as a substitute for both the Dual-Range Force Sensor, the Low-g Accelerometer, and the 3-Axis Accelerometer in any of the experiments for those products.
WDSS Activities Booklet
Download our booklet that contains six activities using the Vernier Wireless Dynamic Sensor System and Vernier Logger Pro software for collecting, displaying, printing, graphing, and analyzing data. Many of the data-collection features of the WDSS are illustrated in these activities, providing a foundation to explore accelerations, forces and their interrelationships. The activities adapted from teacher training materials created by Chris Butlin, Educational Consultant, York, UK.
Here are the seven labs in the booklet:
- WDSS Bungee Jumper
- Centripetal Accelerations on a Model Centrifuge
- Mission to Titan – Investigating Surface Composition
- Physics at Amusement Parks
- Newton’s Second Law
- Newton’s Third Law
- Investigating Collisions with Crumple Zones
Download WDSS Activities Booklet
Amusement Park Physics
Let your students experience physics with activities from the Amusement Park Physics! Use data-collection technology to study roller-coaster physics and other amusement park rides. Now you can measure altitude changes and acceleration with the Wireless Dynamics Sensor System, then transfer the data wirelessly to your computer for analysis and comparison. Use a Data Vest to hold the Wireless Dynamics Sensor System in place during the ride.
Learn more about Amusement Park Physics »
WDSS Experiment Ideas
The Wireless Dynamics Sensor System is the perfect tool for dozens of physics and physical science experiments such as:

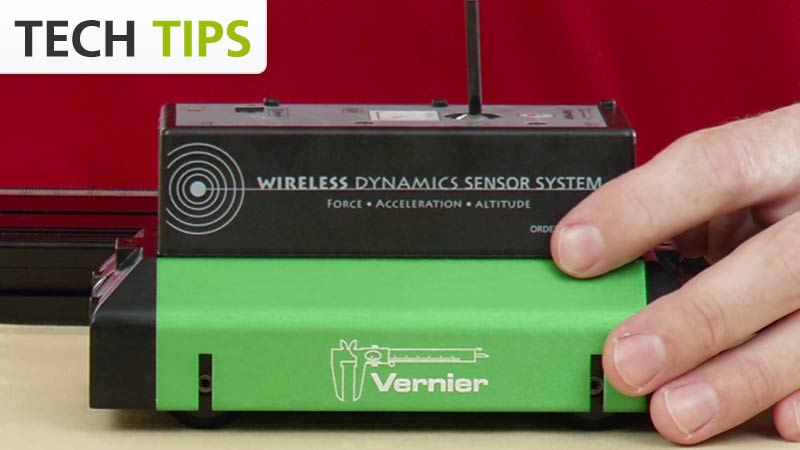

- Studying the motion of a dynamics cart on a track. The WDSS can be mounted on a cart, avoiding the problems associated with wires when using conventional accelerometers and force sensors.
- Amusement park and playground rides. The WDSS has internal memory and can collect acceleration and altitude data (to get a profile of the ride) for over 100,000 readings over several minutes. You can store multiple runs before retrieving the data.
- Studying simple harmonic motion by mounting the WDSS as an oscillating mass hanging from a spring.
- Studying accelerations of skateboarders or dancers with a WDSS mounted on them while data are recorded on a nearby computer.
- Studying forces and accelerations during circular motion by mounting the WDSS on a turntable or bicycle wheel.
Lab Ideas and Innovative Uses
- Vernier Wireless Dynamics Sensor System
- AC adapter
- Bumper with 1/2″ aluminum extender
- Small eye hook with plastic lock nut
- 1/4-20 × 3/4″ diameter eye w/ plastic lock nut
- 3/8″ diameter aluminum rod cross drilled 1/4″ at one end
- 1/4-20 thumb screw
- Mounting plate
- (2) 10-32 × 1/2″ flat head screws for above
- (2) 10-24 × 1″ hex head screw
- 10-24 × 5/8″ binding barrel
- User manual
- The Wireless Dynamic Sensor System requires Logger Pro 3 software.
- Bluetooth radio. On Windows, radios must use the Microsoft Bluetooth driver.
Supported Bluetooth Radios
- EZURiO Bluetooth USB Adapter
- Belkin Bluetooth USB Adapter
- MSI BToes USB Dongle
Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications. Product usage disclaimer »
