Watts Up Pro

Product image for Watts Up Pro

Watts Up Pro is used to monitor real-time electricity usage and cost. It can connect via an included USB cable to a Vernier interface, allowing for electricity usage data to be collected in combination with data from other sensors such as temperature, light, or relative humidity.

Description

Watts Up Pro can be used at the same time as a Vernier interface to simultaneously collect data about electricity use and data from other sensors, for example temperature or light sensors. Watts Up Pro can also be used without a computer by connecting to the USB port of a LabQuest interface.

What Types of Data Can I Collect with Watts Up Pro?

Watts Up Pro calculates a wide variety of data, including maximum watts, frequency, and cumulative costs. Logger Pro collects data on the following types of data simultaneously:

  • Real Power: The power currently being consumed by the device that is plugged into Watts Up Pro, measured in watts.
  • Potential: The root mean squared (RMS) potential present on the power line.
  • Current: The RMS current being drawn by the device that is plugged into Watts Up Pro, measured in amperes.
  • Apparent Power: The product of the RMS potential and the RMS current.

In addition, an experiment file available in Logger Pro contains calculated columns to explore cost. You can use this file to conduct a more complex analysis of your data.

Suggested Experiments

  • Compare different light bulbs or other devices: Compare the electricity use of different wattage light bulbs or different types of bulbs. Do compact fluorescent bulbs use less energy than incandescent bulbs? How much electricity is your computer using when it is “sleeping”?
  • Investigate phantom load: How much energy is used by a plasma TV? When it is turned off, is it really off? What about the microwave?
  • Measure long-term trends: Use Watts Up Pro to monitor the energy used by a freezer, heater, or air conditioner overnight. You can also use Watts Up Pro in combination with other sensors; for example, use a Temperature Probe and Watts Up Pro at the same time to see how the temperature changes when household items are turned on or off.

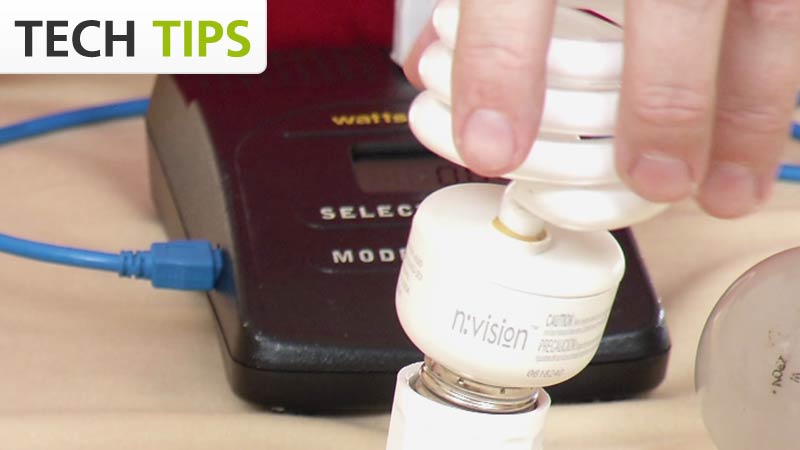

Videos

Specifications

  • Voltage: 120 V
  • Duty Cycle: 60 Hz
  • Maximum current: 15 amperes
  • Maximum sampling speed: 1 sample per second
  • Accuracy:±1.5%, + 3 counts of the displayed value
  • Below 60 watts, current and power factor decrease in accuracy
  • Minimum measurable power: 0.5 watts

    • Note: at 0.5 watts, the accuracy is ±0.3 watts
  • Mains supply voltage fluctuations not to exceed ±10% of the nominal voltage
  • Input is via 6′ electric cord, output is via outlet on top of meter
  • Indoor use only
  • Dimensions: 7″ × 4″ × 2″ (18cm × 10cm × 5cm)
  • Weight: 1.5 lbs (0.7 kg)
  • UL listed to standard UL 610010-1, and CAN CAS/C22.2 61010-1
  • Altitude: up to 2000 meters
  • Temperature: 5°C to 40°C
  • Maximum relative humidity: 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C
  • Installation Category II

Download the user manual for full specifications

Experiments and Lab Ideas

Lab Ideas and Innovative Uses

What’s Included

Sensor Requirements

Watts Up Pro requires Logger Pro software or LabQuest interface to collect data.

Ordering Information

All prices are for U.S. educators.

    NameOrder CodePriceQuantity
    Watts Up ProWU-PRO$145

    Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications. Product usage disclaimer »

    Order Code WU-PRO
    U.S. Educator Price $145

    Sample Data

    Measuring temperature and power consumption in a basement freezer
    Measuring temperature and power consumption in a basement freezer

    Support

    User Manual

    Download User Manual

    Online Resources

    Warranty

    1 year
