Voltage Probe

$12.00

This is a simple probe that measures potential difference relative to ground and connects to any Vernier interface.

ORDER CODE: VP-BTA Categories ,

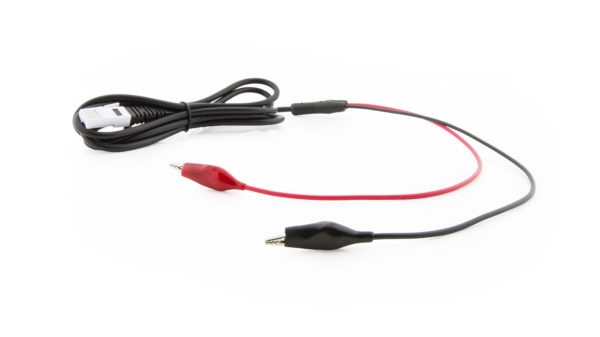

The Voltage Probe is a bipolar sensor. The black lead is grounded along with the interface, and the sensor reports the potential difference between the red lead and ground. It can be used to measure the potential in DC or AC circuits. You might also consider the Differential Voltage Probe. Multiple Differential Voltage Probes can be connected to a circuit without the use of a common grounding terminal.

Specifications

Input voltage range: ± 10 V

Experiments

Middle School (7 experiments)
ExperimentLab Book
Wind PowerInvestigating Environmental Science through Inquiry
Photovoltaic CellsInvestigating Environmental Science through Inquiry
Photovoltaic CellsEarth Science with Vernier
Wind PowerEarth Science with Vernier
Lemon "Juice"Middle School Science with Vernier
Lemon "Juice"Physical Science with Vernier
Simple CircuitsPhysical Science with Vernier
High School (15 experiments)
ExperimentLab Book
Photovoltaic CellsAgricultural Science with Vernier
Wind PowerAgricultural Science with Vernier
Electrochemistry: Voltaic CellsAdvanced Chemistry with Vernier
Investigating Voltaic CellsInvestigating Chemistry through Inquiry
Establishing a Table of Reduction Potentials: Micro-Voltaic CellsChemistry with Vernier
Lead Storage BatteriesChemistry with Vernier
Wind PowerInvestigating Environmental Science through Inquiry
Photovoltaic CellsInvestigating Environmental Science through Inquiry
Photovoltaic CellsEarth Science with Vernier
Wind PowerEarth Science with Vernier
Control Analog Out, Digital Out and Pulse OutHands-On Introduction to NI LabVIEWâ„¢ with Vernier
Lemon "Juice"Physical Science with Vernier
Simple CircuitsPhysical Science with Vernier
Electrical EnergyPhysics with Vernier
Charging Up, Charging Down - Charging a CapacitorReal-World Math with Vernier
College (8 experiments)
ExperimentLab Book
Photovoltaic CellsAgricultural Science with Vernier
Wind PowerAgricultural Science with Vernier
Electrochemistry: Voltaic CellsAdvanced Chemistry with Vernier
Investigating Voltaic CellsInvestigating Chemistry through Inquiry
Wind PowerInvestigating Environmental Science through Inquiry
Photovoltaic CellsInvestigating Environmental Science through Inquiry
Control Analog Out, Digital Out and Pulse OutHands-On Introduction to NI LabVIEWâ„¢ with Vernier
Electrical EnergyPhysics with Vernier

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support
Computers
Software
InterfaceGraphical Analysis App for Computers
Version 5.4		Logger Pro
Version 3.16.2		Logger Lite
Version 1.9.4
LabQuest MiniFull supportFull supportFull support
LabQuest 3Full supportFull supportFull support
LabQuest 2 (discontinued)Full supportFull supportFull support
LabQuest StreamFull support 1Full supportFull support 1
Go!LinkFull supportFull supportFull support
LabQuest (discontinued)Full supportFull supportFull support
LabPro (discontinued)IncompatibleFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis App for Chrome
Version 5.4
LabQuest MiniFull support
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest StreamFull support 1
Go!LinkFull support
LabQuest (discontinued)Full support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Wireless connection is not supported.
iOS
Software
InterfaceGraphical Analysis App for iOS
Version 5.4		Graphical Analysis GW for iOS
Version 4.0.6
LabQuest StreamFull supportFull support
LabQuest 3Full support 1Full support 1
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis App for Android
Version 5.4		Graphical Analysis GW for Android
Version 3.2		Google Science Journal
Version 1.2.259
LabQuest StreamFull supportFull supportIncompatible
LabQuest 3Full support 1Full support 1Incompatible
LabQuest 2 (discontinued)Full support 1Full support 1Incompatible

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQ (discontinued)Full support
Go!LinkFull support
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Full support
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2		DataMate
Version 1.15		TI-84 SmartViewDataQuest
Version 4.2		TI-Nspire Software
EasyLinkFull support 1IncompatibleFull support 2Full supportFull support 2
CBL 2Full support 3Full support 3 4IncompatibleIncompatibleIncompatible
LabPro (discontinued)Full support 3Full support 3 4IncompatibleIncompatibleIncompatible
TI-Nspire Lab Cradle (discontinued)IncompatibleIncompatibleIncompatibleFull supportFull support

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. Requires an Easy to Go! adapter
  3. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  4. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

Vernier Voltage Probe

Accessories

Support

Resources

Warranty

5-year limited warranty
See our warranty policy

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
