Thermocouple

Product image for ThermocoupleProduct image for Thermocouple
Product image for ThermocoupleProduct image for Thermocouple
Product image for ThermocoupleProduct image for Thermocouple
Product in use image for ThermocoupleProduct in use image for Thermocouple

A simple and rugged sensor designed to measure temperature in the range of –200ºC to 1400ºC. Low cost and a wide temperature range make the Thermocouple an economical, versatile temperature sensor.

Description

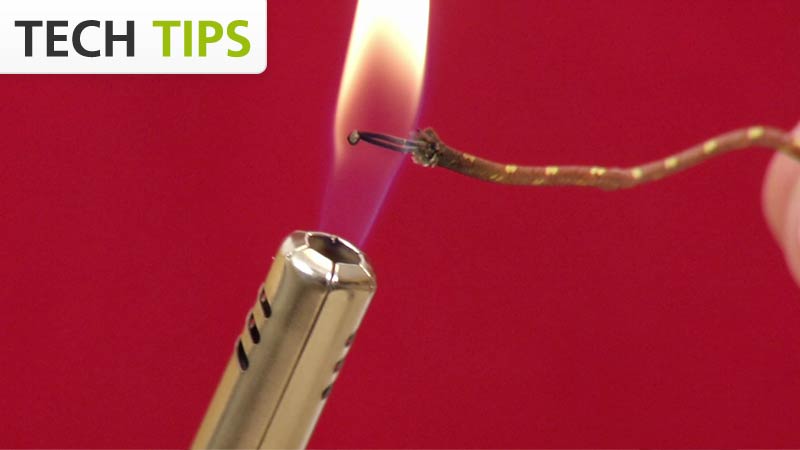

This sensor uses type-K thermocouple wire to measure temperatures in the range of -200 to 1400˚C. It can be used to measure flame temperatures as high as 1400˚C, or liquid nitrogen temperatures at -196˚C. The Thermocouple has an internal ice-point compensation chip, so you do not need to place a reference wire in an ice-water bath. You can simply use one measuring lead to take temperature readings. Each Thermocouple is individually calibrated.

Sample Data

Videos

Specifications

  • Typical Accuracy:
    • 0ºC to 900ºC: ±2.2º
    • –200ºC to 0ºC: ±5ºC
    • 900ºC to 1400ºC: ±15ºC
  • Power: 11 mA @ 5 VDC
  • Typical Resolution: 0.40ºC
View the Thermocouple user manual

Experiments and Lab Ideas

Lab Ideas and Innovative Uses

Do you have an innovative use for Vernier technology? What about a favorite lab or demo? We love to hear what creative uses people have for our products. Please email them to innovativeuses@vernier.com

Compatibility Requirements

The Thermocouple may require a compatible interface and software. Choose a platform below to see compatible interface and software options.

What’s Included

Ordering Information

All prices are for U.S. educators.

NameOrder CodePriceQuantity
ThermocoupleTCA-BTA$69
