Ohm’s Law

Experiment #22 from Physics with Vernier

Education Level
High School
College
Subject
Physics

Video Overview

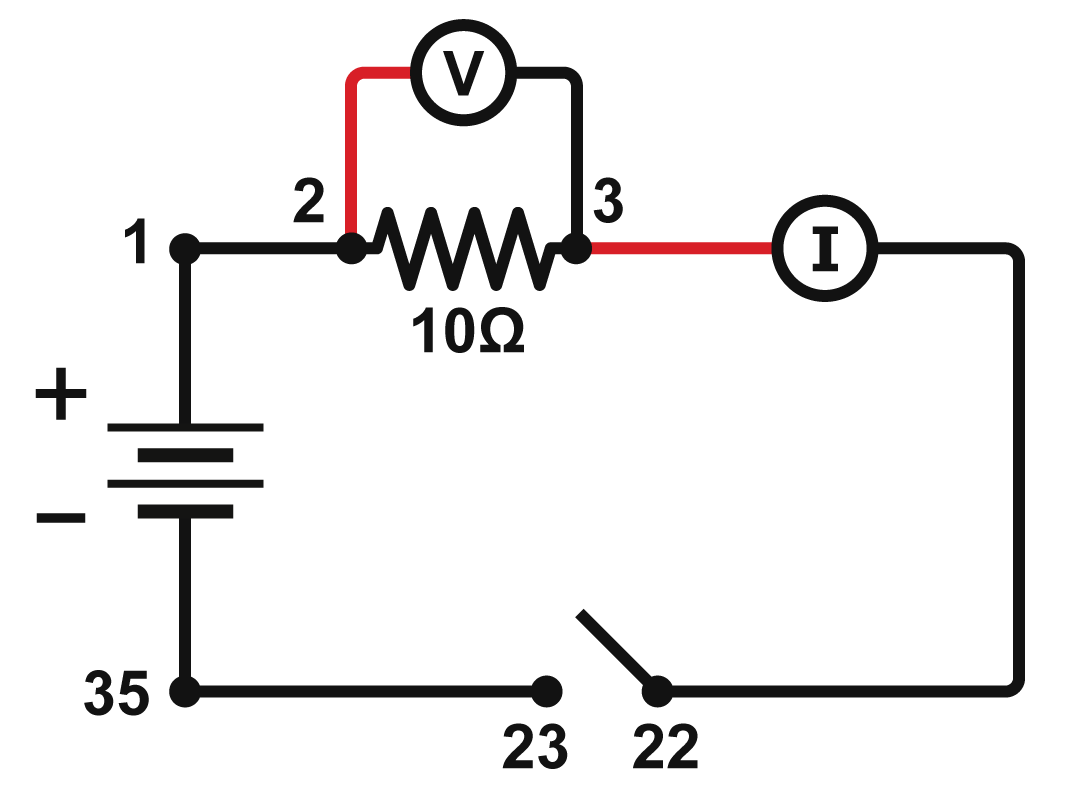

Introduction

The fundamental relationship among the three important electrical quantities current, voltage, and resistance was discovered by Georg Simon Ohm. The relationship and the unit of electrical resistance were both named for him to commemorate this contribution to physics. One statement of Ohm’s law is that the current through a resistor is proportional to the potential difference, in volts, across the resistor. In this experiment, you will see if Ohm’s law is applicable to several different circuits using a Current Probe and a Differential Voltage Probe.

Current and potential difference, in volts, can be difficult to understand, because they cannot be observed directly. To clarify these terms, some people make the comparison between electrical circuits and water flowing in pipes. Here is a chart of the three electrical units we will study in this experiment.

Electrical Quantity Description Unit Water Analogy
Voltage or Potential Difference A measure of the energy difference per unit charge between two points in a circuit. volt (V) Water pressure
Current A measure of the flow of charge in a circuit. ampere (A) Amount of water flowing
Resistance A measure of how difficult it is for current to flow in a circuit. ohm (*) A measure of how difficult it is for water to flow through a pipe.

Objectives

  • Determine the mathematical relationship between current, potential difference, and resistance in a simple circuit.
  • Compare the potential vs. current behavior of a resistor to that of a light bulb.

Sensors and Equipment

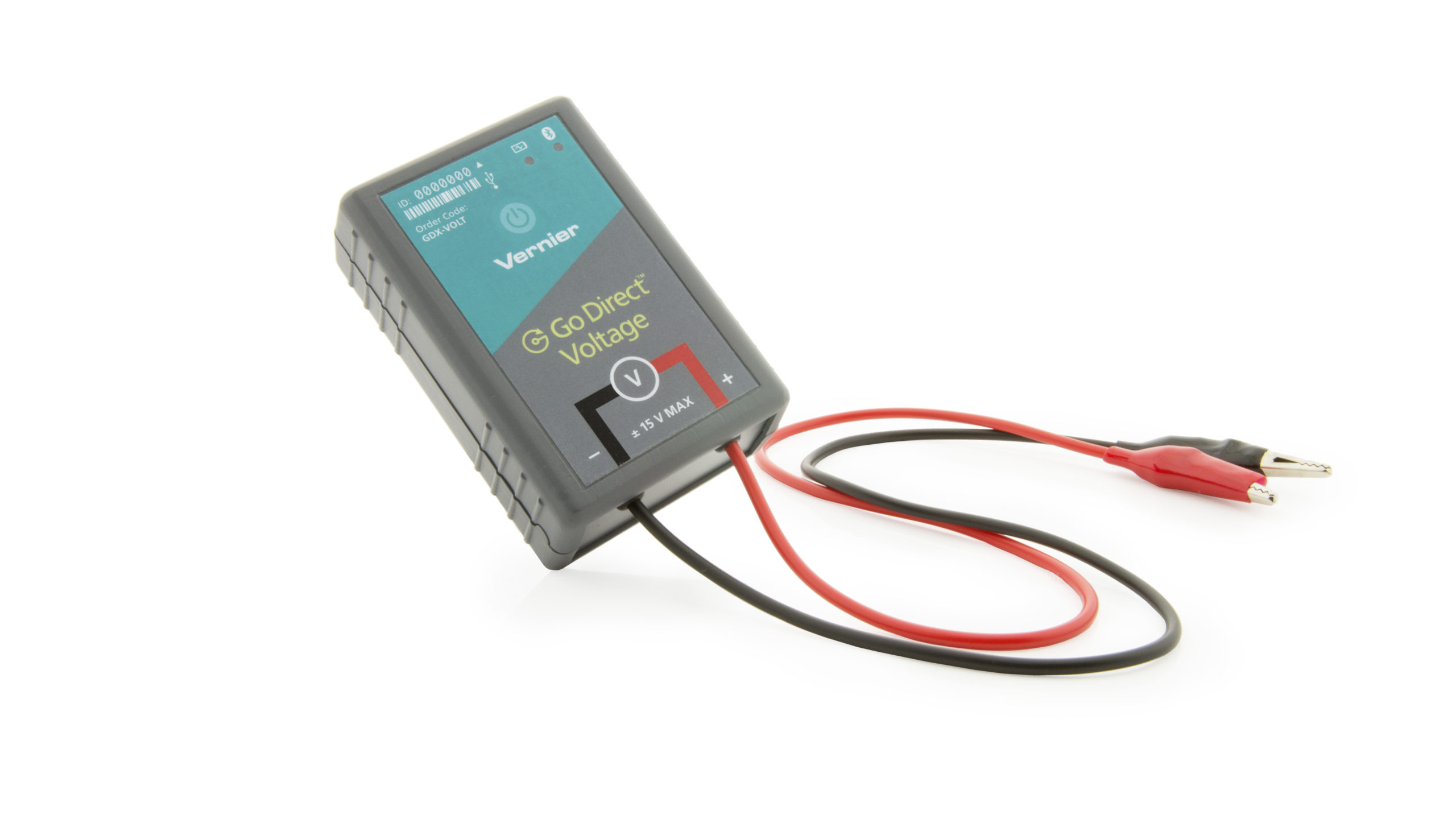

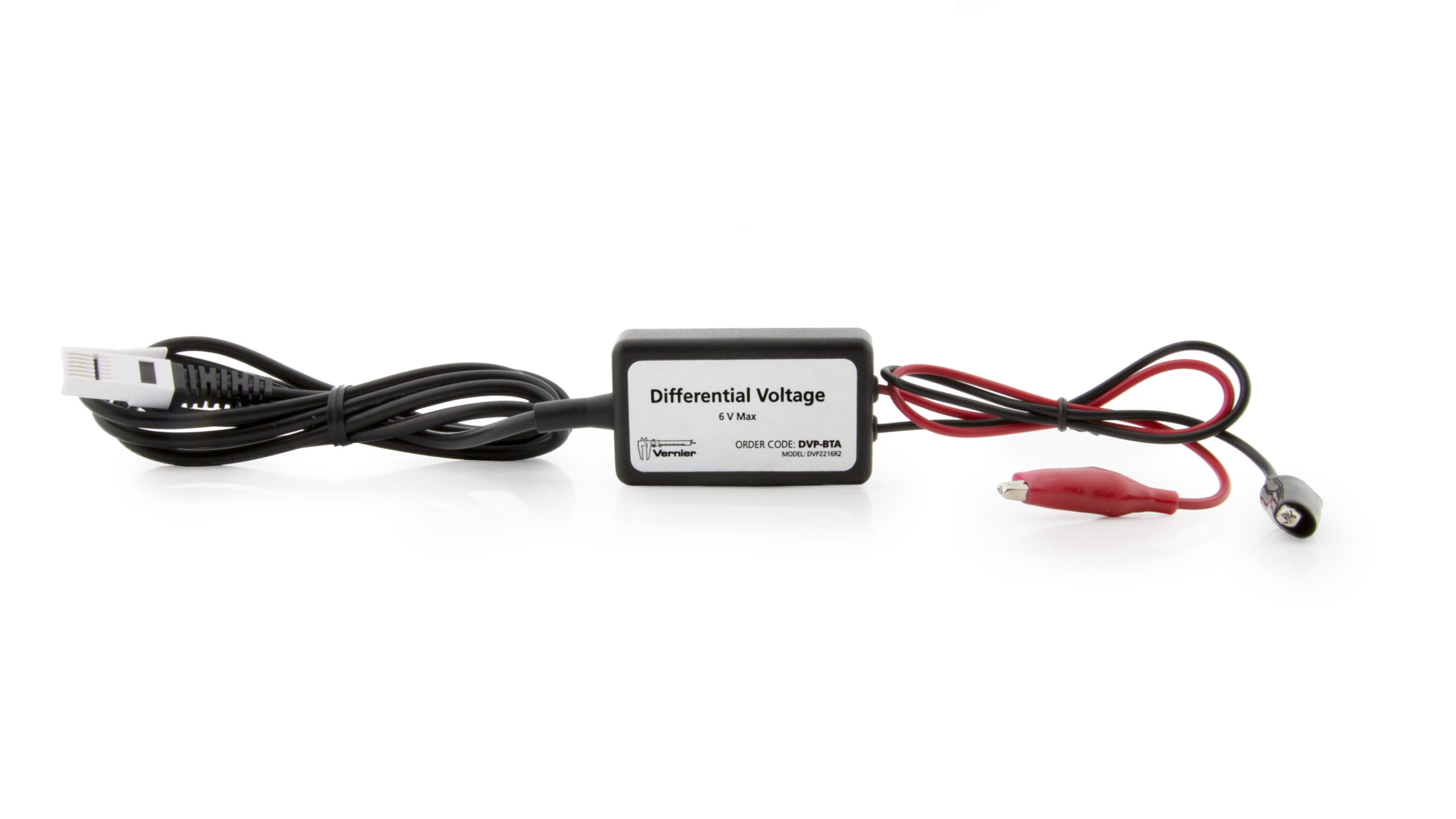

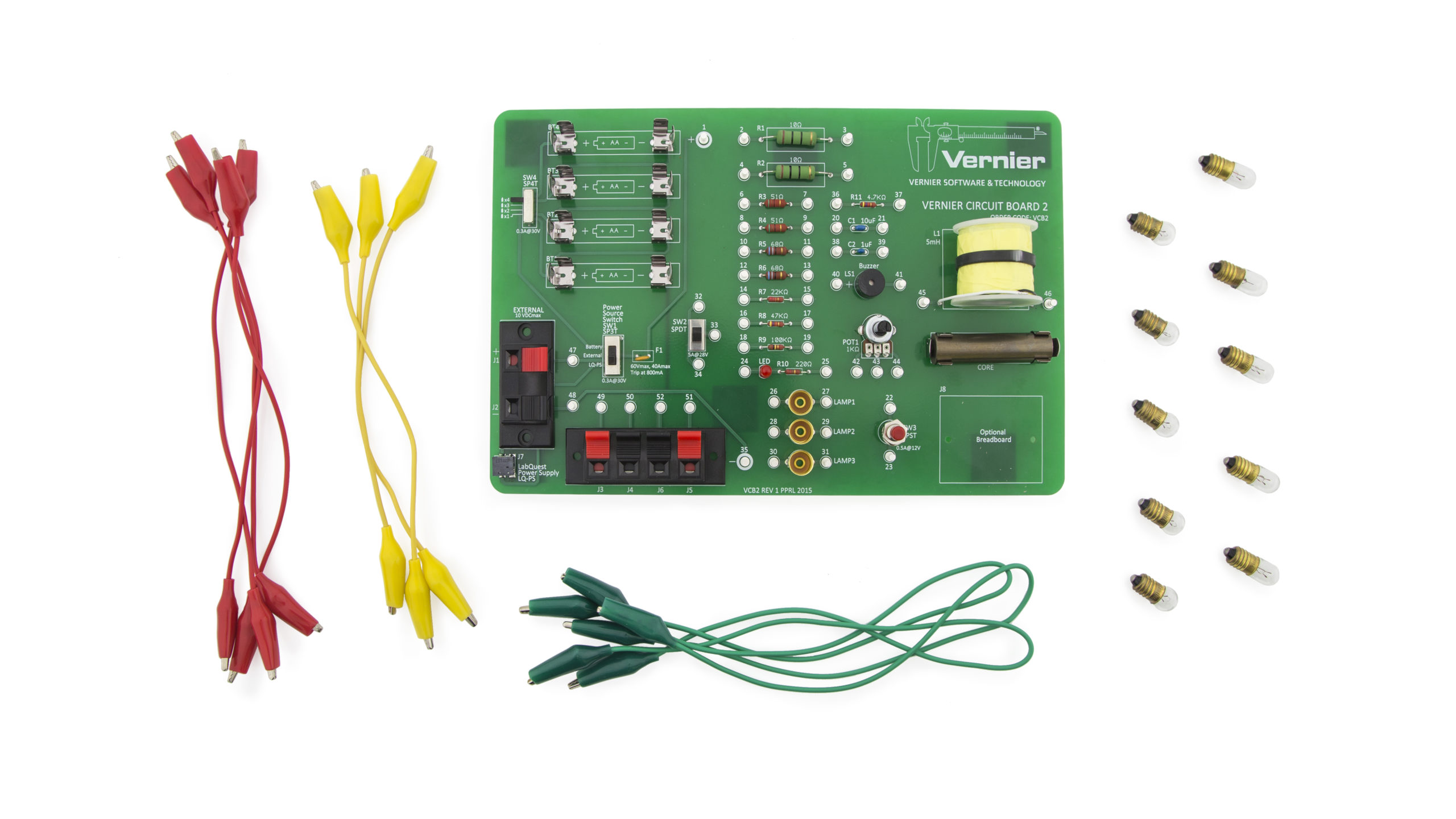

This experiment features the following sensors and equipment. Additional equipment may be required.

Correlations

Teaching to an educational standard? This experiment supports the standards below.

International Baccalaureate (IB) 2025/Physics
The students should understand electrical resistance R as given by R = V/I
The students should understand Ohm’s law
