Optional Breadboard Kit for the Vernier Circuit Board 2

$29.00

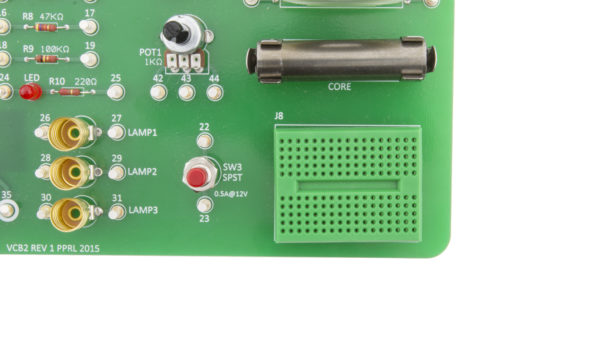

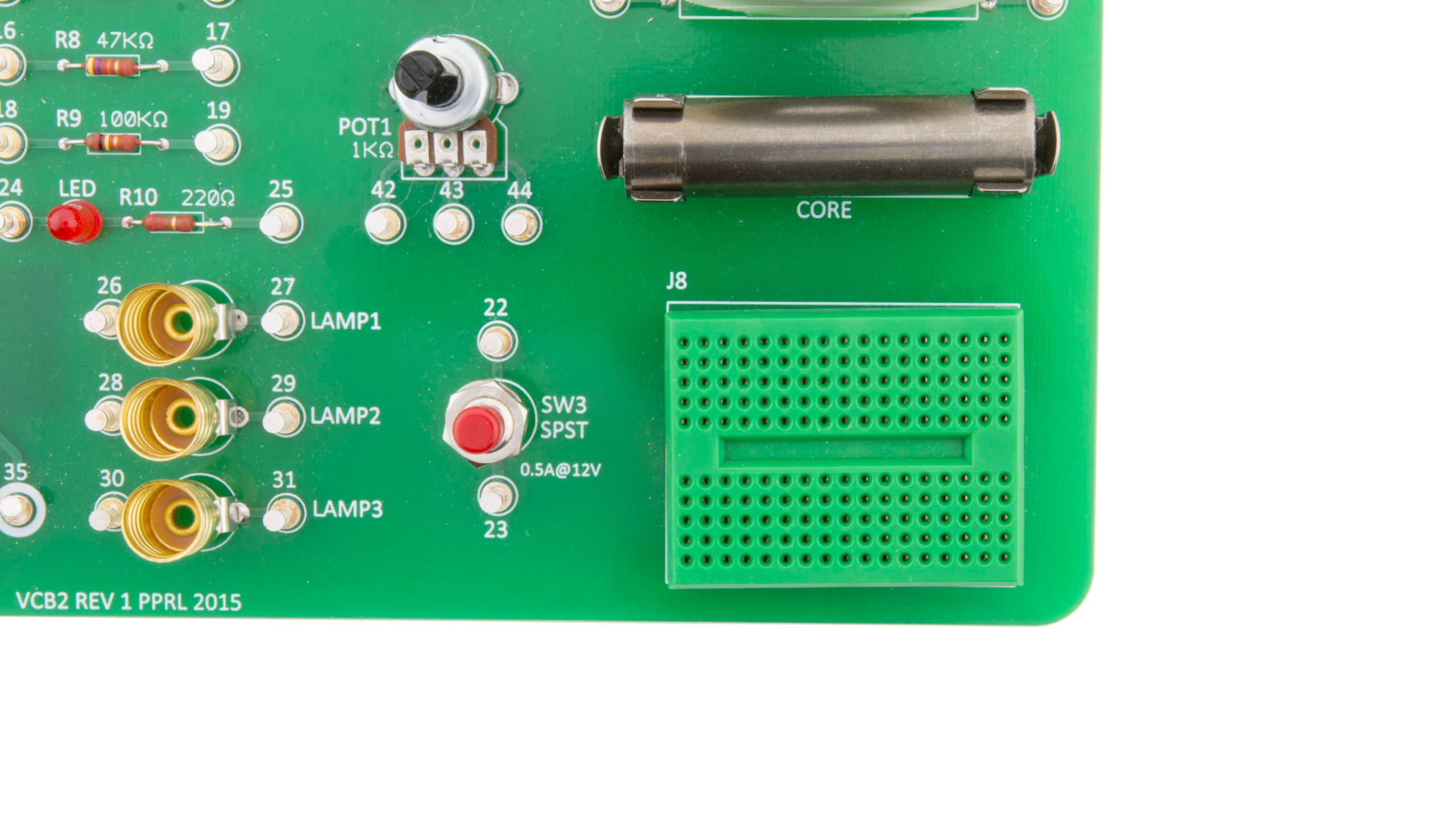

Install this small breadboard on the Vernier Circuit Board 2 in order to easily conduct experiments using additional electronic components not permanently mounted on the Vernier Circuit Board 2. Some components are included to get you started.

ORDER CODE: VCB2-OBBK Category

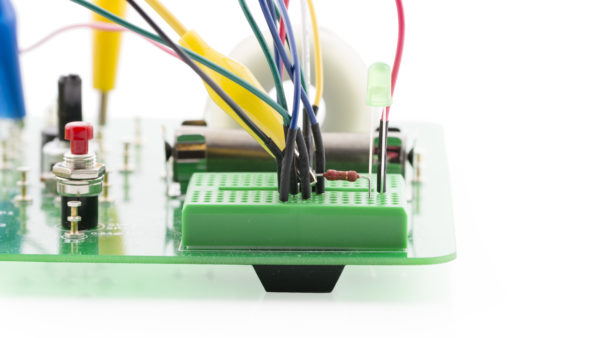

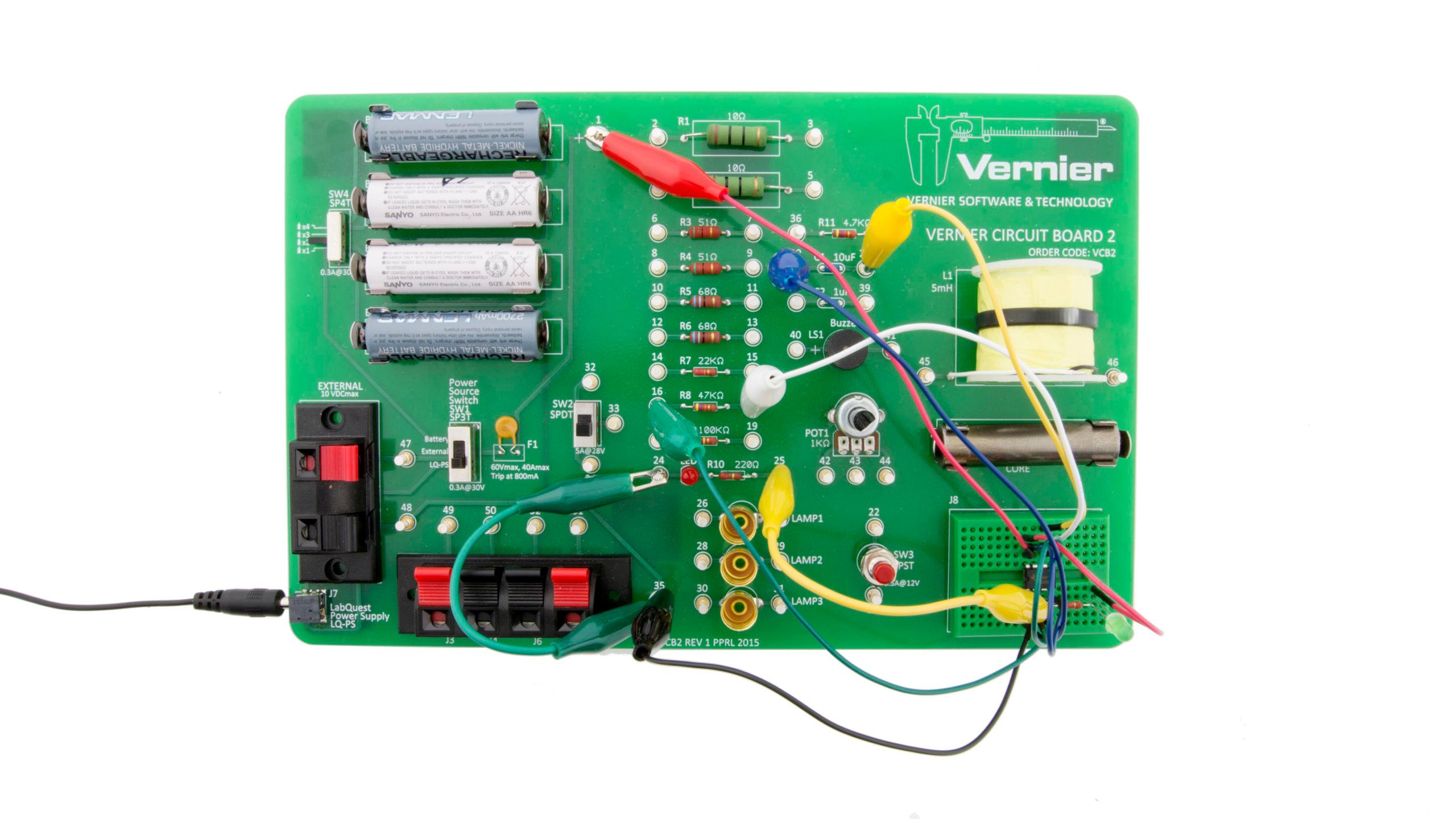

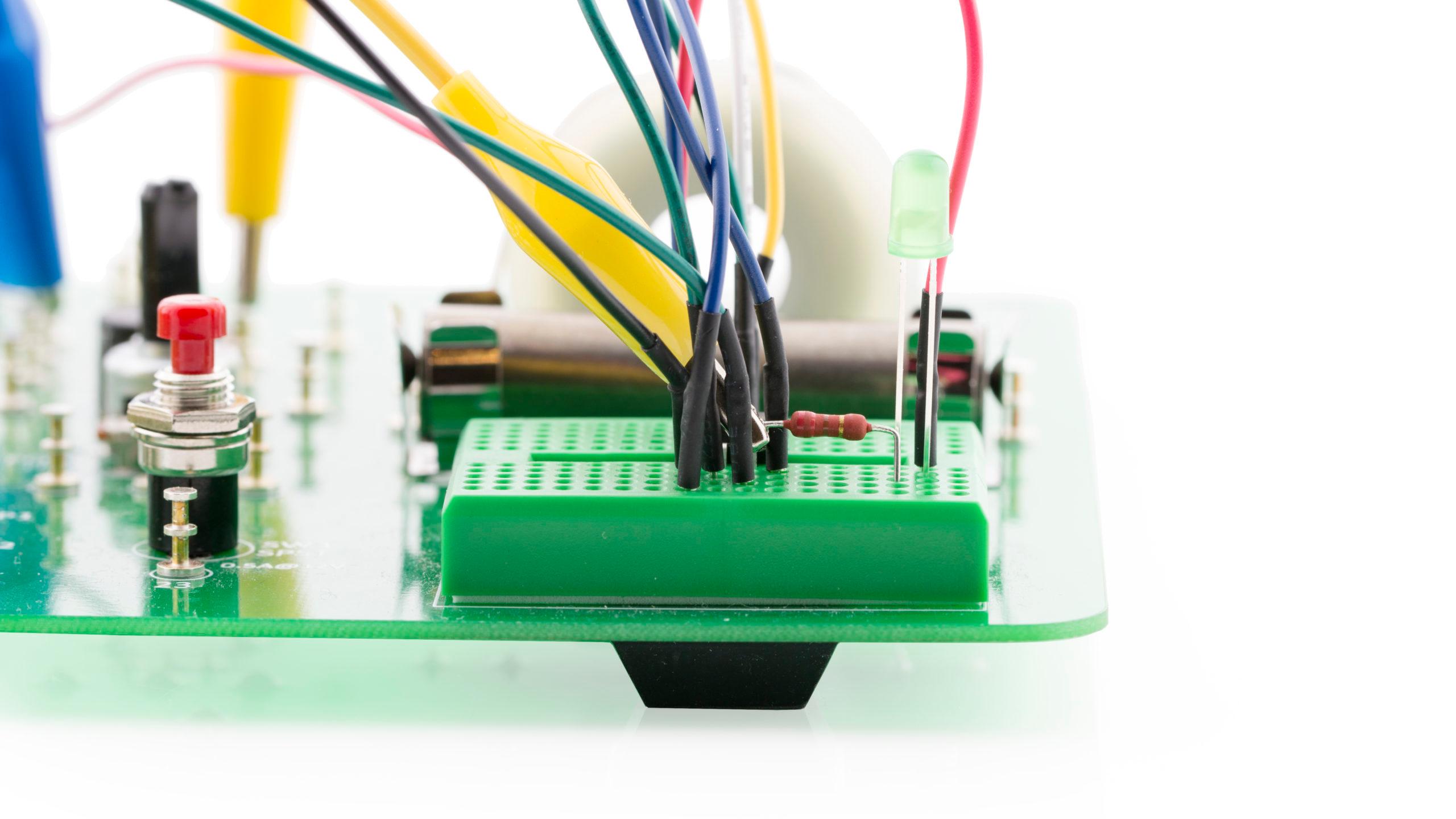

With this kit, you can create blinking LED circuits with the 555 timer, introduce students to transistors, or make a simple light-sensing circuit. Included wires connect to both the breadboard and the Vernier Circuit Board 2 components. Additional jumper wires for breadboard use only are also provided.

What's Included

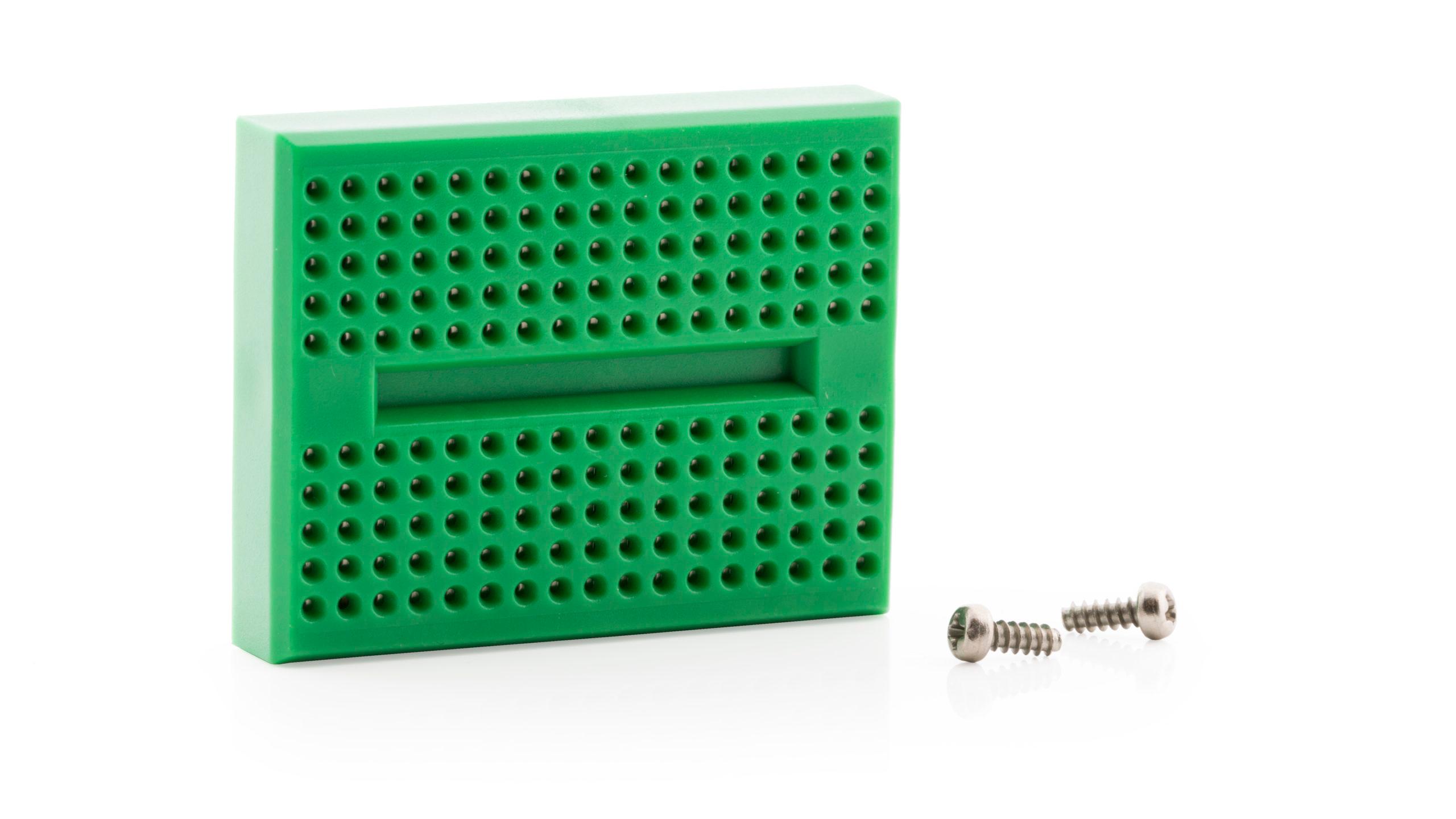

  • Green breadboard (3.5 cm x 4.5 cm)
  • Double-sided tape for mounting the breadboard to the Vernier Circuit Board 2
  • Small screws (2) for securely mounting the breadboard to the VCB2
  • Jumper wires, male-male (4)
  • Jumper wires, male-clip (6)
  • 220 Ω resistors (5)
  • Green LED
  • Blue LED
  • Red-Green-Blue tri-color LED (4-pin, single cathode)Download Datasheet
  • Transistor (NPN) has marking BC547 on flat sideDownload Datasheet
  • Transistor (PNP) has marking 2N 3906 on flat sideDownload Datasheet
  • PhotocellDownload Datasheet
  • 555 timer (8-pin DIP)Download Datasheet
