Go! Motion

Go! Motion

Starts at $139.00

Go! Motion is our motion detector that connects directly to a computer or Chromebook USB port—eliminating the need for an additional data-collection interface.

Save money when you purchase the Go! Motion Teacher Pack, which includes eight Go! Motion USB motion detectors.

ORDER CODE: N/A Categories ,
$139.00   Order Code: GO-MOT
$1,079.00   Order Code: GO-MOT-TP

Go! Motion is used to collect the position, velocity and acceleration data of moving objects. Go! Motion connects directly to a computer or Chromebook USB port making it fast and easy to set up experiments and start collecting a wide range of real-time motion data.

Go! Motion can track objects as close fifteen centimeters and as far away as six meters. The sensor also features reduced noise and temperature compensation to ensure accuracy.

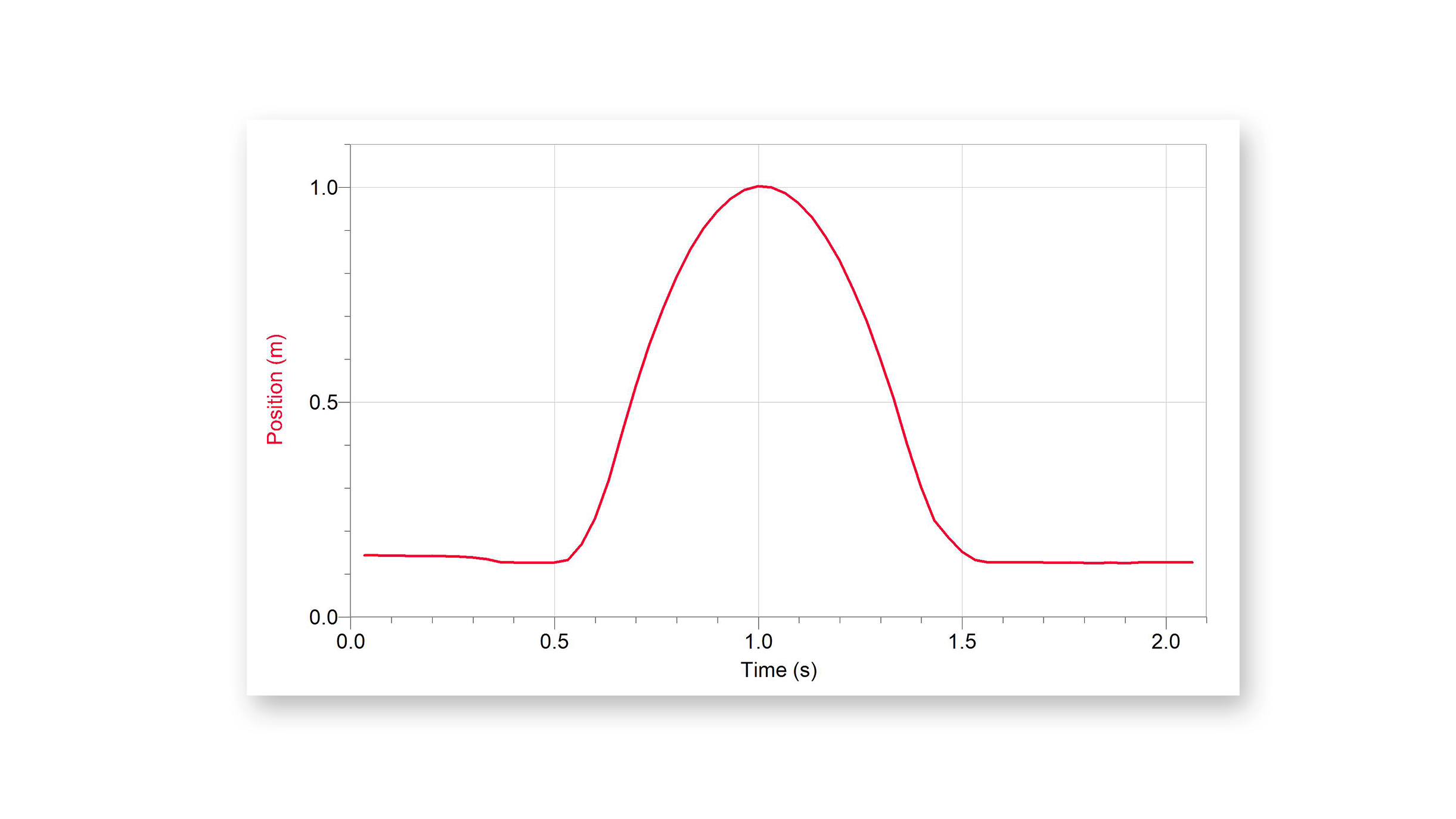

  • Analyze the motion of a ball, a cart on a ramp, or a pendulum
  • Adjust sensitivity to track the motion of objects close to Go! Motion or up to six meters away
  • Attach Go! Motion to a track like the one included in the Vernier Dynamics Cart and Track System to study velocity and acceleration

Versatile Data Collection Options

  • USB Port: Connects to a computer, Chromebook, or LabQuest 2. Go! Motion can also connect to a TI-84 Plus calculator or TI-Nspire handheld (requires a different USB cable).
  • Digital Sensor Port: LabQuest 2, LabQuest, LabQuest Mini, LabPro, CBL 2, and TI-Nspire Lab Cradle through the digital port (additional cable required)
  • TI Calculator I/O Port: Go! Motion can also connect directly to the I/O port of TI graphing calculators (requires a specialized cable).

Teacher Pack of 8 Go! Motions

Save money when you purchase the Go! Motion Teacher Pack, which includes eight Go! Motion USB motion detectors.

Specifications

  • Range: 0.15 to 6 m
  • Resolution: 1 mm
  • Temperature Compensation: Automatic
  • Accuracy: 2 mm
  • Ultrasound Frequency: 50 kHz
  • Power Consumption: 51 mA
  • Power Source: USB/DIG (Computers, LabQuest) or 4 AA batteries (Calculators)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support 1
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Full support 1

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
Computers
Software
InterfaceGraphical AnalysisLogger ProLogger Lite
No interface requiredFull supportFull supportFull support
LabQuest MiniFull support 1Full support 1Full support 1
LabQuest 3Full support 1Full support 1Incompatible 1
LabQuest 2 (discontinued)Full support 1Full support 1Full support 1
LabQuest Stream (discontinued)Full support 1 2Full support 1Full support 1 2
LabQuest (discontinued)Full support 1Full support 1Full support 1
LabPro (discontinued)IncompatibleFull support 1Full support 1

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis
No interface requiredFull support
LabQuest MiniFull support 1
LabQuest 3Full support 1
LabQuest 2 (discontinued)Full support 1
LabQuest Stream (discontinued)Full support 1 2
LabQuest (discontinued)Full support 1

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
iOS
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest Stream (discontinued)Full support 1Full support 1
LabQuest 3Full support 1 2Full support 1 2
LabQuest 2 (discontinued)Full support 1 2Full support 1 2

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest Stream (discontinued)Full support 1Full support 1
LabQuest 3Full support 1 2Full support 1 2
LabQuest 2 (discontinued)Full support 1 2Full support 1 2

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
LabVIEW
Software
InterfaceNI LabVIEW
No interface requiredFull support
SensorDAQ (discontinued)Full support 1
Vernier myDAQ AdapterFull support 1
LabQuest MiniFull support 1
LabQuest Stream (discontinued)Full support 1
LabQuest 3Full support 1
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Full support 1

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
Texas Instruments
Software
InterfaceEasyDataDataMateTI-84 SmartViewDataQuestTI-Nspire Software
No interface requiredFull support 1 2IncompatibleFull supportFull support 1Full support
CBL 2 (discontinued)Full support 3 4Full support 3 4 5IncompatibleIncompatibleIncompatible
LabPro (discontinued)Full support 3 4Full support 3 4 5IncompatibleIncompatibleIncompatible
TI-Nspire Lab Cradle (discontinued)IncompatibleIncompatibleIncompatibleFull support 4Full support 4

Compatibility Notes

  1. Requires a CBRâ„¢ 2 to TI Calculator USB cable or Go! to Easy adapter to work with a TI-84 Plus calculator or TI-Nspire handheld.
  2. Requires a CBRâ„¢ to TI Calculator IO cable to work with a TI-83 Plus calculator.
  3. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  4. Requires a Motion Detector Cable to connect to a DIG port on the interface
  5. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

Go! Motion

  • Vernier Go! Motion
  • USB cable

Go!Motion Teacher Pack

  • 8 Vernier Go! Motion
  • 8 USB cables

Accessories

AccessoryOrder CodePriceQuantity
Motion Detector ClampMD-CLAMP$15.00
Digital Extension CableEXT-BTD$12.00
Digital Sensor CableMDC-BTD$5.00
Go!Motion to Calculator Mini-USB portTI-GMUSB$7.00
Replacement PartOrder CodePriceQuantity
Go!Motion to Computer CableGMC-USB$5.00

Support

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
