LabQuest 3

$339.00

LabQuest® 3 is a powerful, advanced, easy-to-navigate, and versatile data-logging solution for STEM students.

Due to the worldwide parts shortages, we have limited quantities of LabQuest 3 units.

ORDER CODE: LABQ3 Category
The all-new LabQuest 3 is a standalone data-collection platform that students can use to collect, analyze, and interact with data efficiently. With its new capacitive touch screen, students can navigate the platform with ease, and because of its wireless capabilities, students can collect data anywhere with LabQuest 3.

  • Connects wirelessly to the entire family of Go Direct® sensors
  • Easy-to-use platform enables students to generate graphs and analyze results
  • An excellent choice for laboratories, classrooms, or in-the-field investigations

Key Features

  • Full-featured data-collection platform
  • Compatible with all Vernier sensors
  • Large, high-resolution color screen
  • Touch navigation utilizing gestures
  • Fast data collection with 100,000 samples per second
  • Rechargeable, high-capacity battery
  • Built-in GPS and microphone
  • Wireless connectivity with Wi-Fi and Bluetooth® wireless technology
  • Built-in apps include Calculator, Periodic Table, Sound Recorder, Stopwatch, and more
  • Student instructions for over 75 of our most popular experiments included

Connectivity to Chromebooks, Computers, iPad® tablets, and Mobile Devices

Students can share real-time data with multiple devices for a truly hands-on, collaborative learning experience. Use LabQuest 3 to transfer data wirelessly to computers, Chromebooks, or mobile devices running Graphical Analysisâ„¢.

USB Sensor Interface

If you want to use your own computer or Chromebook™ to collect data, use LabQuest 3 as a conduit between our LabQuest sensors and these devices. LabQuest 3 works as a USB sensor interface with our Logger Pro® software or Graphical Analysis app.

Specifications

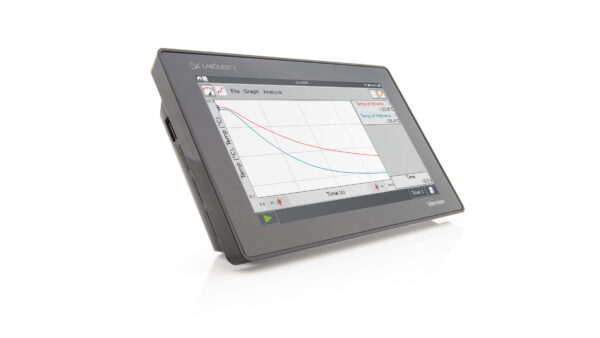

Display

  • 15.41 cm x 8.59 cm (17.64 cm diagonal) screen
  • LED backlight
  • Landscape screen orientation

Processor

  • 2 GHz Application Processor

Connectivity

  • Wi-Fi 802.11 b/g/n @ 2.4GHz
  • Bluetooth® wireless technology

Touch Interface

  • Capacitive touch screen
  • Touch navigation utilizing gestures, including the following. For a full list, see the user manual.
    • Single tap—Use a single tap to interact with most objects on the device.
    • Touch and drag—Use touch and drag to select regions on a graph or to scroll through menus.
    • Long Press—Use the long press to activate special functionality on some objects such as holding down the keyboard shift key to enable shift lock, or to initial a table selection.
    • Two-Finger Pinch/Zoom/Pan—Use this gesture to manually scale graphs or pan the data table.
    • Double tap—Double tap to scale the graph to fit the data or to edit elements of the data table such as cell data (when allowed), column name, or dataset name.
    • Single-finger swipe (from edges)—This gesture is used to change what app is displayed.

Data Acquisition

  • 100,000 samples per second
  • 12-bit resolution
  • Built-in GPS and microphone

Environmental Durability

  • Operating temperature: 0 – 45°C
  • Storage temperature: -30 – 60°C
  • Splash resistant
  • Rugged enclosure designed to withstand a fall from lab bench

Size and Weight

  • Size: 11.7 cm x 19.0 cm x 4.0 cm
  • Weight: 549 g

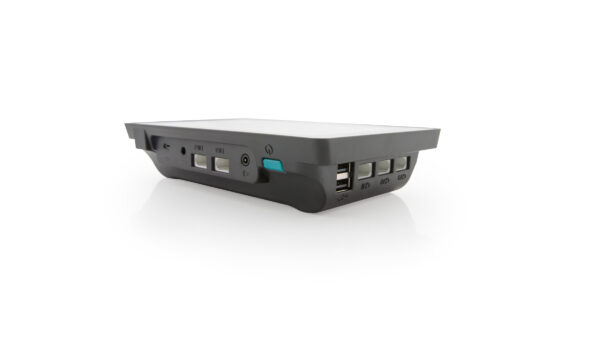

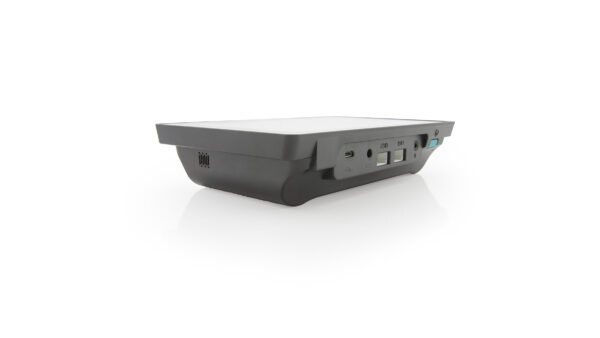

Ports

  • 3 analog ports
  • 2 digital ports
  • 2 full-size USB ports for sensors
  • Micro USB port for computer communication
  • Audio out
  • DC power port

Storage

  • 500 MB
  • Expandable with USB flash drive

Power

  • Rechargeable, high-capacity battery
  • DC charging/powering through external adapter (included)

What's Included

Accessories

AccessoryOrder CodePriceQuantity
LabQuest® Charge StationLQ3-CRG$129.00
LabQuest® 3 StandLQ3-STN$5.00
LabQuest® 3 LanyardLQ3-LAN$9.00
Micro USB to USB-C CableCB-USB-C-MICRO$9.00
LabQuest® Battery Boost 3LQ-BOOST3$119.00
LabQuest® 3 Power SupplyLQ3-PS$14.00
Replacement PartOrder CodePriceQuantity
LabQuest® 3 BatteryLQ3-BAT$34.00
LabQuest® 3 Power SupplyLQ3-PS$14.00
Micro USB CableCB-USB-MICRO$5.00

Software

Analysis Features

  • Perform linear and curve fits
  • Draw a prediction before collecting data
  • Display two graphs at once
  • Display a tangent line on the graph
  • Display integral functions
  • Analyze statistics
  • Perform FFT analysis

Built-In Applications

  • Stopwatch
  • Periodic Table
  • Sound Recorder (for voice annotation)
  • Scientific Calculator
  • Audio Function Generator
  • Power Amplifier (requires Vernier Power Amplifier)

Versatile Tools and Resources

  • More than 75 preloaded lab instructions from our popular lab books
  • Notes field
  • Email screenshots and data files for use in lab reports or submit directly to an instructor
  • Export data to Logger Pro, Excel®, and other data analysis software
  • Stream data wirelessly to computers, Chromebooks, and mobile devices running our Graphical Analysis app.

USB Interface Compatibility

You can also use LabQuest 3 as a computer interface using the Graphical Analysis 4 app or Logger Pro 3 software.

Graphical Analysis App for Computers and Chromebooks

Collect and analyze sensor ‭data with our free Graphical Analysis app ‭for Chrome‭™‭, ‭Windows®, macOS®‭, iOS‭®‭, and Android‭™‭. Use LabQuest 3 as a USB sensor interface on a computer or Chromebook.

Learn more about Graphical Analysis 4

Logger Pro 3 Software for Computers

Our award-winning Logger Pro 3 software provides advanced analytical features including video analysis. One copy of Logger Pro includes a site license for all computers in your school or your college department, as well as students’ personal computers.

Learn more about Logger Pro 3

Compatible Sensors

LabQuest and LabQuest App (144 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Requires a Motion Detector USB Cable or an Easy to Go! Adapter to connect to a standard USB port
  3. Requires a BNC electrode
  4. Connect this sensor via Bluetooth® for best results.
  5. Requires an Easy to Go! adapter
  6. Connect this sensor via USB. Wireless data collection is not supported.
  7. Requires a OHAUS Scout® USB cable
  8. Sensor does not auto-ID; manual setup is required.
  9. Requires a Gas Pressure Sensor
  10. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
Computers and Graphical Analysis App for Computers (141 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Full support of this sensor is only available when LabQuest 2 or LabQuest 3 is connected to a computer or Chromebook via Wireless Data Sharing. This sensor is not supported when used with a LabQuest connected via USB to a computer or Chromebook.
  3. Requires a BNC electrode
  4. Requires an Easy to Go! adapter
  5. Connect this sensor directly to a computer or Chromebook via USB for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  6. Full support of this sensor is only available when LabQuest 2 or LabQuest 3 is connected to a computer or Chromebook via Wireless Data Sharing. The software does not support this sensor when connected to a computer or Chromebook via USB.
  7. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  8. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  9. Software does not support the Data Tagging feature that is typically used with this sensor.
  10. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  11. Connect this sensor via Bluetooth® for best results.
  12. Requires a Heart Rate Receiver to connect to an interface
  13. Full support of this sensor is only available when LabQuest 2 or LabQuest 3 is connected to a computer or Chromebook via Wireless Data Sharing.
  14. Requires a OHAUS Scout® USB cable
  15. Requires an additional signal source, such as LabQuest running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  16. Sensor does not auto-ID; manual setup is required.
  17. Requires a Gas Pressure Sensor
  18. Software does not support baseline adjustment.
  19. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
  20. This interface/software combination can only collect force data; displacement measurements are not supported.
  21. Connect this sensor directly to a computer or Chromebook via a USB connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
Computers and Logger Pro (81 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Requires a BNC electrode
  3. Requires a Heart Rate Receiver to connect to an interface
  4. Requires an additional signal source, such as LabQuest running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  5. Sensor does not auto-ID; manual setup is required.
  6. Requires a Gas Pressure Sensor
  7. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
Computers and Logger Lite (69 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Requires a BNC electrode
  3. Requires a Heart Rate Receiver to connect to an interface
  4. Requires an additional signal source, such as LabQuest running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  5. Requires a Gas Pressure Sensor
  6. Software does not support baseline adjustment.
  7. This interface/software combination auto IDs the VSMT Force sensor; displacement measurements require a Logger Lite file found at www.vernier.com/til/3621/
Chromebook and Graphical Analysis App for Chrome (141 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Full support of this sensor is only available when LabQuest 2 or LabQuest 3 is connected to a computer or Chromebook via Wireless Data Sharing. This sensor is not supported when used with a LabQuest connected via USB to a computer or Chromebook.
  3. Requires a BNC electrode
  4. Requires an Easy to Go! adapter
  5. Connect this sensor directly to a computer or Chromebook via USB for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  6. Full support of this sensor is only available when LabQuest 2 or LabQuest 3 is connected to a computer or Chromebook via Wireless Data Sharing. The software does not support this sensor when connected to a computer or Chromebook via USB.
  7. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  8. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  9. Software does not support the Data Tagging feature that is typically used with this sensor.
  10. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  11. Connect this sensor via Bluetooth® for best results.
  12. Requires a Heart Rate Receiver to connect to an interface
  13. Full support of this sensor is only available when LabQuest 2 or LabQuest 3 is connected to a computer or Chromebook via Wireless Data Sharing.
  14. Requires a OHAUS Scout® USB cable
  15. Requires an additional signal source, such as LabQuest running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  16. Sensor does not auto-ID; manual setup is required.
  17. Requires a Gas Pressure Sensor
  18. Software does not support baseline adjustment.
  19. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
  20. This interface/software combination can only collect force data; displacement measurements are not supported.
  21. Connect this sensor directly to a computer or Chromebook via a USB connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
iOS and Graphical Analysis App for iOS (141 sensors)

Supported Sensors

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  2. Requires a Motion Detector Cable to connect to a DIG port on the interface
  3. Requires a Motion Detector USB Cable or an Easy to Go! Adapter to connect to a standard USB port
  4. Requires a BNC electrode
  5. Requires an Easy to Go! adapter
  6. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  7. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  8. Software does not support the Data Tagging feature that is typically used with this sensor.
  9. Connect this sensor directly to an iOS or Android™ device via wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to an iOS or Android device via Wireless Data Sharing.
  10. Connect this sensor via Bluetooth® for best results.
  11. Requires a OHAUS Scout® USB cable
  12. Sensor does not auto-ID; manual setup is required.
  13. Requires a Gas Pressure Sensor
  14. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
iOS and Graphical Analysis GW for iOS (141 sensors)

Supported Sensors

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  2. Requires a Motion Detector USB Cable or an Easy to Go! Adapter to connect to a standard USB port
  3. Requires a Motion Detector Cable to connect to a DIG port on the interface
  4. Requires a BNC electrode
  5. Connect this sensor via Bluetooth® for best results.
  6. Requires an Easy to Go! adapter
  7. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  8. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  9. Software does not support the Data Tagging feature that is typically used with this sensor.
  10. Connect this sensor directly to an iOS or Android™ device via wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to an iOS or Android device via Wireless Data Sharing.
  11. Requires a OHAUS Scout® USB cable
  12. Sensor does not auto-ID; manual setup is required.
  13. Requires a Gas Pressure Sensor
  14. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
Android and Graphical Analysis App for Android (141 sensors)

Supported Sensors

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  2. Requires a Motion Detector Cable to connect to a DIG port on the interface
  3. Requires a Motion Detector USB Cable or an Easy to Go! Adapter to connect to a standard USB port
  4. Requires a BNC electrode
  5. Requires an Easy to Go! adapter
  6. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  7. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  8. Software does not support the Data Tagging feature that is typically used with this sensor.
  9. Connect this sensor directly to an iOS or Android™ device via wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to an iOS or Android device via Wireless Data Sharing.
  10. Connect this sensor via Bluetooth® for best results.
  11. Requires a OHAUS Scout® USB cable
  12. Sensor does not auto-ID; manual setup is required.
  13. Requires a Gas Pressure Sensor
  14. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
Android and Graphical Analysis GW for Android (141 sensors)

Supported Sensors

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  2. Requires a Motion Detector USB Cable or an Easy to Go! Adapter to connect to a standard USB port
  3. Requires a Motion Detector Cable to connect to a DIG port on the interface
  4. Requires a BNC electrode
  5. Connect this sensor via Bluetooth® for best results.
  6. Requires an Easy to Go! adapter
  7. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  8. Connect this sensor directly to an iOS or Android™ device via wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to an iOS or Android device via Wireless Data Sharing.
  9. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  10. Requires a OHAUS Scout® USB cable
  11. Sensor does not auto-ID; manual setup is required.
  12. Requires a Gas Pressure Sensor
  13. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
NI LabVIEW (76 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Requires advanced programming for data collection
  3. Requires a Heart Rate Receiver to connect to an interface
  4. Requires an additional signal source, such as LabQuest running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output

Support

Resources

Warranty

5-year limited warranty (1 year on battery)
See our warranty policy

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.

SAVE/SHARE YOUR CART
