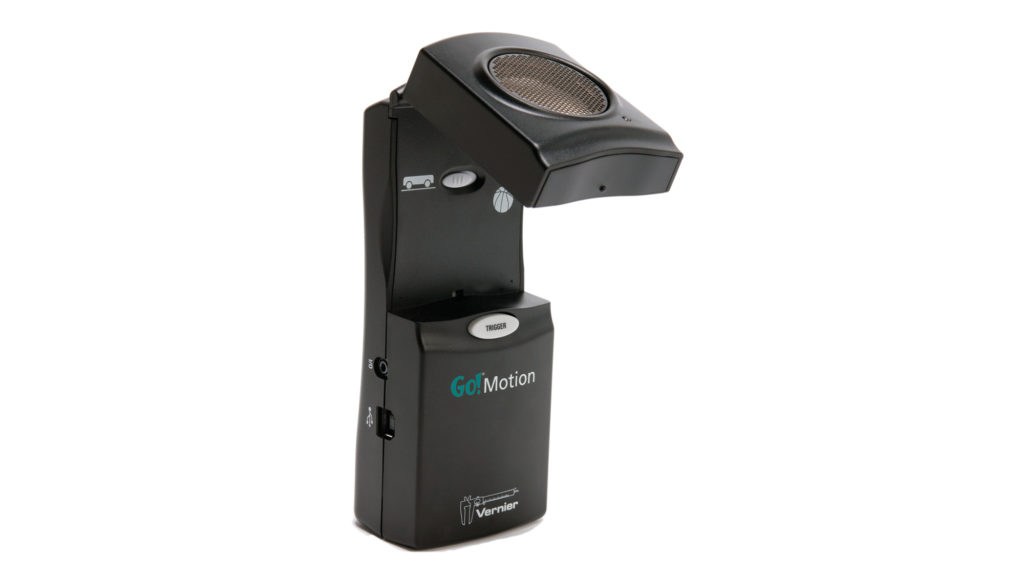

• Go! Motion detector
• USB cable

Choose a platform below to see its compatibility requirements.

LabQuest

Interface	LabQuest App
LabQuest 3	Full support 1
LabQuest 2 (discontinued)	Full support 1
LabQuest (discontinued)	Full support 1

Compatibility Notes

1. Requires a Motion Detector Cable to connect to a DIG port on the interface

Computers

	Software
Interface	Graphical Analysis	Logger Pro	Logger Lite
No interface required	Full support	Full support	Full support
LabQuest Mini	Full support 1	Full support 1	Full support 1
LabQuest 3	Full support 1	Full support 1	Incompatible 1
LabQuest 2 (discontinued)	Full support 1	Full support 1	Full support 1
LabQuest Stream (discontinued)	Full support 1 2	Full support 1	Full support 1 2
LabQuest (discontinued)	Full support 1	Full support 1	Full support 1
LabPro (discontinued)	Incompatible	Full support 1	Full support 1

Compatibility Notes

1. Requires a Motion Detector Cable to connect to a DIG port on the interface
2. Connect LabQuest Stream via USB. Wireless connection is not supported.

Chromebook

	Software
Interface	Graphical Analysis
No interface required	Full support
LabQuest Mini	Full support 1
LabQuest 3	Full support 1
LabQuest 2 (discontinued)	Full support 1
LabQuest Stream (discontinued)	Full support 1 2
LabQuest (discontinued)	Full support 1

Compatibility Notes

1. Requires a Motion Detector Cable to connect to a DIG port on the interface
2. Connect LabQuest Stream via USB. Wireless connection is not supported.

iOS

	Software
Interface	Graphical Analysis	Graphical Analysis GW
LabQuest Stream (discontinued)	Full support 1	Full support 1
LabQuest 3	Full support 1 2	Full support 1 2
LabQuest 2 (discontinued)	Full support 1 2	Full support 1 2

Compatibility Notes

1. Requires a Motion Detector Cable to connect to a DIG port on the interface
2. iOS and Android^™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.

Android

	Software
Interface	Graphical Analysis	Graphical Analysis GW
LabQuest Stream (discontinued)	Full support 1	Full support 1
LabQuest 3	Full support 1 2	Full support 1 2
LabQuest 2 (discontinued)	Full support 1 2	Full support 1 2

Compatibility Notes

1. Requires a Motion Detector Cable to connect to a DIG port on the interface
2. iOS and Android^™ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.

Arduino

	Software
Interface	Arduino
Vernier Arduino® Interface Shield	Full support 1

Compatibility Notes

1. Requires a Motion Detector Cable to connect to a DIG port on the interface

LabVIEW

	Software
Interface	NI LabVIEW
No interface required	Full support
SensorDAQ (discontinued)	Full support 1
Vernier myDAQ Adapter	Full support 1
LabQuest Mini	Full support 1
LabQuest Stream (discontinued)	Full support 1
LabQuest 3	Full support 1
LabQuest 2 (discontinued)	Full support 1
LabQuest (discontinued)	Full support 1

Compatibility Notes

1. Requires a Motion Detector Cable to connect to a DIG port on the interface

Texas Instruments

	Software
Interface	EasyData	DataMate	TI-84 SmartView	DataQuest	TI-Nspire Software
No interface required	Full support 1 2	Incompatible	Full support	Full support 1	Full support
CBL 2 (discontinued)	Full support 3 4	Full support 3 4 5	Incompatible	Incompatible	Incompatible
LabPro (discontinued)	Full support 3 4	Full support 3 4 5	Incompatible	Incompatible	Incompatible
TI-Nspire Lab Cradle (discontinued)	Incompatible	Incompatible	Incompatible	Full support 4	Full support 4

Compatibility Notes

1. Requires a CBR™ 2 to TI Calculator USB cable or Go! to Easy adapter to work with a TI-84 Plus calculator or TI-Nspire handheld.
2. Requires a CBR™ to TI Calculator IO cable to work with a TI-83 Plus calculator.
3. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
4. Requires a Motion Detector Cable to connect to a DIG port on the interface
5. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

1. Connect the sensor directly to the USB port of the computer.
2. Start the appropriate data-collection software (Vernier Graphical Analysis^®, LabQuest^® App, or Logger Pro™) if not already running, and choose New from File menu.
3. Choose New or New Experiment from the file menu. If you are running Graphical Analysis in a browser, click or tap Sensor Data Collection, then choose USB. Click or tap the option that matches your interface (e.g. LabQuest), highlight your interface in the list of devices, click or tap Connect, then click or tap Done.)

The software will identify the sensor and load a default data-collection setup. You are now ready to continue your experiment.

For additional information, see

www.vernier.com/start/go-mot

Connect the sensor following the steps in the Getting Started section of this user manual.

Here are some suggestions for getting good results with Go! Motion:

• Go! Motion is capable of measuring objects as close as 0.15 m and as far away as 6 m. The short minimum target distance allows objects to get close to the detector, which reduces stray reflections.
• Go! Motion has a pivoting head, which helps you aim the sensor accurately. For example, if you wanted to measure the motion of a small toy car on an inclined plane, you can lay the Motion Detector on its back and pivot the Motion Detector head so that it is perpendicular to the plane.

• Go! Motion has a Sensitivity Switch, which is located under the pivoting Go! Motion head. To access it, simply rotate the detector head away from the detector body.
  • Slide the Sensitivity Switch to the right to set the switch to the Ball/Walk setting. This setting is best used for experiments such as studying the motion of a person walking toward and away from Go! Motion, a ball being tossed in the air, pendulum motion, and any other motion involving relatively large distances or with objects that are poor reflectors (e.g., coffee filters).
  • The other sensitivity setting, which we call Cart, works well when studying motion of carts on tracks like the Vernier Dynamics Cart and Track System, or motions in which you want to eliminate stray reflections from objects near to the sensor beam.

You cannot perform a traditional two-point calibration of Go! Motion. In most cases, calibration is unnecessary. You can make several adjustments to the readings by zeroing and changing the direction of the coordinate system. You can find details on how to adjust Go! Motion readings at www.vernier.com/til/2972

Range	0.15 to 6 m
Resolution	1 mm
Temperature compensation	Automatic
Accuracy	2 mm
Ultrasound frequency	50 kHz
Power consumption	51 mA
Power source	USB/DIG (Computers, LabQuest) or 4 AA batteries (Calculators)

Go! Motion emits short bursts of ultrasonic sound waves from the gold foil of the transducer. These waves fill a cone-shaped area about 15 to 20° off the axis of the center line of the beam. Go! Motion then “listens” for the echo of these ultrasonic waves returning to it. The equipment measures how long it takes for the ultrasonic waves to make the trip from Go! Motion to an object and back. Using this time and the speed of sound in air, the distance to the nearest object is determined.

Note that Go! Motion will report the distance to the closest object that produces a sufficiently strong echo. Go! Motion can pick up objects such as chairs and tables in the cone of ultrasound.

The sensitivity of the echo detection circuitry automatically increases, in steps, every few milliseconds as the ultrasound travels out and back. This change in sensitivity enables the detection of weaker signals.

The most frequently reported problems with a motion detector are that the motion does not work beyond a certain distance or that the graph is very noisy. There are a number of ways to troubleshoot these situations, and they are described below.

1. See if the Sensitivity Switch makes a difference. Simply set the Sensitivity Switch to the other position and retry the experiment. This change may solve the problem.
2. If Go! Motion does not work beyond a certain distance (e.g., it does not detect anything beyond 1.2 m), here are some things to check if you have this problem:
   • Check for movable objects (textbooks, ring stands, etc.) in the cone of the ultrasound. If possible, move these objects out of the measurement cone. It may not take a very large object to cause problems.
   • Check for a stationary object (chair, table, etc.) in the cone of the ultrasound. This object may be detected when you are trying to study an object farther away. It may not take a very large object to cause problems. If you have trouble with a stationary object causing unwanted echoes, try setting the equipment up so that the objects are not in the cone or placing a cloth over the object. This minimizes the ultrasound reflection.
   • Also note that the cone of ultrasound extends downward from the center line. This can cause problems if you are using Go! Motion on a hard, horizontal surface. In these cases, try pivoting the head of Go! Motion to aim it slightly upward.

3. Noisy or erratic data may have a number of causes. Here are some tips.
   • Sometimes other sound sources can cause problems. If there is another source of ultrasonic waves in the same frequency range, this will cause erroneous readings. Examples include motors and fans, air track blowers, the sound made by the air exiting the holes on an air track, etc. Try to eliminate these sources of noise. If you are using an air track, try changing the air flow volume.
   • Make sure that Go! Motion is not placed close to a computer or computer monitor.
   • If the room in which Go! Motion is being used has a lot of hard, sound‑reflecting surfaces, you can get strange effects caused by the ultrasound bouncing around the room. Standing waves can be set up between Go! Motion and a sound reflector. Try placing a cloth horizontally just in front of and below the Motion Detector. This sometimes helps eliminate ultrasound that is “skipping” into Go! Motion.
   • Try changing the data-collection rate. Sometimes motion detectors work better at one data rate than another. Rates above 30 Hz do not work well in acoustically live rooms.
   • If you are studying people moving, have them hold a large, flat object (e.g., a large book or a pizza box) as a reflector. If you have an irregular reflecting surface, sometimes the waves will be reflected back to the transducer, and sometimes not. The results will seem erratic.

An excellent discussion of motion detector theory and operation can be found in “Physics and Technical Characteristics of Ultrasonic Sonar Systems”, Dan MacIsaac and Ari Hamalainen, The Physics Teacher 40, 39–46 (January 2002).

For additional troubleshooting tips and FAQs, see www.vernier.com/til/2115

If you have watched the related product video(s), followed the troubleshooting steps, and are still having trouble with your Go! Motion, contact Vernier Technical Support at support@vernier.com or call 888-837-6437. Support specialists will work with you to determine if the unit needs to be sent in for repair. At that time, a Return Merchandise Authorization (RMA) number will be issued and instructions will be communicated on how to return the unit for repair.

Item	Order Code
Motion Detector Clamp	MD-CLAMP
Digital Sensor Cable	MDC-BTD
Digital Extension Cable	EXT-BTD
Go! Motion to Calculator Mini-USB Port	TI-GMUSB
Replacement Go! Motion to Computer Cable	GMC-USB
