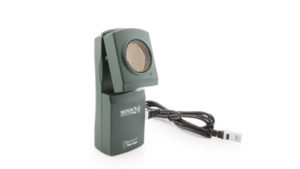

CBR 2

CBR 2

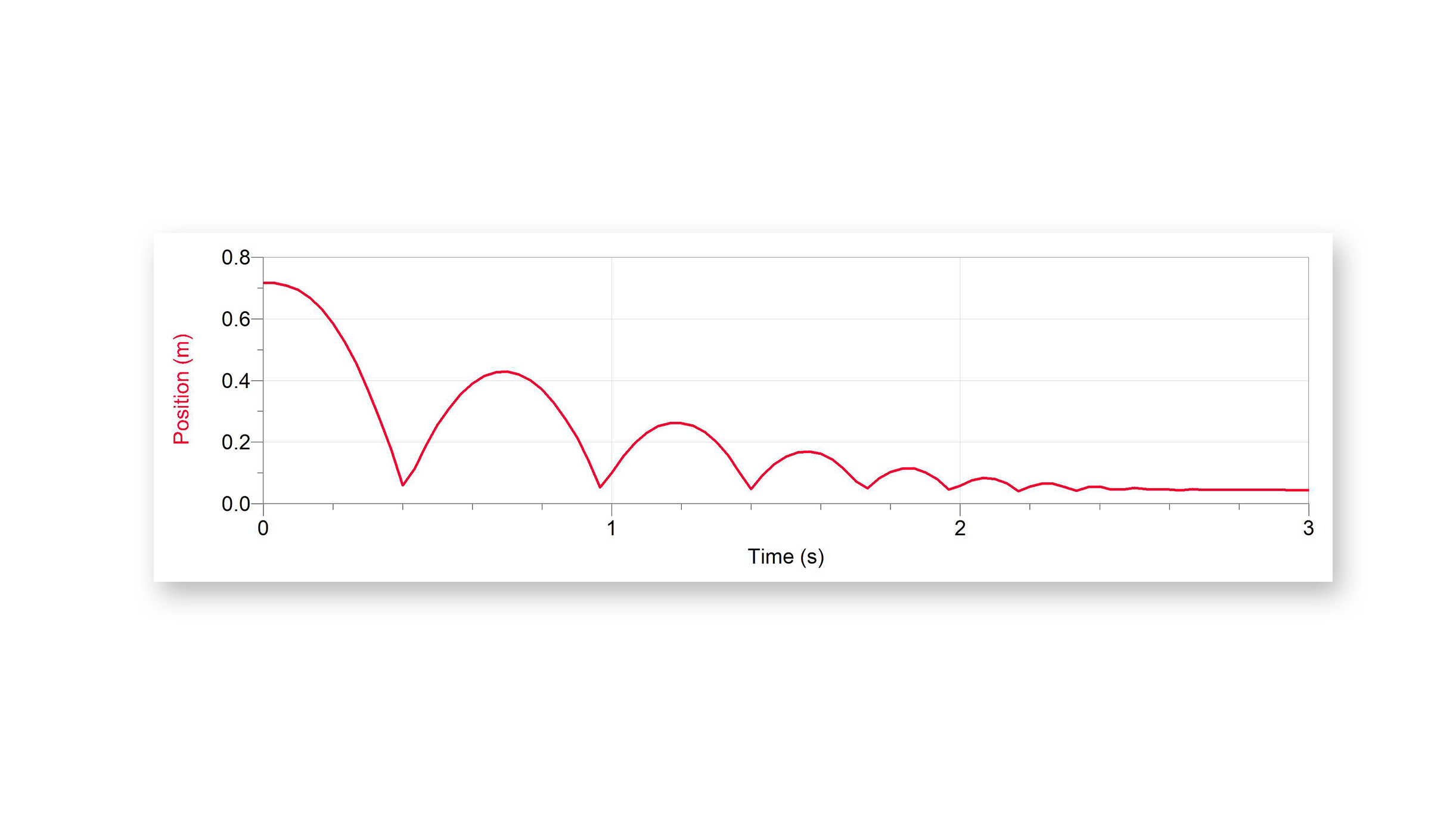

Graph of the height reached by a bouncing ball

Graph of the height reached by a bouncing ball

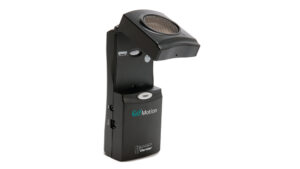

CBR 2

$109.00

The CBR 2 motion detector connects directly to a Texas Instruments graphing calculator—eliminating the need for an additional data-collection interface.

ORDER CODE: CBR2 Categories ,
Subjects

Experiments

High School (16 experiments)
ExperimentLab Book
That's the Way the Ball Bounces - Height and Time for a Bouncing BallReal-World Math with Vernier
Walk This Way - Definition of RateReal-World Math with Vernier
Velocity Test - Interpreting GraphsReal-World Math with Vernier
From Here to There - Applications of the Distance FormulaReal-World Math with Vernier
Bounce Back - The Pattern of Rebound HeightsReal-World Math with Vernier
Walk the Line - Straight Line Distance GraphsReal-World Math with Vernier
Swinging Ellipses - Plotting an EllipseReal-World Math with Vernier
Tic, Toc: Pendulum MotionReal-World Math with Vernier
Up And Down: Damped Harmonic MotionReal-World Math with Vernier
How Tall? Describing Data with Statistical PlotsReal-World Math with Vernier
Meet You at the Intersection: Solving a System of Linear EquationsReal-World Math with Vernier
Clock Design: Period and Length of a Simple PendulumReal-World Math with Vernier
Graph It in Pieces: Piecewise Defined FunctionsReal-World Math with Vernier
Stepping to the Greatest Integer: The Greatest Integer FunctionReal-World Math with Vernier
Crawling Around: Parametric PlotsReal-World Math with Vernier
What Goes Up - Position and Time for a Cart on a RampReal-World Math with Vernier

Requirements

TI Handhelds

CBR 2 works with the following TI graphing calculators:

  • USB Port: All models of TI-84 calculators (Plus, Silver Edition, Plus C Silver Edition, and CE) and all models of TI-Nspire and TI-Nspire CAS handhelds (clickpad, touchpad, CX, and CX II)
  • TI Calculator I/O Port: TI-73 Explorer, TI-82, TI-83, TI-83 Plus, TI-83 Plus Silver Edition, TI-84 Plus, TI-84 Plus Silver Edition, TI-84 Plus C Silver Edition, TI-86, TI-89, TI-89 Titanium, TI-92, TI-92 Plus, and TI Voyage 200 calculators

Texas Instruments Computer Software

CBR 2 works with the following computer software from Texas Instruments (requires a different USB cable):

* Older versions of the TI SmartView software require a TI Connectivity Cable for data collection with the CBR 2.

Data-Collection Interfaces

CBR 2 can also connect to an interface for data collection with other sensors. (Requires additional cable)

Data-Collection Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support 1 2
LabQuest 2 (discontinued)Full support 1 2
LabQuest (discontinued)Full support 1 2

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Requires a Motion Detector USB Cable or an Easy to Go! Adapter to connect to a standard USB port
Computers
Software
InterfaceGraphical Analysis App for ComputersLogger ProLogger Lite
No interface requiredFull support 1Full support 1Full support 1
LabQuest MiniFull support 2Full support 2Full support 2
LabQuest 3Full support 2Full support 2Incompatible 2
LabQuest 2 (discontinued)Full support 2Full support 2Full support 2
LabQuest Stream (discontinued)Full support 2 3Full support 2Full support 2 3
LabQuest (discontinued)Full support 2Full support 2Full support 2
LabPro (discontinued)IncompatibleFull support 2Full support 2

Compatibility Notes

  1. Requires a Motion Detector USB Cable or an Easy to Go! Adapter to connect to a standard USB port
  2. Requires a Motion Detector Cable to connect to a DIG port on the interface
  3. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis App for Chrome
No interface requiredFull support 1
LabQuest MiniFull support 2
LabQuest 3Full support 2
LabQuest 2 (discontinued)Full support 2
LabQuest Stream (discontinued)Full support 2 3
LabQuest (discontinued)Full support 2

Compatibility Notes

  1. Requires a Motion Detector USB Cable or an Easy to Go! Adapter to connect to a standard USB port
  2. Requires a Motion Detector Cable to connect to a DIG port on the interface
  3. Connect LabQuest Stream via USB. Wireless connection is not supported.
iOS
Software
InterfaceGraphical Analysis App for iOSGraphical Analysis GW for iOS
LabQuest Stream (discontinued)Full support 1Full support 1
LabQuest 3Full support 1 2 3Full support 1 2 3
LabQuest 2 (discontinued)Full support 1 2 3Full support 1 2 3

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  3. Requires a Motion Detector USB Cable or an Easy to Go! Adapter to connect to a standard USB port
Android
Software
InterfaceGraphical Analysis App for AndroidGraphical Analysis GW for Android
LabQuest Stream (discontinued)Full support 1Full support 1
LabQuest 3Full support 1 2 3Full support 1 2 3
LabQuest 2 (discontinued)Full support 1 2 3Full support 1 2 3

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  3. Requires a Motion Detector USB Cable or an Easy to Go! Adapter to connect to a standard USB port
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQ (discontinued)Full support 1
Vernier myDAQ AdapterFull support 1
LabQuest MiniFull support 1
LabQuest Stream (discontinued)Full support 1
LabQuest 3Full support 1
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Full support 1

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
Texas Instruments
Software
InterfaceEasyDataDataMateTI-84 SmartViewDataQuestTI-Nspire Software
No interface requiredFull supportIncompatibleFull support 1Full supportFull support 1
CBL 2 (discontinued)Full support 2 3Full support 2 3 4IncompatibleIncompatibleIncompatible
LabPro (discontinued)Full support 2 3Full support 2 3 4IncompatibleIncompatibleIncompatible
TI-Nspire Lab Cradle (discontinued)IncompatibleIncompatibleIncompatibleFull support 3Full support 3

Compatibility Notes

  1. Requires a Motion Detector USB Cable or an Easy to Go! Adapter to connect to a standard USB port
  2. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  3. Requires a Motion Detector Cable to connect to a DIG port on the interface
  4. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

Accessories

AccessoryOrder CodePriceQuantity
Motion Detector ClampMD-CLAMP$15.00
Digital Sensor CableMDC-BTD$5.00
Go!Motion to Computer CableGMC-USB$5.00
Replacement PartOrder CodePriceQuantity
Go!Motion to Calculator Mini-USB portTI-GMUSB$7.00

Support

Resources

Search FAQs for CBR 2

Warranty

1-year limited warranty from Texas Instruments
