LabQuest Mini

LabQuest Mini

LabQuest Mini (Model 2)

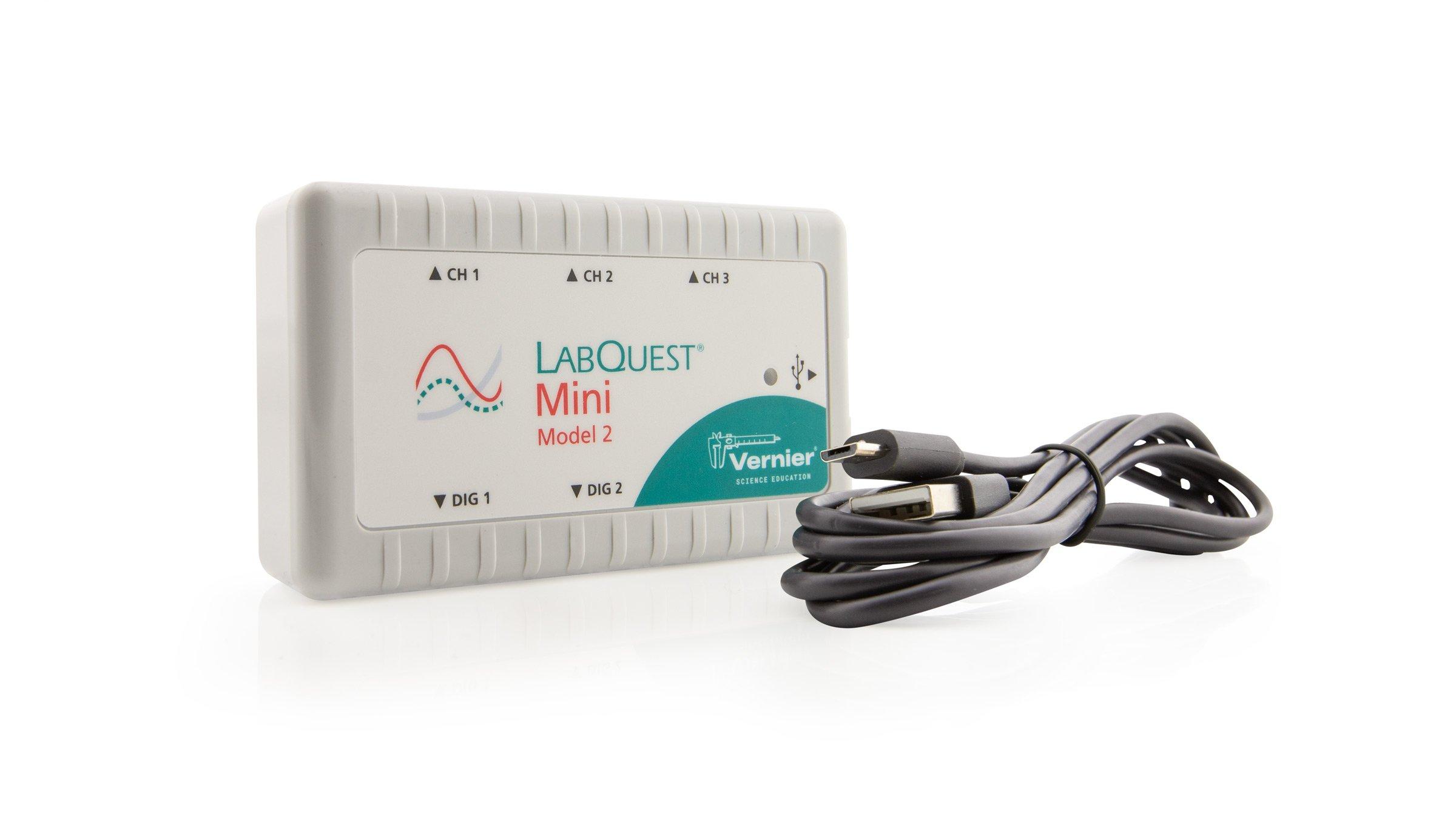

LabQuest Mini (Model 2) with cable

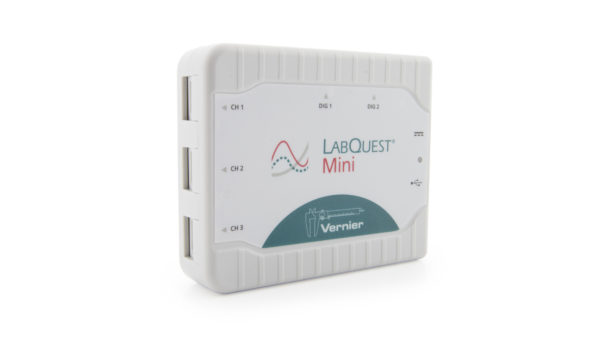

LabQuest Mini

$189.00

LabQuest Mini (Model 2) is a powerful, affordable, and easy-to-use sensor interface for data collection on a computer or a Chromebook.

ORDER CODE: LQ-MINI Category
Education Levels
Categories

LabQuest Mini (Model 2) brings the power of our award-winning LabQuest technology to teachers who don’t need the versatility of a standalone device. The perfect solution for educators collecting data with a Windows or Macintosh computer or a Chromebook, LabQuest Mini works with Graphical Analysis or Logger Pro 3 software for unparalleled power, analysis, and curricular support.

Key Features

  • 100 kHz maximum sampling rate gives you the unrivaled power of our LabQuest 3 interface.
  • Five sensor ports give you the flexibility to choose from over 70 compatible sensors.

Awards

“Vernier has produced an excellent product that will serve many classroom environments well. The LabQuest Mini is an incredibly easy-to-use device, and its plug-and-play nature reduces the headache of setup inherent in many data-collection products. Students of all ages will have no difficulty using the device. …”
Tech & Learning Magazine

Specifications

  • Computer connection: USB 2.0 Full Speed
  • Maximum sampling rate: 100,000 samples per second
  • Analog inputs: 3
  • Digital inputs: 2
  • Power is supplied by the USB port of the computer—no batteries or external power supply is required

What's Included

  • Vernier LabQuest Mini (Model 2) interface
  • Computer connection cable (USB-A to USB Micro)
  • Quick Start Guide

Accessories

These accessories and replacement parts do not work with the Original LabQuest Mini.

AccessoryOrder CodePriceQuantity
Micro USB to USB-C CableCB-USB-C-MICRO$9.00
Replacement PartOrder CodePriceQuantity
Micro USB CableCB-USB-MICRO$5.00

Software

Windows

macOS

Chromebook

Other Platforms

Compatible Sensors

Computers and Graphical Analysis (76 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Requires a BNC electrode
  3. Requires a Heart Rate Receiver to connect to an interface
  4. Connect this sensor via Bluetooth® for best results.
  5. The Data Tagging feature typically used with this sensor is not available in the free version of Graphical Analysis; Graphical Analysis Pro activation is required.
  6. Requires an additional signal source, such as LabQuest running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  7. Software does not support baseline adjustment.
  8. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
  9. This interface/software combination can only collect force data; displacement measurements are not supported.
Computers and Logger Pro (81 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Requires a BNC electrode
  3. Requires a Heart Rate Receiver to connect to an interface
  4. Requires an additional signal source, such as LabQuest running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  5. Sensor does not auto-ID; manual setup is required.
  6. Requires a Gas Pressure Sensor
  7. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
Computers and Logger Lite (69 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Requires a BNC electrode
  3. Requires a Heart Rate Receiver to connect to an interface
  4. Requires an additional signal source, such as LabQuest running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  5. Requires a Gas Pressure Sensor
  6. Software does not support baseline adjustment.
  7. This interface/software combination auto IDs the VSMT Force sensor; displacement measurements require a Logger Lite file found at www.vernier.com/til/3621/
Chromebook and Graphical Analysis (76 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Requires a BNC electrode
  3. Requires a Heart Rate Receiver to connect to an interface
  4. Connect this sensor via Bluetooth® for best results.
  5. The Data Tagging feature typically used with this sensor is not available in the free version of Graphical Analysis; Graphical Analysis Pro activation is required.
  6. Requires an additional signal source, such as LabQuest running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  7. Software does not support baseline adjustment.
  8. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
  9. This interface/software combination can only collect force data; displacement measurements are not supported.
NI LabVIEW (78 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Requires advanced programming for data collection
  3. Requires a Heart Rate Receiver to connect to an interface
  4. Requires an additional signal source, such as LabQuest running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  5. Sensor does not auto-ID; manual setup is required.

Support

Resources

Warranty

5-year limited warranty
See our warranty policy

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
