Atwood’s Machine

Experiment #10 from Physics with Vernier

Education Level
High School
College
Subject
Physics

Introduction

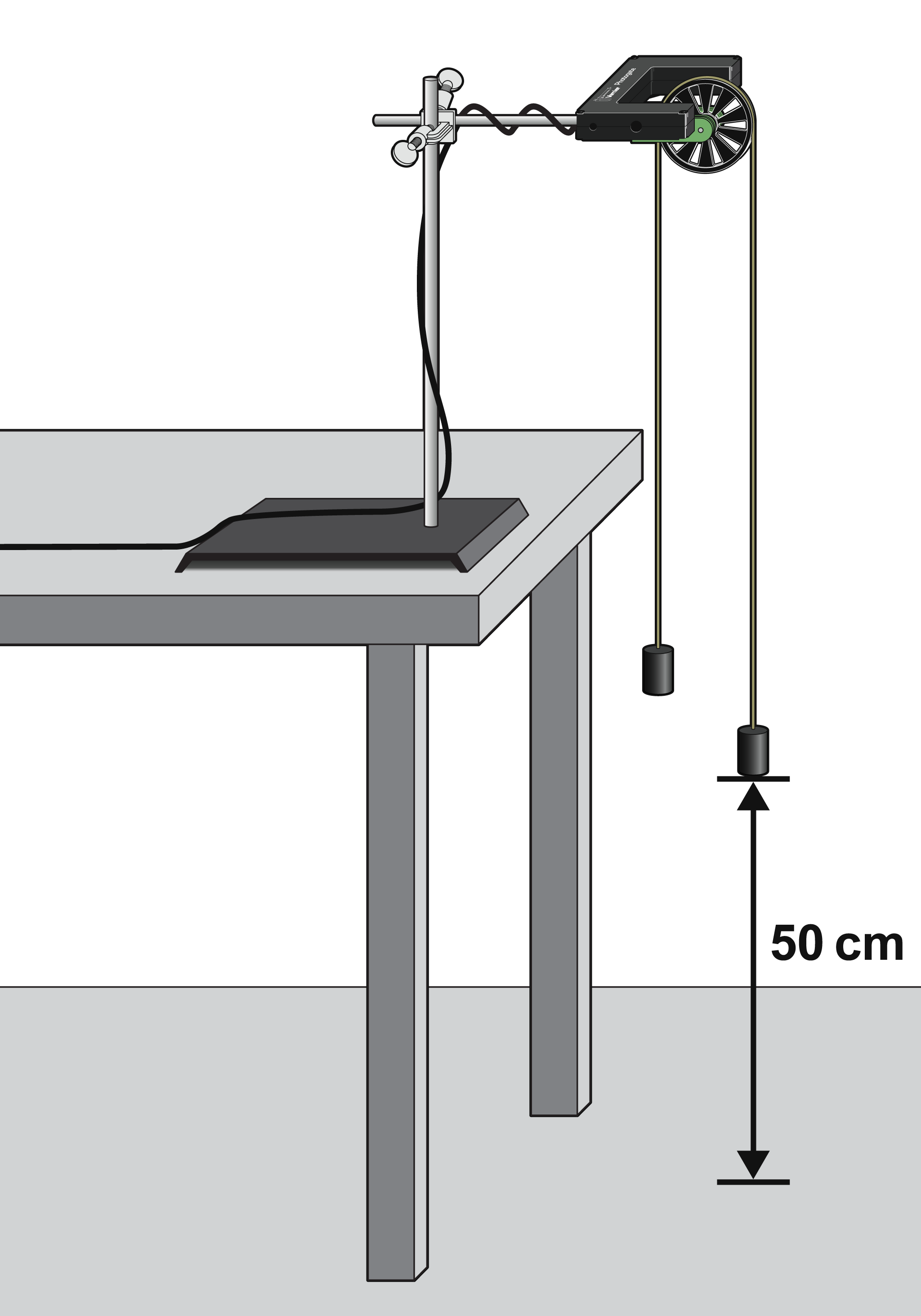

A classic experiment in physics is the Atwood’s machine: two masses on either side of a pulley connected by a light string. When released, the heavier mass accelerates downward while the lighter one accelerates upward at the same rate. The acceleration depends on the difference in the two masses, as well as the total mass.

In this lab, you will determine the relationship between the two factors that influence the acceleration of an Atwood’s machine using a Photogate to record the machine’s motion.

Objectives

  • Use a Photogate to study the acceleration of an Atwood’s machine.
  • Determine the relationships between the masses on an Atwood’s machine and the acceleration.

Sensors and Equipment

This experiment features the following sensors and equipment. Additional equipment may be required.

Ready to Experiment?

Ask an Expert

Get answers to your questions about how to teach this experiment with our support team.

Purchase the Lab Book

This experiment is #10 of Physics with Vernier. The experiment in the book includes student instructions as well as instructor information for set up, helpful hints, and sample graphs and data.
