Respiration Monitor Belt

Respiration Monitor Belt

Respiration Monitor Belt

$63.00

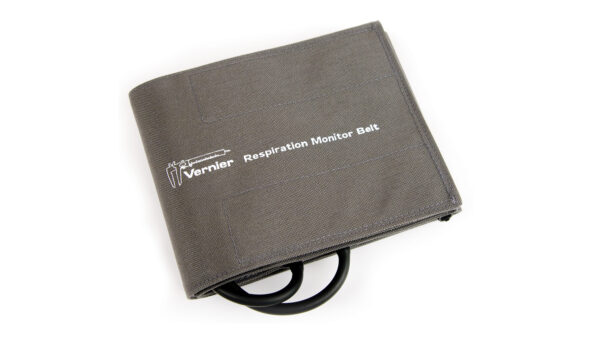

The Respiration Monitor Belt is used to measure human respiration rates.

ORDER CODE: RMB Categories ,

The Respiration Monitor Belt is used with the Gas Pressure Sensor to measure human respiration. Simply strap the belt around the chest and pump air into the belt with the hand bulb, and monitor the pressure associated with the expansion and contraction of the chest during breathing.

Specifications

Experiments

High School (1 experiments)
College (1 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Respiration Monitor Belt is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Compatibility Notes

  1. Requires a Gas Pressure Sensor
Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.15
Logger Lite
Version 1.9.4
LabQuest MiniIncompatible 1Full support 1Full support 1
LabQuest 2Full support 1 2Full support 1Full support 1
LabQuest StreamIncompatible 1Full support 1Full support 1 3
Go!LinkIncompatible 1Full support 1Full support 1

Compatibility Notes

  1. Requires a Gas Pressure Sensor
  2. Full support of this sensor is only available when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing. This sensor is not supported when used with a LabQuest 2 connected via USB to a computer or Chromebook.
  3. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
LabQuest 2Full support 1 2

Compatibility Notes

  1. Requires a Gas Pressure Sensor
  2. Full support of this sensor is only available when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing. This sensor is not supported when used with a LabQuest 2 connected via USB to a computer or Chromebook.
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1 2Full support 1 2

Compatibility Notes

  1. Requires a Gas Pressure Sensor
  2. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1 2Full support 1 2

Compatibility Notes

  1. Requires a Gas Pressure Sensor
  2. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.

What's Included

  • Respiration Monitor Belt
  • User manual

Accessories

There are no accessories available for this product.

Support

User Manual

View User Manual

Warranty

5-year limited warranty

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
