This information pertains to LabQuest 3.
If you have LabQuest 2, see this article.
The original LabQuest does not support this feature.
Related Links
How do I set up LabQuest 3 to email data with a Gmail account?
How can I setup email on my LabQuest using a Yahoo mail account?
How do I set up LabQuest 2 or LabQuest 3 to email data with labquest@vernier.com instead of my own email account?
Is there a way to tell which LabQuest 3 sent an email?
My LabQuest 3 is not sending emails; what can I do?
In a Web Browser
You will first need to make some configuration changes to your Gmail account using a computer or mobile device’s web browser. The procedure you need to follow depends on whether or not your Gmail account is setup to use two-factor authentication. Click the appropriate box below for specific instructions.
If you have two-factor authentication enabled on your Gmail account, you will need to create an App Password to use for Gmail authentication as described below.
- Log in and go to the Manage your Google Account page.
- Choose the Security section.

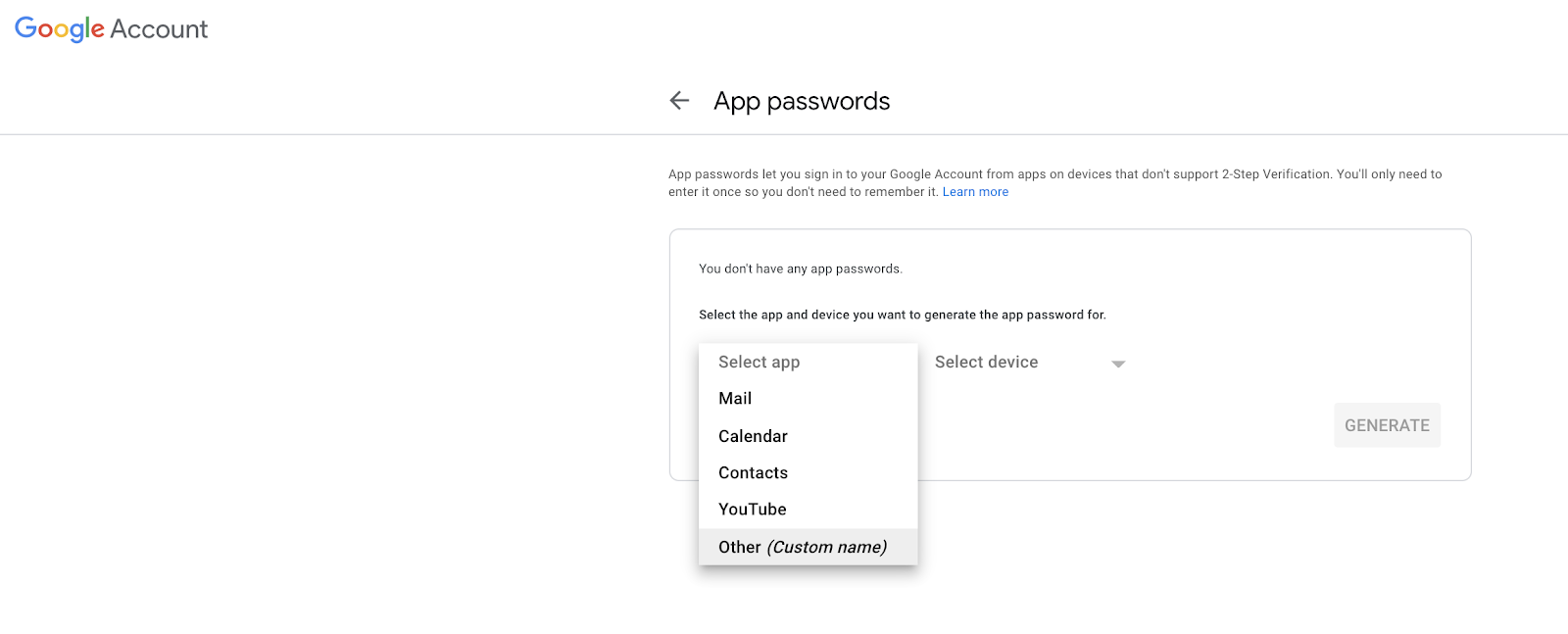

- Choose “App passwords”.
- Choose “Other (Custom name)” from the “Select app” dropdown options.
- Enter any name to help you know what this is used for (e.g., “my-lq3”).
- Choose “Generate” and write down the resulting password.
If you do not have two-factor authentication enabled on your Gmail account, you will need to enable “Less secure applications” access to use for Gmail authentication.

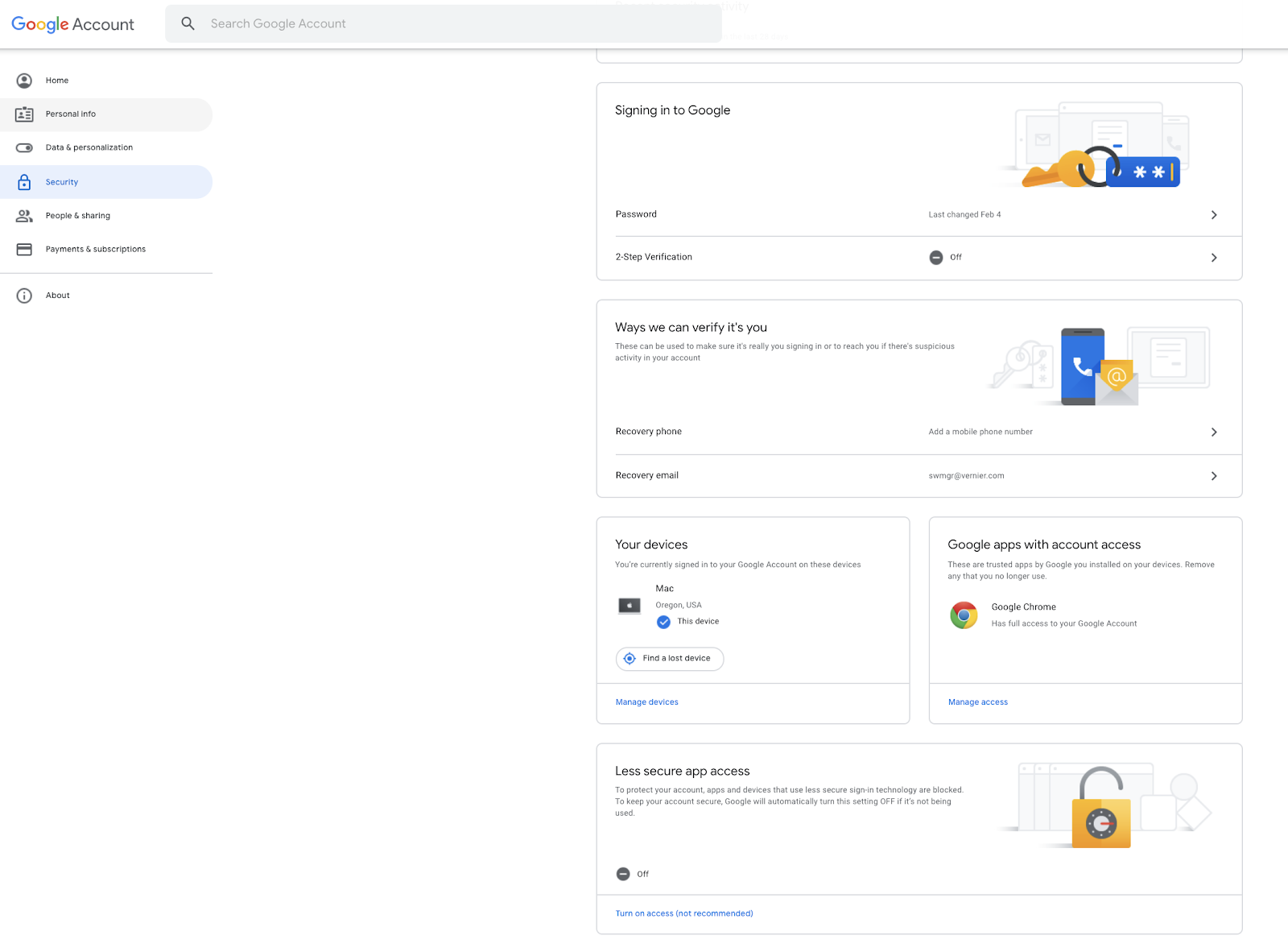

- Log in and go to the Manage your Google Account page.
- Choose the Security section.

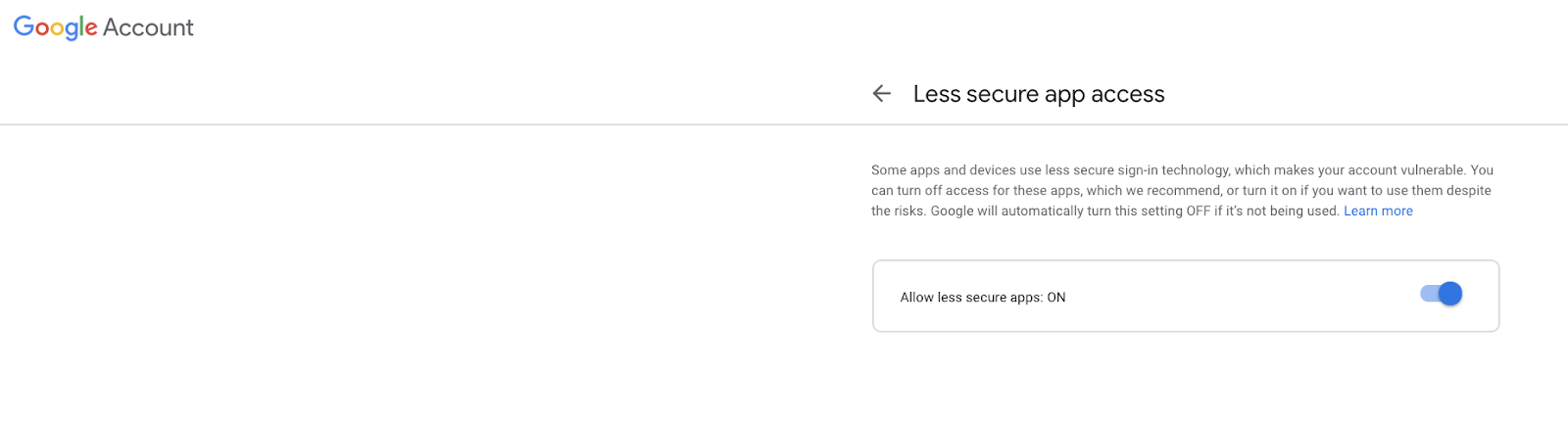

- Select the Less secure app access section.
On Your LabQuest
- From the Settings screen, tap Connections.
- Tap the Email gear icon.
- Turn Email On, choose Custom, and then enter your Email address.
- Tap Done to proceed. Tap the “I want to configure it manually instead” checkbox and then tap Next.
- Tap Next to proceed. The default values for the various fields should work. Enter the password that you generated through Gmail.
- Press the Test button and an email will be sent to your email address from LabQuest 3 to confirm that the setup is complete.
