How do I change the displayed measurement channel on my Go Direct Electrode Amplifier or ISE Amplifier?

For Chromebook, Windows, macOS, iOS or Android devices running Graphical Analysis 4
     1. Connect the amplifier to your device using Graphical Analysis 4.5 or newer.

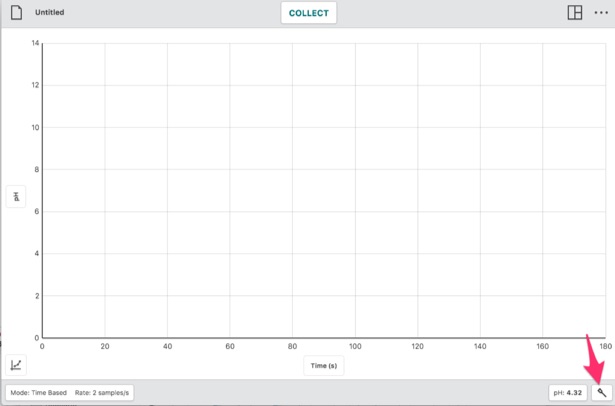

     2. Click or tap on the sensor icon at the bottom right of the screen (see image below)

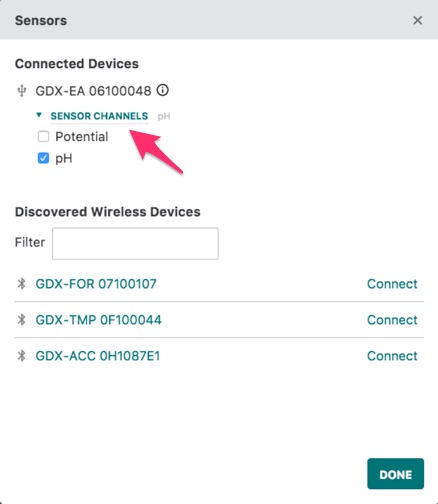

     3. In the Sensors dialog box, click on Sensor Channels. Check the box for the desired unit. Click or tap Done.
The next time you connect the sensor, this channel setting will be remembered.

For iOS devices running Graphical Analysis GW
     1. Connect the amplifier to your device using Graphical Analysis GW. At this point, you are on the Wireless Devices screen.
     2. Tap on the information icon to the right of the sensor name to view the device details dialog.
     3. Tap on Sensors at the bottom of the dialog.
     4. Enable the Channel you wish to use. Disable any channels you do not wish to use.
     5. Return to the Wireless Devices screen and select Done.
The next time you connect the sensor, this channel setting will be remembered.
