The Ladder Experiment Kit is an add-on hardware set designed for use with the Go Direct^® 2-Axis Force Plate (GDX‑FP2D) or the 2‑Axis Force Plate (FP2D‑BTA). It supports ladder-related investigations when used with a Vernier Dynamics Track (order code: TRACK, sold separately).

Note: Vernier products are designed for educational use. Our products are not designed nor are they recommended for any industrial, medical, or commercial process such as life support, patient diagnosis, control of a manufacturing process, or industrial testing of any kind.

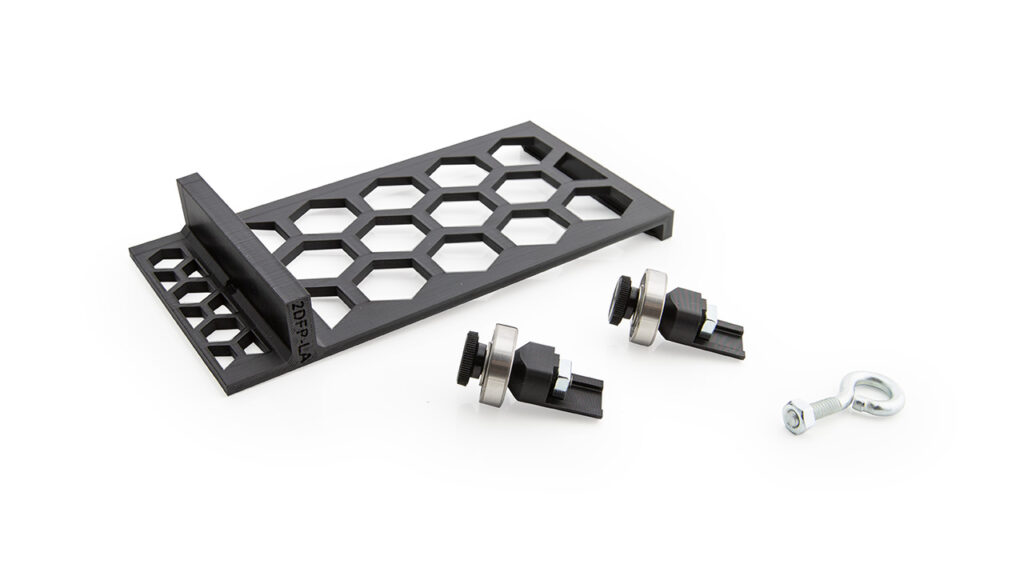

What's Included

Quick Start

1. Place the 2-Axis force plate near a wall. Orient the force plate so that when you are facing the wall, the force plate label is facing to the right.
2. Place the track bracket on the 2-Axis force plate, so it hooks on the edge of the force plate that is nearest to the wall.
3. If you plan to use the mass holder, slide it onto one side of the track and secure it in place.
4. Attach the two track rollers to the end of the track near the 120 cm mark on the ruler. Secure them using the thumbscrews.

5. Position the end of the track against the raised edge of the bracket, then lean the track against the wall.

Troubleshooting

Warranty

Warranty information for this product can be found on the Support tab at www.vernier.com/2dfp-la/#support

General warranty information can be found at www.vernier.com/warranty
