Breadboard Cable (Analog)

$12.00

The Breadboard Cable (Analog) provides an easy way for students to build their own sensor circuitry and input the signal into a Vernier interface for data acquisition.

ORDER CODE: BB-BTA Category

The Breadboard Cable (Analog) provides an easy way for students to build their own sensor circuitry and input the signal into a Vernier interface for data acquisition.

One end of the cable is a standard British Telecom Analog (BTA) connector that plugs into Vernier interfaces. The other end of the cable is a prototyping board connector that exposes the six sensor lines on a prototyping board.

Specifications

Pin Information

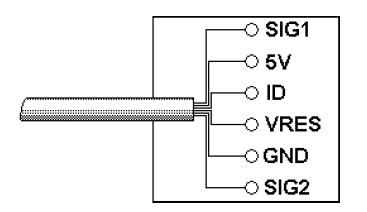

There are six pins available: SIG1, 5V, ID, VRES, GND, and SIG2.

Analog Breadboard Cable pins: SIG1, 5V, ID, VRES, GND, SIG2

See full specifications and troubleshooting guide »

Support

Warranty

5-year limited warranty
