Breadboard Cable (Digital)

$11.00

The Breadboard Cable (Digital) provides an easy way for students to build their own sensor circuitry and input the signal into a Vernier interface for data acquisition.

ORDER CODE: BB-BTD Category

The Breadboard Cable (Digital) provides an easy way for students to build their own sensor circuitry and input the signal into a Vernier interface for data acquisition.

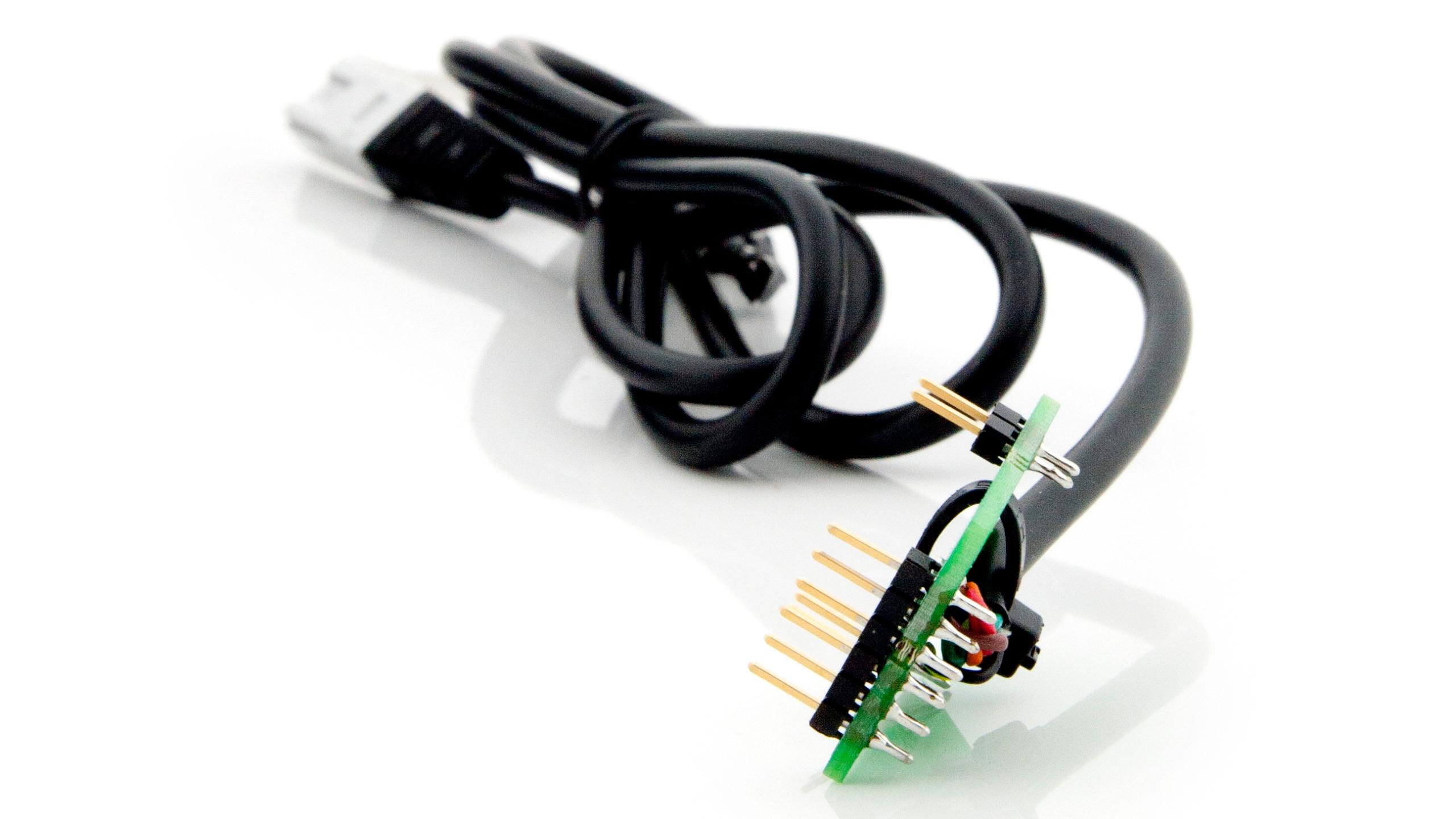

One end of the cable is a standard British Telecom Digital (BTD) connector that plugs into a compatible Vernier interfaces. The other end of the cable is a prototyping board connector that exposes the six sensor lines on a prototyping board.

Specifications

British Telecom Digital (BTD) - Left Hand

British Telecom Digital (BTD) – Left Hand

POS. DEFAULT MOTION DETECTOR PHOTOGATE RADIATION MONITOR ROTARY MOTION
Pin1 DIO0 Echo Input Countinput CCWcount
Pin2 DIO1 Init CWcount
Pin3 DIO2 AutoID
Pin4 PWR
(5.3V)
PWR
(5.3V)
PWR
(5.3V)
PWR
(5.3V)
PWR
(5.3V)
Pin5 GND GND GND GND GND
Pin6 DIO3 X4res.

Connect a Vernier digital sensor to a non-Vernier interface or prototyping board using our Digital Protoboard Adapter »
