Go Direct® pH BNC Electrode

Go Direct® pH BNC Electrode

Learn more about our solutions for the education level you teach:

Find other products in this category:

Go Direct® pH BNC Electrode

$40.00

A general-purpose pH electrode that connects to a Go Direct® Electrode Amplifier.

ORDER CODE: GDX-PH-BNC Category

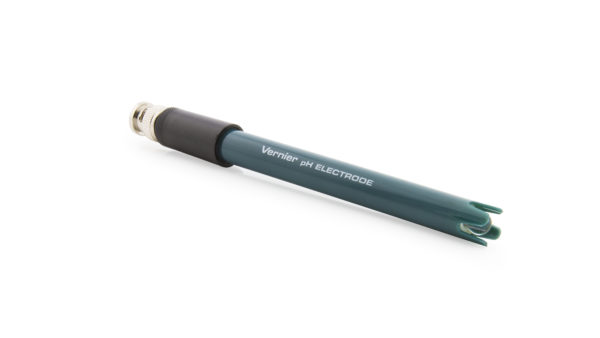

The Go Direct pH BNC Electrode is a gel-filled combination pH electrode designed to make measurements in the pH range of 0 to 14. A polycarbonate body that extends below the glass sensing bulb of the electrode makes this probe ideal for the demands of a middle school, high school, or university level science class or for making measurements in the environment. The gel-filled reference half cell is sealed—it never needs to be refilled.

Specifications

  • Type: Sealed, gel-filled polycarbonate body, Ag/AgCl
  • Response Time: 90% of final reading in 1 second
  • Temperature Range: 5 to 80°C (readings not compensated)
  • 12 mm outer diameter
  • Range: pH 0–14
  • Isopotential pH: pH 7 (point at which temperature has no effect on output)
  • BNC Connector

What's Included

Requirements

The Go Direct pH Electrode BNC connects via BNC to our Go Direct Electrode Amplifier.

Support

User Manual

View User Manual

Warranty

5-year limited warranty
