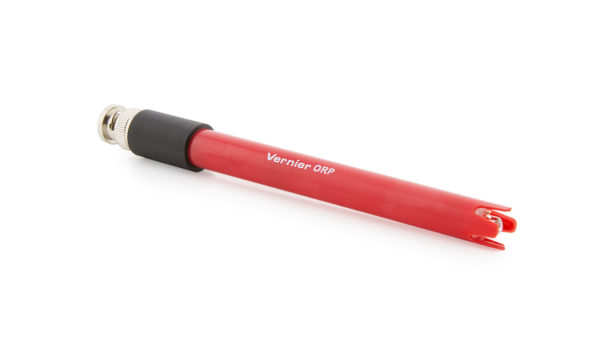

Go Direct® ORP BNC Electrode

Go Direct® ORP BNC Electrode

Go Direct® ORP BNC Electrode


Connect the ORP (oxidation-reduction potential) BNC Electrode to the Go Direct® Electrode Amplifier to measure the ability of an aqueous solution to act as an oxidizing or reducing agent.


The Go Direct ORP BNC Electrode can be used to measure the oxidizing ability of chlorine in swimming pools or to determine when the equivalence point has been reached in an oxidation-reduction reaction.


  • Accuracy with new electrode (mV): ±20 mV
  • Type: Sealed, gel-filled, polycarbonate body, Ag/AgCl reference, single junction
  • Storage solution: pH-4/KCl solution (10 g KCl in 100 mL buffer pH-4 solution)
  • ORP element: 99% pure platinum band sealed on a glass stem
  • Shaft diameter: 12 mm OD
  • Impedance: ~20 kΩ at 25ºC

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
