Go Direct® Calcium Ion-Selective Electrode BNC

Go Direct® Calcium Ion-Selective Electrode BNC

Categories:

Go Direct® Calcium Ion-Selective Electrode BNC

$216.00

Connect the Go Direct™ Calcium Ion-Selective Electrode BNC to our Go Direct™ Ion-Selective Electrode Amplifier to measure the concentration of calcium (Ca2+) ions in aqueous samples.

ORDER CODE: GDX-CA-BNC Category

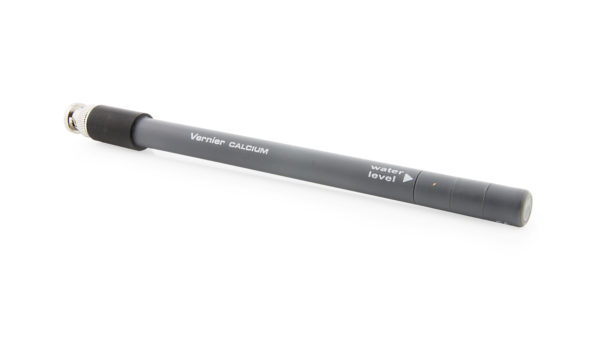

The Go Direct® Calcium Ion-Selective Electrode BNC is a BNC-terminated electrode used to measure the concentration of calcium (Ca2+) ions in aqueous samples. Requires a Go Direct® Ion-Selective Electrode Amplifier. The Go Direct Calcium Ion-Selective Electrode BNC has a combination-style, non-refillable, gel-filled electrode. Like all other PVC ISE membranes, the membrane on the ISE has a limited life expectancy. However, the replaceable module of ISE allows you to simply discard the used membrane module and replace it with a new one.

Note: We recommend that you do not purchase ISE replacement modules too far in advance of their expected time of use as degradation occurs while they are stored on the shelf.

Specifications

  • Range (mV):
  • Range (concentration): 1 to 40,000 mg/L (or ppm)
  • Reproducibility (precision): ±30mV
  • Interfering ions: Pb2+Hg2+, Si2+, Cu2+, Ni2+, NH3, Na+, Li+, K+, Ba2+, Zn2+, Mg2+
  • pH range: 2–8 (no pH compensation)
  • Temperature range: 0–40°C (no temperature compensation)
  • Electrode slope: 26 ±2 mV/decade at 25°C
  • Electrode resistance: 100 MΩ
  • Minimum sample size: must be submerged 2.8 cm (1.1 in)

Requirements

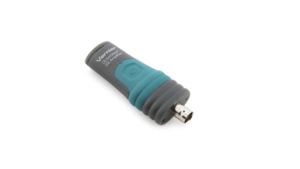

The Go Direct® Calcium Electrode BNC connects via BNC to one of our Electrode Amplifiers.

What's Included

  • Go Direct Calcium Ion-Selective Electrode with BNC terminated end, packed with a storage bottle
  • 30 mL bottle of High Standard solution with SDS (1000 mg/L Ca2+)
  • 30 mL bottle of Low Standard solution with SDS (10 mg/L Ca2+)
  • Short-Term ISE Soaking Bottle

Support

Warranty

5-year limited warranty (1 year on module, none on consumables)
See our warranty policy

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.

* AP and Advanced Placement Program are registered trademarks of the College Entrance Examination Board, which was not involved in the production of and does not endorse this product.

** The IB Diploma Program is an official program of the International Baccalaureate Organization (IBO) which authorizes schools to offer it. The material available here has been developed independently of the IBO and is not endorsed by it.
