Experiment #2 from Advanced Physics with Vernier — Beyond Mechanics

Education Level
High School
College
Subject
Physics

### Introduction

If you examined the pressure-volume behavior of a gas, you would have performed one of the thermodynamic processes involved in the cycle found in the operation of a heat engine. This process is known as an isothermal expansion – so named because the data were collected slowly enough that the temperature of the gas in the system remained constant.

In this experiment, you will examine some thermodynamic processes to understand how the internal energy of the system (Eint or U) is affected by exchanges of energy between the system and the surroundings.

### Objectives

In this experiment, you will

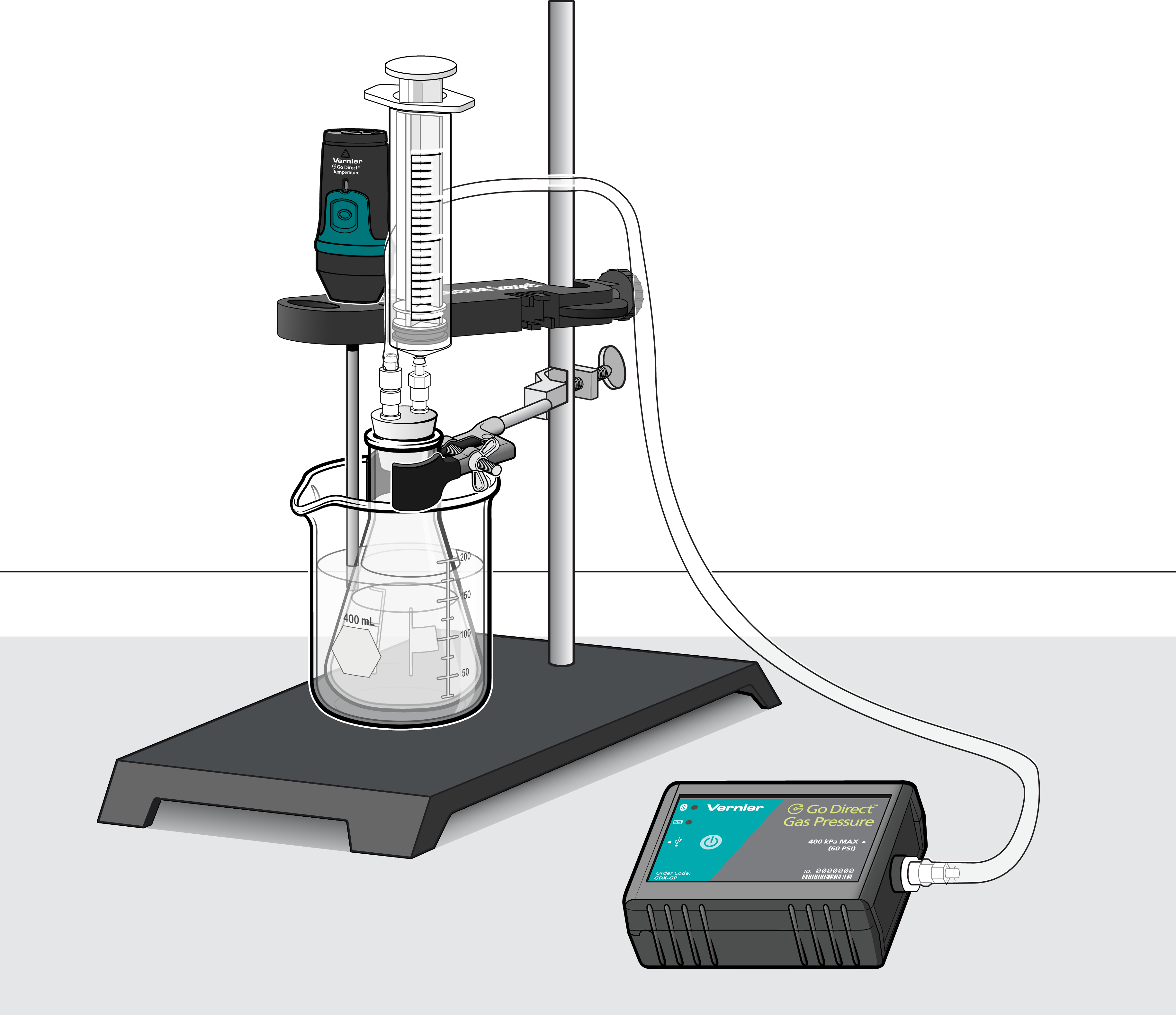

• Design and create a thermodynamic system consisting of a flask, tubing, syringe, and pressure sensor.
• Relate the terms isothermal, isochoric, isobaric and adiabatic to various thermodynamic processes, and how to move your thermodynamic system through these processes.
• Collect pressure, volume and temperature data for three of these processes.
• Analyze the various PV processes to keep track of the work (W) done by or on the enclosed gas and the heat (Q) transferred between the gas and the surroundings.
• Use the first law of thermodynamics to account for the change in internal energy in each of these processes.
• Determine the total work done by enclosed gas in various thermodynamic cyclic processes.

### Sensors and Equipment

This experiment features the following sensors and equipment. Additional equipment may be required.

### Correlations

Teaching to an educational standard? This experiment supports the standards below.

International Baccalaureate (IB) 2025/Physics
The students should understand that isovolumetric, isobaric, isothermal and adiabatic processes are obtained by keeping one variable fixed
The students should understand that cyclic gas processes are used to run heat engines
