Go Direct® Gas Pressure Sensor

$89.00

The Go Direct Gas Pressure Sensor measures the absolute pressure of a gas. It connects via Bluetooth® wireless technology or via USB to your device.

ORDER CODE: GDX-GP Categories ,

Use Go Direct Gas Pressure Sensor to monitor gas pressure in a variety of experiments. It records accurate absolute pressure readings relative to the perfect vacuum reference point inside the sensor, allowing you to go below atmospheric pressure or up to 400 kPa. Easily change the displayed units to any one of seven options (kPa, mmHg, inHg, mbar, psiatm, torr). Includes a syringe, tubing, and stoppers to ease setup for experiments such as Boyle’s law.

The Go Direct Gas Pressure Sensor can be used in a variety of experiments:

  • Investigate Boyle’s law and Charles’ law.
  • Investigate grip strength and muscle fatigue (using Gas Pressure Bulb, not included).
  • Measure the production of oxygen gas produced when hydrogen peroxide is destroyed by the enzyme catalase.
  • Monitor plant transpiration.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our free Graphical Analysis 4 app or LabQuest 2 App. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Wired or Wireless—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook, or computer using our free Graphical Analysis 4 app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.

Specifications

  • Range: 0 to 400 kPa
  • Resolution: 0.03 kPa
  • Accuracy: ±3 kPA
  • Maximum sampling rate: 50 samples/s
  • Internal volume: 0.8 mL
  • Maximum pressure that the sensor can tolerate without permanent damage: 450 kPa
  • Connections:
    • Wireless: Bluetooth
    • Wired: USB

Compatibility Requirements

LabQuest 2

Full Support

The Go Direct® Gas Pressure Sensor is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
No interface requiredFull support 1
LabQuest 2Full support 2 3

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
No interface requiredFull support
LabQuest 2Full support 1 2

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
No interface requiredFull supportFull support
LabQuest 2Full support 1 2 3Full support 1 2 3

Compatibility Notes

  1. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  2. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
No interface requiredFull supportIncompatibleFull support 1
LabQuest 2Full support 2 3 4Full support 2 3

Compatibility Notes

  1. In addition to having the Science Journal app installed and the Location permission enabled, you must also install Graphical Analysis 4 on your Android device to use this sensor.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  3. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
  4. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.

Experiments

Elementary School (10 experiments)
Middle School (10 experiments)
High School (37 experiments)
ExperimentLab Book
The Effect of Acid Rain on a Marble StructureVernier Chemistry Investigations for Use with AP* Chemistry
Investigating the Purity of a MixtureVernier Chemistry Investigations for Use with AP* Chemistry
TranspirationAgricultural Science with Vernier
Enzyme Action: Testing Catalase ActivityAgricultural Science with Vernier
Lactase ActionAgricultural Science with Vernier
OsmosisAgricultural Science with Vernier
OsmosisAdvanced Biology with Vernier
Enzyme Action: Testing Catalase ActivityAdvanced Biology with Vernier
Cell Respiration (Pressure)Advanced Biology with Vernier
TranspirationAdvanced Biology with Vernier
Fermentation with YeastInvestigating Biology through Inquiry
Transpiration of PlantsInvestigating Biology through Inquiry
Investigating OsmosisInvestigating Biology through Inquiry
Testing Catalase Activity (Gas Pressure)Investigating Biology through Inquiry
TranspirationBiology with Vernier
Cell Respiration (Pressure)Biology with Vernier
Sugar FermentationBiology with Vernier
Effect of Temperature on FermentationBiology with Vernier
OsmosisBiology with Vernier
Lactase ActionBiology with Vernier
Enzyme Action: Testing Catalase ActivityBiology with Vernier
The Decomposition of Hydrogen PeroxideAdvanced Chemistry with Vernier
Exploring the Properties of GasesAdvanced Chemistry with Vernier
Vapor Pressure and Heat of VaporizationAdvanced Chemistry with Vernier
The Molar Mass of a Volatile LiquidAdvanced Chemistry with Vernier
The Molar Volume of a GasAdvanced Chemistry with Vernier
Vapor Pressure and Heat of Vaporization InvestigationsInvestigating Chemistry through Inquiry
Baking Soda and Vinegar Investigations RevisitedInvestigating Chemistry through Inquiry
Reaction RatesInvestigating Chemistry through Inquiry
Enzyme ActivityInvestigating Chemistry through Inquiry
Sugar Fermentation by YeastInvestigating Chemistry through Inquiry
Vapor Pressure of LiquidsChemistry with Vernier
Boyle's Law: Pressure-Volume Relationship in GasesChemistry with Vernier
Pressure-Temperature Relationship in GasesChemistry with Vernier
Gas Pressure and VolumePhysical Science with Vernier
Gas Temperature and PressurePhysical Science with Vernier
Fun with PressurePhysical Science with Vernier
College (24 experiments)

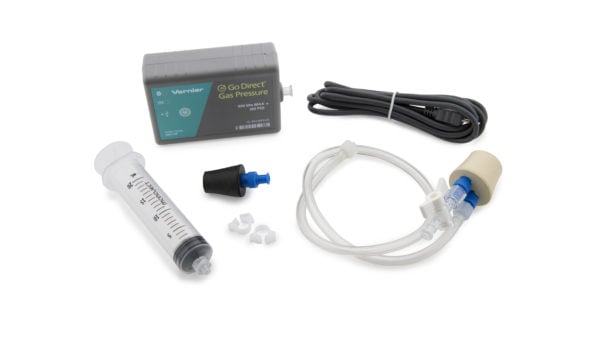

What's Included

  • Vernier Go Direct Gas Pressure Sensor
  • Tapered valve connectors (2) inserted into a No. 5 stopper
  • Tapered valve connector (1) inserted into a No. 1 stopper
  • Two-way valve
  • 18 inch Tygon tubing with Luer Lock connectors
  • 20 mL syringe
  • White transpiration tubing clamps (2)

Support

User Manual

View User Manual

Warranty

5-year limited warranty (1 year on battery)
