Calcium Ion-Selective Electrode BNC

Calcium Ion-Selective Electrode BNC

Calcium Ion-Selective Electrode BNC

$250.00

Connect the Calcium Ion-Selective Electrode BNC to our electrode amplifiers to measure the potential (mV) and calculate the concentration of calcium (Ca2+) ions in aqueous samples.

ORDER CODE: CA-BNC Category
Categories

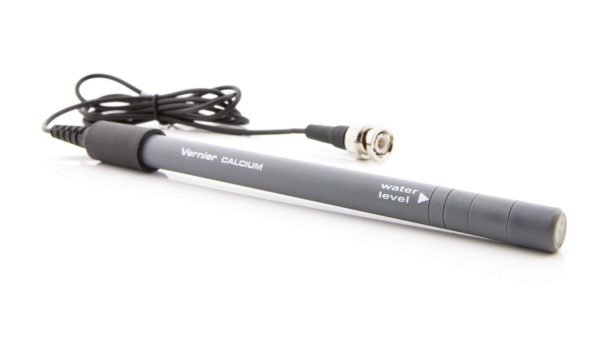

The Vernier Calcium Ion-Selective Electrode BNC Connector is a BNC-terminated electrode used to measure the concentration of calcium (Ca2+) ions in aqueous samples. Use with Vernier interfaces requires the Electrode Amplifier. Also compatible with Go Direct® Electrode Amplifier and Go Direct® Ion-Selective Electrode Amplifier.

Specifications

  • Range (mV):
  • Range (concentration): 1 to 40,000 mg/L (or ppm)
  • Reproducibility (precision): ±30mV
  • Interfering ions: Pb2+, Hg2+, Si2+, Cu2+, Ni2+, NH3, Na+, Li+, K+, Ba2+, Zn2+, Mg2+
  • pH range: 2–8 (no pH compensation)
  • Temperature range: 0–40°C (no temperature compensation)
  • Electrode slope: +26 ±2 mV/decade at 25°C
  • Electrode resistance: 100 MΩ
  • Minimum sample size: must be submerged 2.8 cm (1.1 in)

Download the user manual for full specifications

Requirements

The Calcium Ion-Selective Electrode BNC connects via BNC to one of our Electrode Amplifiers.

What's Included

  • Calcium Ion-Selective Electrode with BNC terminated end, packed with a storage bottle
  • 30 mL bottle of High Standard solution with SDS (1000 mg/L Ca2+)
  • 30 mL bottle of Low Standard solution with SDS (10 mg/L Ca2+)
  • Short-Term ISE Soaking Bottle

Support

Warranty

5-year limited warranty (1 year on module, none on consumables)
See our warranty policy

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
