Electrode Amplifier

Electrode Amplifier

Electrode Amplifier

$49.00

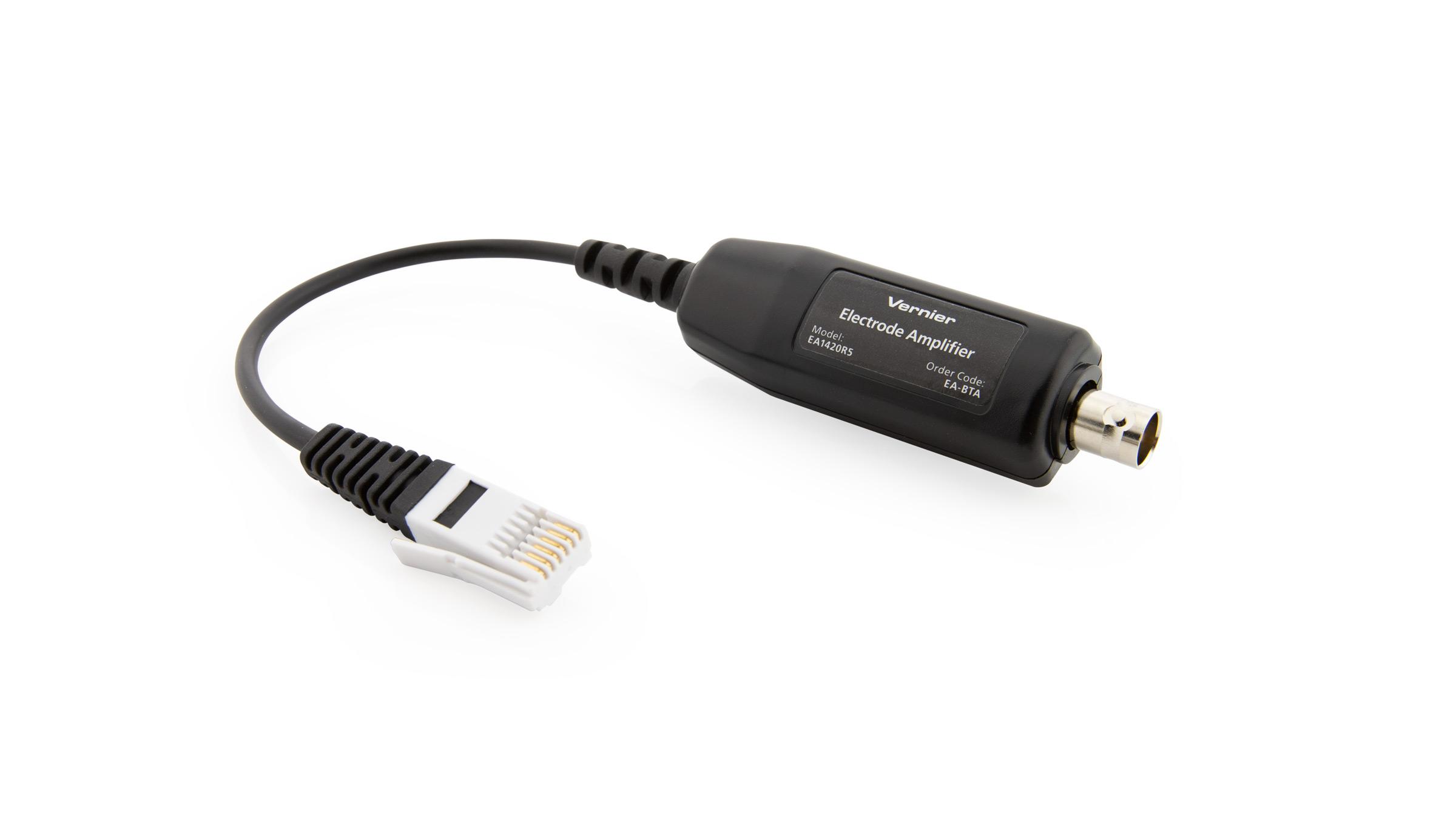

Use an Electrode Amplifier to collect data from almost any electrode that has a BNC connector. This includes electrodes from Vernier such as our pH electrode, or third-party electrodes, such as pH, ISE (ion-selective electrode), or ORP (oxidation-reduction potential).

ORDER CODE: EA-BTA Categories ,

Specifications

  • Power: 7 mA @ 5VDC
  • Input: range –450 mV to +1100 mV
  • Impedance: 100 MΩ
  • Gain: 2.2 V/V
  • Offset: 1.20 V (nominal)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Electrode Amplifier is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Compatibility Notes

  1. Requires a BNC electrode
Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest StreamFull support 1 2Full support 2Full support 2 3
EasyLinkIncompatibleFull support 2 4Full support 2 4
Go!LinkFull support 2Full support 2Full support 2
LabQuest 2Full support 2Full support 2Full support 2
LabQuest MiniFull support 2Full support 2Full support 2
Original LabQuestFull support 2Full support 2Full support 2

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Requires a BNC electrode
  3. Connect LabQuest Stream via USB. Wireless connection is not supported.
  4. Requires an Easy to Go! adapter
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
EasyLinkFull support 1 2
Go!LinkFull support 2
LabQuest 2Full support 2
LabQuest MiniFull support 2
Original LabQuestFull support 2
LabQuest StreamFull support 2 3

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. Requires a BNC electrode
  3. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1 2Full support 1 2
LabQuest StreamFull support 1Partial support 1 3

Compatibility Notes

  1. Requires a BNC electrode
  2. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
  3. Data collection will be in mV only. The pH calibration is not supported.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1 2Full support 1 2
LabQuest StreamFull support 1Incompatible 1

Compatibility Notes

  1. Requires a BNC electrode
  2. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LEGO MINDSTORMS
Software
InterfaceLEGO® MINDSTORMS® EV3
Version 1.1
LEGO® MINDSTORMS® NXT
Version 2.0
NXT Sensor AdapterPartial support 1Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
LabVIEW
Software
InterfaceNI LabVIEW
Go!LinkFull support
SensorDAQFull support
Vernier myDAQ AdapterFull support 1
LabQuest MiniFull support
LabQuest StreamFull support
Original LabQuestFull support
LabQuest 2Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
EasyLinkFull support 1 2
Go!LinkFull support 2
Original LabQuestFull support 2

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. Requires a BNC electrode
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataMate
Version 1.15
TI-84 SmartViewDataQuest
Version 4.2
TI-Nspire Software
EasyLinkFull support 1 2IncompatibleFull support 1 3Full support 1Full support 1 3
Go!LinkFull support 1 2 4IncompatibleFull support 1Full support 1 4Full support 1
TI-Nspire Lab CradleIncompatibleIncompatibleIncompatibleFull support 1Full support 1
CBL 2Full support 1 5Full support 1 5 6IncompatibleIncompatibleIncompatible

Compatibility Notes

  1. Requires a BNC electrode
  2. Use with TI-84 Plus calculators only.
  3. Requires an Easy to Go! adapter
  4. Requires a Go! to Easy adapter
  5. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  6. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

  • Vernier Electrode Amplifier
  • User manual

Accessories

AccessoryOrder CodePriceQuantity
pH Electrode BNCPH-BNC$41.00
Flat pH Electrode BNCFPH-BNC$74.00
Glass-Body pH Electrode BNCGPH-BNC$85.00
Nitrate Ion-Selective Electrode BNCNO3-BNC$207.00
Calcium Ion-Selective Electrode BNCCA-BNC$207.00
Ammonium Ion-Selective Electrode BNCNH4-BNC$207.00
Potassium Ion-Selective Electrode BNCK-BNC$207.00
Chloride Ion-Selective Electrode BNCCL-BNC$207.00
ORP Electrode BNCORP-BNC$48.00
