Glass-Body pH Electrode BNC

$85.00

Connect the Glass-Body pH Electrode to our Electrode Amplifier to measure pH in aqueous, heterogeneous, and organic solutions.

ORDER CODE: GPH-BNC Category

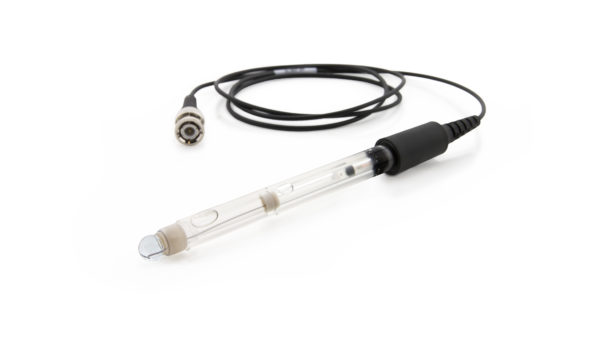

This high-quality glass body pH electrode can be used in non-aqueous solutions and solutions that contain organic solvents, strong acids, or strong bases. The electrode features a sealed, gel-filled Ag-AgCl combination reference electrode and uses a BNC connector. Use with Vernier interfaces requires the Electrode Amplifier. Also compatible with Go Direct® Electrode Amplifier.

Specifications

  • pH range: 0–14
  • Type: Glass shaft, sealed combination electrode with Ag/AgCl reference
  • Temperature range: 0–80°C (readings not compensated)
  • Accuracy
    • ±0.2 pH units (factory calibration)
    • ±0.05 pH units (user calibration)
  • Response time:
    • s (to 90% of full reading in aqueous buffer)
    • s (to 90% of full reading in 50% acetonitrile)
  • Shaft diameter: 12 mm OD
  • Shaft material: glass

Requirements

The Glass-Body pH Electrode BNC connects via BNC to one of our Electrode Amplifiers.

What's Included

  • Glass-Body pH Electrode with BNC terminated cable
  • pH storage solution bottle with pH storage solution
  • User manual

Support

User Manual

View User Manual

Warranty

5-year limited warranty (consumables excluded)

Replacement Parts

Contact Us
