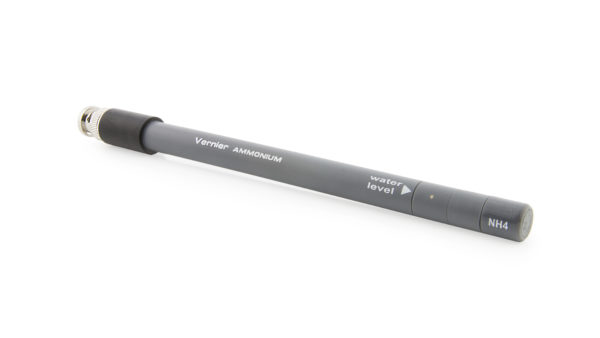

Go Direct® Ammonium Ion-Selective Electrode BNC

Go Direct® Ammonium Ion-Selective Electrode BNC

Find other products in this category:

Go Direct® Ammonium Ion-Selective Electrode BNC

$216.00

Connect the Go Direct™ Ammonium Ion-Selective Electrode BNC to our Go Direct™ Ion-Selective Electrode Amplifier to measure the potential (mV) and calculate the concentration of ammonium (NH4+) ions in aqueous samples.

ORDER CODE: GDX-NH4-BNC Category

The Go Direct Ammonium Ion-Selective Electrode BNC is a BNC terminated electrode used to measure the concentration of ammonium (NH4+) ions in aqueous samples. Requires a Go Direct® Ion-Selective Electrode Amplifier. The Go Direct Ammonium Ion-Selective Electrode BNC has a combination-style, non-refillable, gel-filled electrode. Like all other PVC ISE membranes, the membrane on the ISE has a limited life expectancy. However, the replaceable module of ISE allows you to simply discard the used membrane module and replace it with a new one.

Note: We recommend that you do not purchase ISE replacement modules too far in advance of their expected time of use as degradation occurs while they are stored on the shelf.

Specifications

  • Range (mV):
  • Range (concentration): 1 to 14,000 mg/L (or ppm)
  • Reproducibility (precision): ±30mV
  • Interfering ions: ClO4, I, ClO3, F
  • pH range: 2.5–11 (no pH compensation)
  • Temperature range: 0–40°C (no temperature compensation)
  • Electrode slope: 55 ±3 mV/decade at 25°C
  • Electrode resistance: 0.1 to 5 MΩ
  • Minimum sample size: must be submerged 2.8 cm (1.1 in)

What's Included

  • Go Direct Nitrate Ion-Selective Electrode with BNC terminated end, packed with a storage bottle
  • 30 mL bottle of High Standard solution with SDS (1000 mg/L NO3)
  • 30 mL bottle of Low Standard solution with SDS (10 mg/L NO3)
  • Short-Term ISE Soaking Bottle

Support

Warranty

5-year limited warranty (1 year on module, none on consumables)
