TI-Nspire Lab Cradle

TI-Nspire Lab Cradle

Subjects:

Categories:

TI-Nspire Lab Cradle

$145.00$725.00

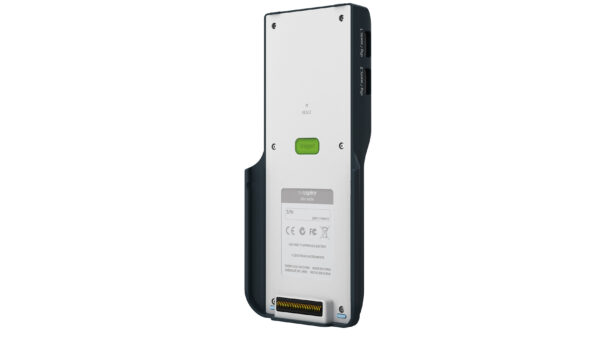

The TI-Nspire Lab Cradle is a multi-channeled data-collection interface for use with TI-Nspire technology.

ORDER CODE: N/A Category
Clear

The Lab Cradle has five sensor ports for use with over 75 Vernier sensors. Collect data up to 100,000 samples per second. The Lab Cradle is compatible with TI-Nspire computer software and any TI-Nspire handheld (clickpad, touchpad, CX, and CX II).

TI-Nspire Lab Cradle Bundles

Teaching a large group of students and require more to share? Consider a TI-Nspire Lab Cradle bundle to meet the demands of your classroom. A bundle includes 5 TI-Nspire Lab Cradles and a charging bay.

Technical Specifications

  • Resolution: 12-bit A/D conversion
  • Maximum sampling rate: 100,000 readings per second
  • Sensor channels: 3 analog and 2 digital
  • Internal memory: 32 MB
  • Power: Rechargeable battery

Calculator Requirements

  • Any TI-Nspire handheld (clickpad, touchpad, CX, or CX II) running software version 3.0 or newer.
  • TI-Nspire computer software is optional.

Compatible Sensors

TI-Nspire Handhelds and DataQuest (77 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Sensor does not auto-ID; manual setup is required.
  3. Requires a BNC electrode
  4. This software cannot apply digital filters to EKG data.
  5. Requires a Heart Rate Receiver to connect to an interface
  6. Requires an additional signal source, such as LabQuest 2 running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  7. Requires a Gas Pressure Sensor
  8. Software does not support baseline adjustment.
  9. Currently shipping Thermocouples (Model: TCA1816R3) use a calibration type not supported with this software. Older models of the sensor are fully supported. No software update is planned.
  10. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
  11. Requires manual setup of meter and data columns for resistance and power data
Computers and TI-Nspire Software (77 sensors)

Supported Sensors

Compatibility Notes

  1. Requires a Motion Detector Cable to connect to a DIG port on the interface
  2. Sensor does not auto-ID; manual setup is required.
  3. Requires a BNC electrode
  4. This software cannot apply digital filters to EKG data.
  5. Requires a Heart Rate Receiver to connect to an interface
  6. Requires an additional signal source, such as LabQuest 2 running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  7. Requires a Gas Pressure Sensor
  8. Software does not support baseline adjustment.
  9. Currently shipping Thermocouples (Model: TCA1816R3) use a calibration type not supported with this software. Older models of the sensor are fully supported. No software update is planned.
  10. Use with an electrode such as a pH Sensor, Conductivity Probe, or ORP Sensor.
  11. Requires manual setup of meter and data columns for resistance and power data

Compatible Devices and Software

The DataQuest App is a full-featured data-collection and analysis application for TI-Nspire technology. DataQuest supports data collection, graph and tabular representation, and data analysis—all in a single TI-Nspire application.

What's Included

  • USB computer cable
  • Rechargeable battery
  • AC Adapter.

Lab Cradle Bundles

Bundle includes 5 TI-Nspire Lab Cradles with rechargeable batteries, 5 USB computer cables, and a 5-unit charging bay.

Note: TI-Nspire handheld sold separately.

Accessories

There are no accessories available for this product.

Support

Resources

Warranty

1-year limited warranty from Texas Instruments

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
