Go Direct® Blood Pressure Sensor

Go Direct® Blood Pressure Sensor

Go Direct® Blood Pressure Sensor

$125.00

Go Direct Blood Pressure is an affordable, non-invasive sensor designed to easily measure human blood pressure.

ORDER CODE: GDX-BP Categories ,

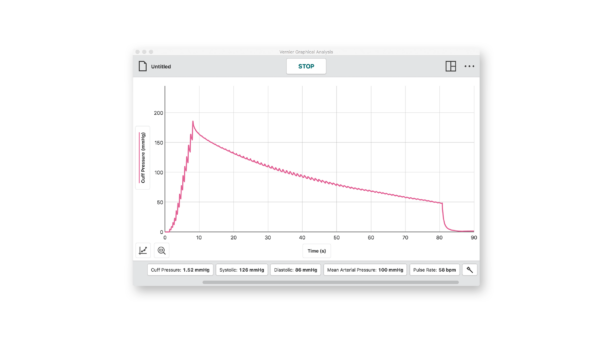

Designed for versatility, Go Direct Blood Pressure is a non-invasive sensor that measures human blood pressure. It measures systolic, diastolic, and mean arterial pressure using the oscillometric method. Go Direct Blood Pressure can also report pulse rate and can display both individual pressure pulses and peak-to-peak pulse amplitudes, giving students a few ways to collect data.

The sensor indicator light provides immediate user feedback, letting students know when blood pressure parameters have been reported. With both USB and wireless capabilities, students can monitor blood pressure anywhere using any compatible device.

Go Direct Blood Pressure can be used in a variety of experiments:

  • Measure and compare blood pressure and heart rate.
  • Measure how exercise changes blood pressure.
  • Observe how the “fight or flight” response changes blood pressure.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our award-winning Vernier Graphical Analysis® app, as well as LabQuest® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Wireless or Wired—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook, or computer using our Vernier Graphical Analysis® app—no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the best solution for your classroom or laboratory.

Specifications

  • Range: 0 to 300 mmHg
  • Resolution: 0.001 mmHg
  • Accuracy: ±0.75 mmHg
  • Response time: 5 ms
  • Maximum pressure without damage: 3100 mmHg
  • Connections:
    • Wireless: Bluetooth
    • Wired: USB

Experiments

High School (4 experiments)
College (4 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Incompatible

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Computers
Software
InterfaceGraphical Analysis
No interface requiredFull support 1
LabQuest 3Full support 2
LabQuest 2 (discontinued)Full support 2 3

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Chromebook
Software
InterfaceGraphical Analysis
No interface requiredFull support
LabQuest 3Full support 1
LabQuest 2 (discontinued)Full support 1 2

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
iOS
Software
InterfaceGraphical AnalysisGraphical Analysis GW
No interface requiredFull supportIncompatible
LabQuest 3Full support 1 2Full support 2
LabQuest 2 (discontinued)Full support 1 2 3Full support 2 3

Compatibility Notes

  1. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  2. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Android
Software
InterfaceGraphical AnalysisGraphical Analysis GW
No interface requiredFull supportIncompatible
LabQuest 3Full support 1 2Full support 2
LabQuest 2 (discontinued)Full support 1 2 3Full support 2 3

Compatibility Notes

  1. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  2. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Python
Software
InterfacePython
No interface requiredFull support
Javascript
Software
InterfaceJavascript
No interface requiredFull support
LabVIEW
Software
InterfaceNI LabVIEW
No interface requiredFull support 1

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.

What's Included

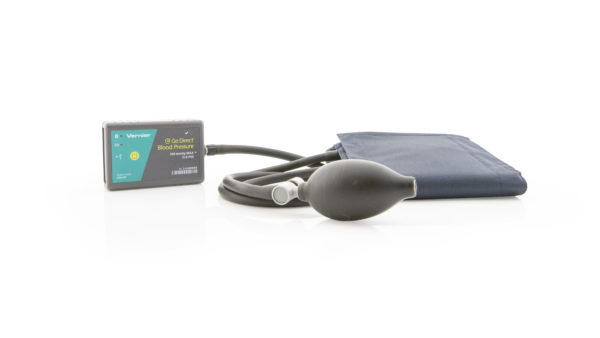

  • Go Direct Blood Pressure
  • Standard adult size adjustable cuff (27 cm to 39 cm)
  • Bulb pump (with release valve)
  • Micro USB Cable

Accessories

AccessoryOrder CodePriceQuantity
Blood Pressure Cuffs - SmallCUFF-SM$35.00
Blood Pressure Cuffs - LargeCUFF-LG$40.00
Micro USB to USB-C CableCB-USB-C-MICRO$9.00
Replacement PartOrder CodePriceQuantity
Blood Pressure Cuffs - SmallCUFF-SM$35.00
Blood Pressure Cuffs - StandardCUFF-STD$32.00
Blood Pressure Cuffs - LargeCUFF-LG$40.00
Micro USB CableCB-USB-MICRO$5.00
Go Direct® 300 mAh Replacement BatteryGDX-BAT-300$10.00

Support

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
