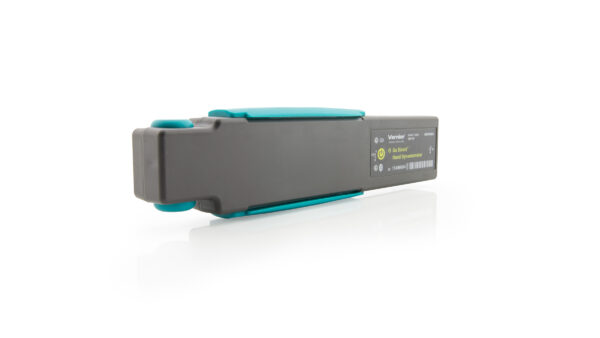

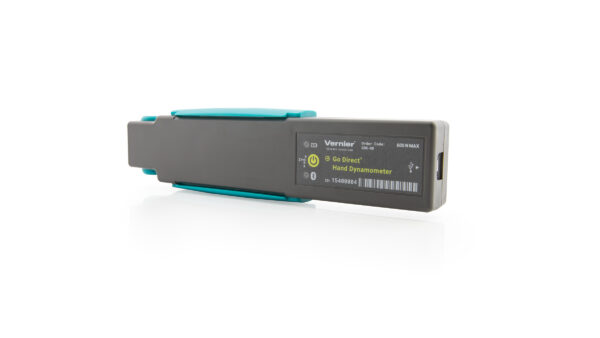

Go Direct® Hand Dynamometer

Go Direct® Hand Dynamometer

Go Direct® Hand Dynamometer

$109.00

Measure grip strength, pinch strength, and muscle fatigue wirelessly with Go Direct® Hand Dynamometer. It connects via Bluetooth® wireless technology or via USB to your device.

ORDER CODE: GDX-HD Categories ,

Go Direct Hand Dynamometer can be used to measure grip and pinch strength and to perform muscle fatigue studies. This sensor directly connects via Bluetooth® wireless technology or USB to student devices. Students can correlate muscle strength and fatigue when they pair Go Direct Hand Dynamometer and Go Direct® EKG Sensor.

The Go Direct Hand Dynamometer can be used in a variety of experiments:

  • Evaluate grip strength and different limb positions.
  • Observe the effect of a conscious effort to overcome fatigue on hand grip strength.
  • Compare pinch strength of each finger.

Teach coding by using the accelerometer and gyroscope inside the Go Direct Hand Dynamometer to make it into a game controller. We have libraries for LabVIEWPython, and Javascript to get you started.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our free Vernier Graphical Analysis™ app, as well as Vernier Graphical Analysis Pro and LabQuest® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting–no interruptions or inconvenience to you or your students.

Wireless or Wired—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook, or computer using our free Vernier Graphical Analysis app–no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.

Specifications

  • Resolution: 0.1 N
  • Range: 0 to 600 N
  • Safety Range (maximum force without damage done to sensor): 0 to 850 N
  • Acceleration: 3 axis, ±16 g
  • Gyroscope: 3 axis, 2000°/s
  • Connections
    • Wireless: Bluetooth
    • Wired: USB

Experiments

High School (3 experiments)
College (3 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Incompatible

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Computers
Software
InterfaceGraphical Analysis App for Computers
Version 5.4
No interface requiredFull support 1
LabQuest 3Full support 2 3
LabQuest 2 (discontinued)Full support 2 3

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  3. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
Chromebook
Software
InterfaceGraphical Analysis App for Chrome
Version 5.4
No interface requiredFull support
LabQuest 3Full support 1 2
LabQuest 2 (discontinued)Full support 1 2

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  2. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
iOS
Software
InterfaceGraphical Analysis App for iOS
Version 5.4
Graphical Analysis GW for iOS
Version 4.0.6
No interface requiredFull supportIncompatible
LabQuest 3Full support 1 2 3Full support 1 2
LabQuest 2 (discontinued)Full support 1 2 3Full support 1 2

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  2. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  3. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
Android
Software
InterfaceGraphical Analysis App for Android
Version 5.4
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
No interface requiredFull supportIncompatibleFull support 1
LabQuest 3Full support 2 3 4Full support 2 3Incompatible
LabQuest 2 (discontinued)Full support 2 3 4Full support 2 3Incompatible

Compatibility Notes

  1. In addition to having the Science Journal app installed and the Location permission enabled, you must also install Graphical Analysis 4 on your Android device to use this sensor.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  3. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  4. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
Python
Software
InterfacePython
No interface requiredFull support
Javascript
Software
InterfaceJavascript
No interface requiredFull support 1

Compatibility Notes

  1. A wireless Bluetooth® connection can be made with Go Direct sensors on any platform running a browser with WebBluetooth support. However, only a few operating systems have been tested and testing has been limited.
LabVIEW
Software
InterfaceNI LabVIEW

What's Included

  • Go Direct Hand Dynamometer
  • Micro USB Cable

Accessories

AccessoryOrder CodePriceQuantity
Micro USB to USB-C CableCB-USB-C-MICRO$9.00
Replacement PartOrder CodePriceQuantity
Micro USB CableCB-USB-MICRO$5.00
Go Direct® 300 mAh Replacement BatteryGDX-BAT-300$9.00

Support

Warranty

5-year limited warranty (1 year on battery)
See our warranty policy

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
