Go Direct® CO2 Gas Sensor

Go Direct® CO2 Gas Sensor

Go Direct® CO2 Gas Sensor

$199.00

The Go Direct CO2 Gas Sensor measures gaseous carbon dioxide concentration levels, air temperature, and relative humidity. It can be used in a variety of biology experiments. It connects via Bluetooth® wireless technology or via USB to your device.

ORDER CODE: GDX-CO2 Categories ,

Monitor changes in carbon dioxide, temperature, and relative humidity easily with the Go Direct CO2 Gas Sensor. This sensor includes built-in temperature compensation and humidity protection. A 250 mL Nalgene bottle is included for running controlled experiments with small plants and animals.

The Go Direct CO2 Gas Sensor is ideal for the following experiments:

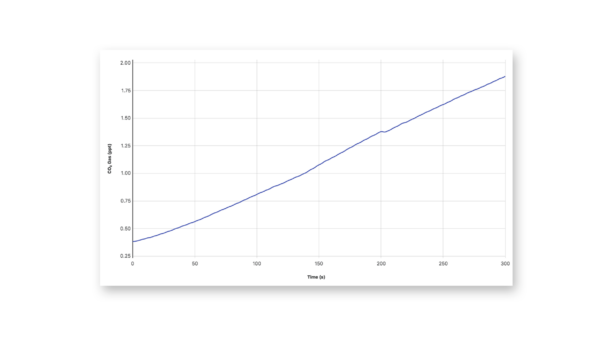

  • Measure the change in gas concentration during cellular respiration.
  • Measure the change in gas concentration during photosynthesis.
  • Study the effect of temperature on cell respiration or metabolism of organisms.
  • Investigate artificial selection in yeast by comparing respiration rates of different strains.

Rechargeable Battery–Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our free Vernier Graphical Analysis™ app, as well as Graphical Analysis Pro and LabQuest® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting–no interruptions or inconvenience to you or your students.

Wireless or Wired–The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook, or computer using our free Graphical Analysis app–no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.

Specifications

  • CO2 Sensor
    • Type: NDIR
    • Range: 0–100,000 ppm
    • Accuracy
      • 0 to 1,000 ppm: ±100 ppm
      • 1,000 to 10,000 ppm: ±5% of reading + 100 ppm
      • 10,000 ppm to 50,000 ppm: ±10% of reading
      • 50,000 to 100,000 ppm: ±15% of reading
    • Resolution: 1 ppm CO2
  • Temperature Sensor
    • Type: integrated circuit (IC)
    • Accuracy: ±0.5°C
    • Resolution: 0.1°C
  • Relative Humidity Sensor
    • Type: integrated circuit (IC)
    • Accuracy: ±5% or better
    • Resolution: 0.1%
  • Dimensions
    • Sensor shaft length: 82 mm
    • Sensor shaft diameter: 28 mm
    • Total length: 200 mm
  • Connections
    • Wireless: Bluetooth
    • Wired: USB

Experiments

High School (19 experiments)
College (19 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Incompatible

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Computers
Software
InterfaceGraphical Analysis App for Computers
Version 4.10
No interface requiredFull support 1
LabQuest® 3Full support 2 3
LabQuest 2 (discontinued)Full support 2 3

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Chromebook
Software
InterfaceGraphical Analysis App for Chrome
Version 4.10
No interface requiredFull support
LabQuest® 3Full support 1 2
LabQuest 2 (discontinued)Full support 1 2

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
iOS
Software
InterfaceGraphical Analysis App for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
No interface requiredFull supportFull support
LabQuest® 3Full support 1 2 3Full support 1 2 3
LabQuest 2 (discontinued)Full support 1 2 3Full support 1 2 3

Compatibility Notes

  1. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  2. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Android
Software
InterfaceGraphical Analysis App for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
No interface requiredFull supportIncompatibleFull support 1
LabQuest® 3Full support 2 3 4Full support 2 3Incompatible
LabQuest 2 (discontinued)Full support 2 3 4Full support 2 3Incompatible

Compatibility Notes

  1. In addition to having the Science Journal app installed and the Location permission enabled, you must also install Graphical Analysis 4 on your Android device to use this sensor.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  3. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  4. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
Python
Software
InterfacePython
No interface requiredFull support
Javascript
Software
InterfaceJavascript
No interface requiredFull support 1

Compatibility Notes

  1. A wireless Bluetooth® connection can be made with Go Direct sensors on any platform running a browser with WebBluetooth support. However, only a few operating systems have been tested and testing has been limited.
LabVIEW
Software
InterfaceNI LabVIEW

What's Included

  • Go Direct® CO2 Gas Sensor
  • Micro USB Cable
  • 250 mL Nalgene Bottle w/Lid

Accessories

AccessoryOrder CodePriceQuantity
BioChamber 2000BC-2000$22.00
BioChamber 250BC-250$8.00
Go Direct® Charge StationGDX-CRG$69.00

Support

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
