Go Direct® Thermocouple

Go Direct® Thermocouple

Go Direct® Thermocouple

$98.00$109.00

With this affordable and easy-to-use sensor, students can collect reliable data during experiments that involve extreme temperatures. This sensor connects wirelessly to a number of devices, including Chromebooks.

ORDER CODE: N/A Categories ,
Clear

With this sensor, students can collect reliable data during experiments in which there are extreme temperatures, such as making ice cream with dry ice or testing different elements of a flame. Our thermocouple is both affordable and accessible, and students can connect this sensor wirelessly to a wide variety of devices.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our free Vernier Graphical Analysis™ app, as well as Graphical Analysis Pro and LabQuest® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting–no interruptions or inconvenience to you or your students.

Wireless or Wired—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook, or computer using our free Graphical Analysis app–no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.

Specifications

Specifications

  • Range (type-K): –200ºC to +1,400ºC
  • Typical accuracy: ±2.2ºC
  • Maximum wireless range: 30 m (unobstructed)
  • Compatible thermocouple wires: type-J, type-T, and type-K wires

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Incompatible

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Computers
Software
InterfaceGraphical Analysis App for Computers
Version 4.10
No interface requiredFull support 1
LabQuest® 3Full support 2
LabQuest 2 (discontinued)Full support 2 3

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Chromebook
Software
InterfaceGraphical Analysis App for Chrome
Version 4.10
No interface requiredFull support
LabQuest® 3Full support 1
LabQuest 2 (discontinued)Full support 1 2

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
iOS
Software
InterfaceGraphical Analysis App for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
No interface requiredFull supportIncompatible
LabQuest® 3Full support 1 2Full support 1
LabQuest 2 (discontinued)Full support 1 2 3Full support 1 3

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  2. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Android
Software
InterfaceGraphical Analysis App for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
No interface requiredFull supportIncompatible
LabQuest® 3Full support 1 2Full support 1
LabQuest 2 (discontinued)Full support 1 2 3Full support 1 3

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  2. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Python
Software
InterfacePython
No interface requiredFull support
Javascript
Software
InterfaceJavascript
No interface requiredFull support
LabVIEW
Software
InterfaceNI LabVIEW

What's Included

Go Direct Thermocouple

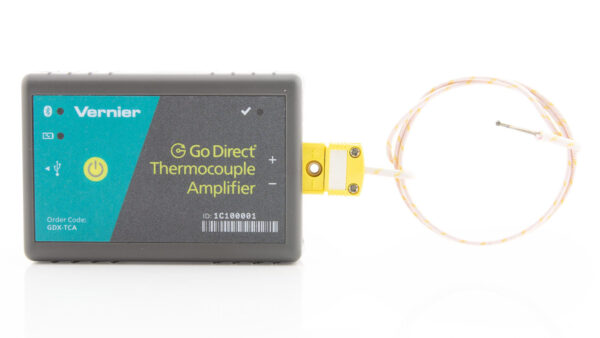

  • Go Direct Thermocouple Amplifier

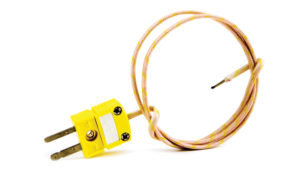

  • Type-K thermocouple wire
  • Micro USB Cable

Go Direct Thermocouple Amplifier

  • Go Direct Thermocouple Amplifier
  • Micro USB Cable

Accessories

There are no accessories available for this product.

Support

Warranty

5-year limited warranty (1 year on battery)
See our warranty policy

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
