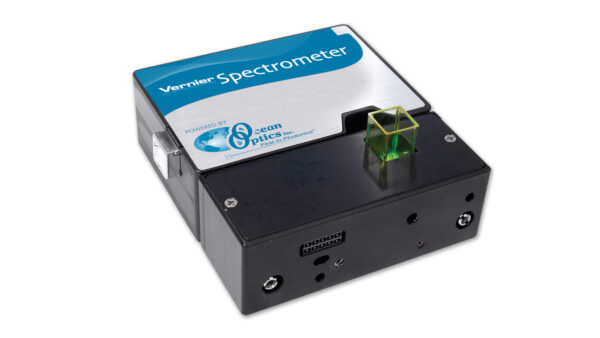

Vernier Spectrometer

$1,999.00

Powered by Ocean Optics™ technology, the Vernier Spectrometer is a portable VIS-NIR spectrometer which connects directly to your computer with a standard USB cable. It is a fully functioning spectrophotometer that gives precise measurements instantly over a range of 380–950 nm.

ORDER CODE: V-SPEC Categories ,

Powered by Ocean Optics

The Vernier Spectrometer, powered by Ocean Optics™ technology, connects directly to your computer with a standard USB cable. It is a fully functioning visible light spectrophotometer giving precise measurements instantly over a range of 380–950 nm.

A Full Spectrum of Uses

Use the Vernier Spectrometer to:

  • Measure the absorbance spectrum of an aqueous sample.
  • Conduct Beer’s law experiments at one or more wavelengths simultaneously.
  • Conduct kinetic studies of absorbance versus time at one or more wavelengths.
  • Conduct equilibrium studies of absorbance versus time and/or absorbance versus concentration.

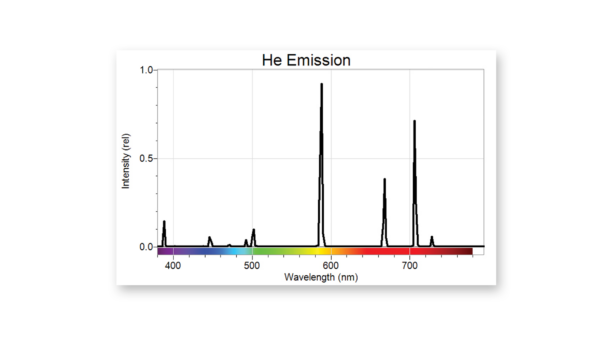

  • Conduct emission spectrum analysis with the fiber optic assembly.

Key Features

  • The Vernier Spectrometer is a truly portable device, measuring 10 cm x 9 cm x 3 cm.
  • One-step calibration of the full spectrum saves precious lab time.
  • A complete visible light spectrum, 380–950 nm, is collected in a fraction of a second.
  • The open cuvette holder allows for access to the sample during testing.
  • Other Vernier sensors can be used simultaneously with the Vernier Spectrometer, expanding your students’ opportunities to pursue a variety of research projects.
  • The Vernier Spectrometer draws its power from your computer, eliminating the need for an additional power source.
  • Works with many Ocean Optics accessories.

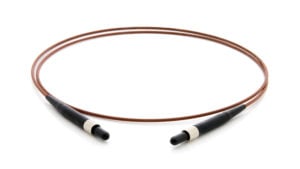

Optical Fiber Accessories

Use the optical fiber assemblies to conduct emission spectrum studies. The Vernier Optical Fiber consistently deliver uniform results with minimal signal variance. It connects easily to a Vernier Spectrometer or a Red Tide Ocean Optics Spectrometer. The fiber is 1 m in length.

Specifications

  • Dimensions: 10 cm × 8.7 cm × 3 cm (includes cuvette holder/light source)
  • Power: from computer via USB cable
  • Wavelength Range: 380 nm–950 nm
  • Optical Resolution: 3.0 nm (as determined with 656 nm hydrogen emission spectral line FWHM) and 3.0 nm (as determined with 486 nm hydrogen emission spectral line FWHM)
  • Wavelength Accuracy: 2.0 nm
  • Photometric Accuracy: ± 5.0% (as determined with nickel sulfate standards between 0.1 – 1.0 A.U.)

Compatibility Requirements

LabQuest 2

Full Support

The Vernier Spectrometer is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.15
No interface requiredIncompatibleFull support
LabQuest 2Full support 1Incompatible

Compatibility Notes

  1. Full support of this sensor is only available when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing. The software does not support this sensor when connected to a computer or Chromebook via USB.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
LabQuest 2Full support 1

Compatibility Notes

  1. Full support of this sensor is only available when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing. The software does not support this sensor when connected to a computer or Chromebook via USB.
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.

What's Included

  • Spectrometer with light source/cuvette holder
  • (1) Package of 15 plastic cuvettes and lids
  • (1) USB cable
  • User manual

Support

User Manual

View User Manual

Warranty

3-year limited warranty (3 months on lamp, cuvettes are excluded)

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
