How can I use Go Direct Photogates (GDX-VPG) to time the Science Olympiad Scrambler event?

The Science Olympiad Scrambler event suggests using laser photogates to time the scrambler devices. The devices must traverse an 8-meter course. Our photogate cables do not reach that far, but they can be modified. These instructions are for using a photogate with a laser, making an extra-long cord, and for timing using Vernier software.

Part 1: Using Vernier (BTD) Photogates with a laser

Materials available from Vernier:
2 –Photogate (VPG-BTD)
2 –Laser Pointer (LASER)
3 –Digital Extension Cable (EXT-BTD)
1 –LabQuest® 3 (LABQ3) or LabQuest Stream (LQ-STREAM) or LabQuest Mini (LQ-MINI)

You will need two photogates and two class 2 lasers. Science Olympiad prohibits the use of class 3 or higher lasers. Many commercial laser pointers will work. Each photogate will have to be securely mounted at the correct height (see http://vnr.st/xe1d ) and will need its own laser pointer. See http://vnr.st/xff8 or http://vnr.st/xf3f


Part 2: Making the extra-long cord

There are several ways to make the extra-long cord you need.

1. You can purchase three BTD extension cables.
Attach one to one of the photogates’ cable and attach two to the other photogates’ cable. Then connect both photogates to your interface. Connect the photogate at the beginning of the course to DIG 1 and then connect the photogate at the end of the course to DIG 2. The software measures the times based on the order you plug in the two photogates or the order the gates are discovered when the software launches.

2. Purchase 20 feet of RJ-12 (6-conductor US telephone wire [6P6C wire]) and a double-female RJ-12 connector.
Connect one end of the RJ-12 wire to a photogate. (Make sure you purchase 6-wire phone cable; 4-wire phone cable will not work.) Connect the double-female connector to the other end of the wire. Connect one photogate cable to other side of the double-female connector. Then connect both photogates to your interface. Connect the photogate at the beginning of the course to DIG 1 and then connect the photogate at the end of the course to DIG 2. The software measures the times based on the order you plug in the two photogates or the order the gates are discovered when the software launches.

3. Splice 6-conductor wire into an existing photogate cable. BT Photogate Cable (PG-BTD)

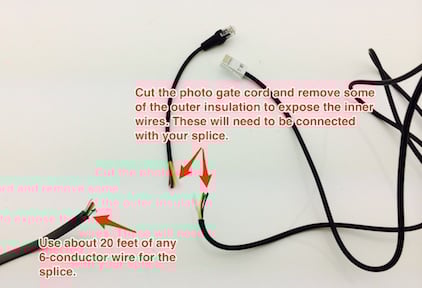

Purchase (at a hardware or hobby store) enough 6-conductor wire to splice into a standard photogate cable. You will need a little more than 6 meters of wire (20 feet will be plenty). To be sure you are connecting the wires correctly, you may want to connect one wire at a time, such as red at both ends, orange at both ends, yellow at both ends, etc. We recommend soldering the connections for best results, and you will have to insulate the joints from touching each other. Then connect both photogates to your interface. Connect the photogate at the beginning of the course to DIG 1 and then connect the photogate at the end of the course to DIG 2. The software measures the times based on the order you plug in the two photogates or the order the gates are discovered when the software launches.


Part 3: Collecting data

Using LabQuest App (original LabQuest, LabQuest 2, or LabQuest 3)
To use LabQuest App for timing the scrambler, first connect the photogates to the LabQuest as noted above. On LabQuest 2, the DIG 1 and DIG 2 ports are under a black rubber flap next to the power button. The photogates should auto-identify and pop up on the LabQuest screen. See: Why won't my Motion Detector (or other digital sensor) plug into the channels of my LabQuest 2?

Tap the gray “Mode:” box on the right side of the LabQuest screen. Change the Photogate Mode from “Motion” to “Pulse.” Then input the correct distance into the “Distance between gates” box. Change the setting to end data collection after 4 events, since each “blocking” and “unblocking” of a photogate is counted as an event.

When you are ready to time a run, first tap the Collect button on LabQuest. Then signal that the contestant can start their vehicle. Once the vehicle has passed through both photogates, the time of travel and the average velocity of the vehicle will be shown to the right of the graphs.

Using Logger Pro 3
To use Logger Pro 3 for timing the scrambler, first connect the photogates to the interface as noted above. Launch the Logger Pro 3 software and open the file “Pulse Timer-Two Gates.cmbl” found in Experiments > Probes & Sensors > Photogate.

When you are ready to time a run, first click the Collect button in Logger Pro 3. Then signal that the contestant can start their vehicle. Once the vehicle has passed through both photogates, the time of travel will be shown in the data table.

Using Graphical Analysis 4
To use Graphical Analysis 4 for timing the scrambler, first connect the photogates to the interface as noted above. Launch Graphical Analysis 4 and connect to your interface. The photogates should automatically identify.

Click or tap Mode and change the Photogate Timing mode Measurement to “Timer or Period – Time between gates”. Click or tap DONE. Click or tap View Options and select Table.

When you are ready to time a run, first click the Collect button in Graphical Analysis 4. Then signal that the contestant can start their vehicle. Once the vehicle has passed through both photogates, the time of travel will be shown in the data table.
