Centripetal Force Apparatus

Centripetal Force Apparatus

Centripetal Force Apparatus

The Centripetal Force Apparatus has been replaced by the Go Direct Centripetal Force Apparatus

The Centripetal Force Apparatus allows you to investigate the relationship between centripetal force, angular velocity, mass, and radius.

ORDER CODE: CFA Categories ,

Out of stock

force sensor measures the centripetal force exerted on a mass as it moves in a circle. A photogate can be used to measure the angular speed. Different masses can be added to the platform and positioned at variable radii. The platform can be driven by a falling mass. The apparatus also accommodates the Vernier Wireless Dynamic Sensor System or Go Direct® Force and Acceleration Sensor to measure force, which provides the best set of data. Sensors are sold separately.


Centripital Force Apparatus - Tech Tips with Vernier
Centripetal Force Apparatus - Tech Tips (9:06)


This apparatus does not include the necessary sensors. Here are sensors and combinations of sensors that can be used:

Dual-Range Force Sensor and Photogate
Go Direct Force and Acceleration
Dual-Range Force Sensor and Go Direct Photogate

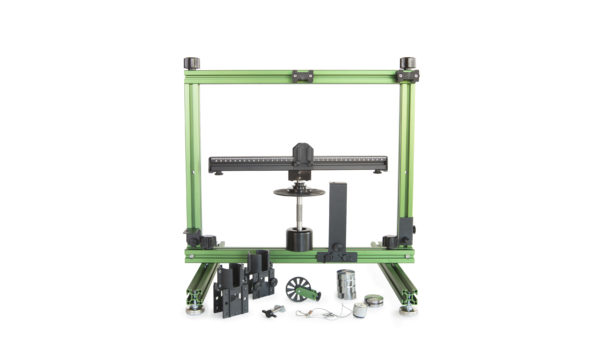

What's Included

  • Rectangular Frame
  • Support Legs (2)
  • Rotating Assembly consisting of Rotational Shaft, Encoder Wheel, 3-Step Pulley, Rotating Beam, Bearing Housing
  • Sliding Carriage to hold the test masses
  • Counterbalance Carriage to balance the rotating beam
  • Swivel Assembly (connects Sliding Carriage to a Dual-Range Force Sensor)
  • Ultra Pulley
  • Ultra Pulley Bracket (preinstalled on Assembly)
  • Photogate Bracket with 1/4 x 20 mounting screw (preinstalled on Assembly)
  • Dual-Range Force Sensor Bracket (preinstalled on Assembly)
  • 50 g masses (2)
  • 100 g masses (4)
  • Hook (attaches a Go Direct® Force and Acceleration Sensor to the Sliding Carriage)
  • Mounting Screw and T Nut to secure a Go Direct® Force and Acceleration Sensor
  • User manual


AccessoryOrder CodePriceQuantity
Centripetal Force Apparatus Moment of Inertia Accessory KitCFA-MIK$219.00
Centripetal Force Apparatus Sensor BracketCFA-SBK$19.00
Replacement PartOrder CodePriceQuantity
Counterbalance Carriage for Centripetal Force ApparatusesFC-CFA$5.00
Sliding Carriage for Centripetal Force ApparatusesSC-CFA$14.00
Replacement Masses for Centripetal Force ApparatusM-CFA$42.00
Replacement String and Swivel for Centripetal Force ApparatusSA-CFA$29.00


Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
