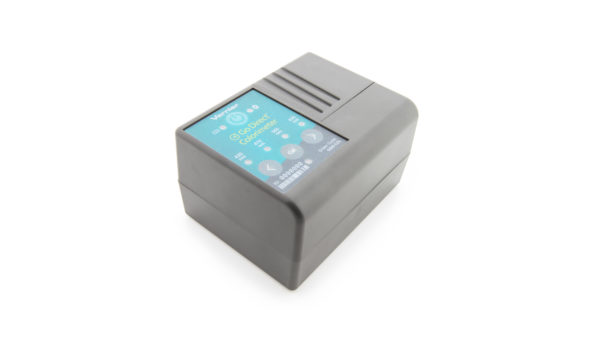

Go Direct® Colorimeter

Go Direct® Colorimeter

Go Direct® Colorimeter

$119.00

The 4-wavelength Go Direct Colorimeter measures absorbance or transmittance of a liquid sample. It connects via Bluetooth® wireless technology or via USB to your device.

ORDER CODE: GDX-COL Categories ,

Use this sensor to explore absorbance and percent transmittance in a variety of experiments including Beer’s law (absorbance vs. concentration) and kinetic studies (concentration vs. time). Students select between four wavelengths (430 nm, 470 nm, 565 nm, 635 nm) to set up their experiment.

Go Direct Colorimeter features one-step calibration for all four wavelengths. It’s as simple as inserting a cuvette of distilled water and pressing the Calibrate button.

Go Direct Colorimeter can be used in a variety of experiments:

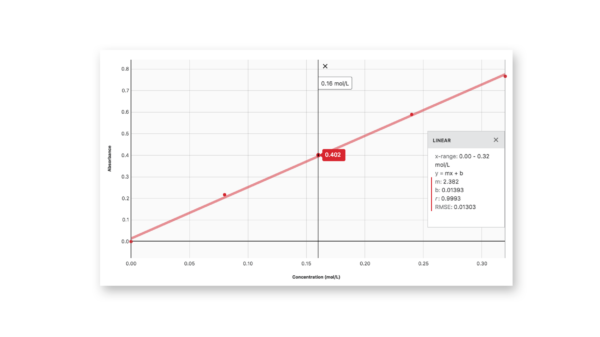

  • Conduct Beer’s law investigations.
  • Determine the concentration of unknown solutions.
  • Study changes in concentration vs. time.
  • Monitor reaction rates.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Monitor battery life directly from our free Vernier Graphical Analysis™ app, as well as Graphical Analysis Pro and LabQuest® 3. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting–no interruptions or inconvenience to you or your students.

Wireless or Wired—The Flexibility to Choose

Our Go Direct sensors connect directly to your mobile device, Chromebook, or computer using our free Graphical Analysis app–no additional equipment or software purchases are necessary. Go Direct sensors can be used wired via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the solution best for your classroom or laboratory.

Specifications

  • Range: 0 to 3 (absorbance)
  • Useful range:
    • 0.05 to 1.0 (absorbance)
    • 90% to 10% transmittance (%T)
  • Wavelengths: 430 nm, 470 nm, 565 nm, 635 nm
  • Connections:
    • Wireless: Bluetooth
    • Wired: USB

Experiments

High School (18 experiments)
College (14 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest® 3Full support
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Incompatible

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Computers
Software
InterfaceGraphical Analysis App for Computers
Version 4.10
No interface requiredFull support 1
LabQuest® 3Full support 2 3
LabQuest 2 (discontinued)Full support 2 3

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Chromebook
Software
InterfaceGraphical Analysis App for Chrome
Version 4.10
No interface requiredFull support
LabQuest® 3Full support 1 2
LabQuest 2 (discontinued)Full support 1 2

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
iOS
Software
InterfaceGraphical Analysis App for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
No interface requiredFull supportFull support
LabQuest® 3Full support 1 2 3Full support 1 2 3
LabQuest 2 (discontinued)Full support 1 2 3Full support 1 2 3

Compatibility Notes

  1. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  2. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Android
Software
InterfaceGraphical Analysis App for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
No interface requiredFull supportIncompatible
LabQuest® 3Full support 1 2 3Full support 1 2
LabQuest 2 (discontinued)Full support 1 2 3Full support 1 2

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  2. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  3. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
Python
Software
InterfacePython
No interface requiredFull support
Javascript
Software
InterfaceJavascript
No interface requiredFull support 1

Compatibility Notes

  1. A wireless Bluetooth® connection can be made with Go Direct sensors on any platform running a browser with WebBluetooth support. However, only a few operating systems have been tested and testing has been limited.
LabVIEW
Software
InterfaceNI LabVIEW

What's Included

  • Go Direct Colorimeter
  • Micro USB Cable
  • 3.5 mL cuvettes (15)

Accessories

AccessoryOrder CodePriceQuantity
Go Direct® Charge StationGDX-CRG$69.00
Cuvette RackCUV-RACK$9.00
Plastic Cuvettes (Visible Range)CUV$19.00

Support

Warranty

5-year limited warranty (1 year on battery, consumables excluded)
