Colorimeter

Colorimeter

Colorimeter

$119.00

The Colorimeter is great for Beer’s law experiments, determining the concentration of unknown solutions, or studying changes in concentration vs. time.

ORDER CODE: COL-BTA Categories ,

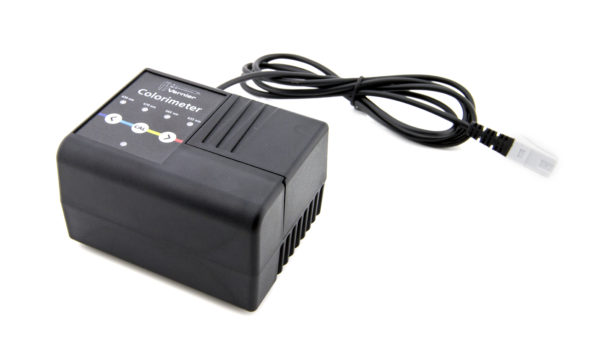

This 4-wavelength Colorimeter measures the amount of light transmitted through a sample at a user-selectable wavelength in order to determine the concentration of a solution. Features such as automatic sensor identification and one-step calibration make this sensor easy to use.

Specifications

  • Range: 0 to 3 (absorbance)
  • Useful Range:
    • 0.05 to 1.0 (absorbance)
    • 90% to 10% transmittance (%T)
  • Wavelengths: 430 nm, 470 nm, 565 nm, 635 nm
  • Typical Resolution: 0.035 %T
  • Supply voltage: 5VDC +/- 25 mV
  • Supply current: 40 mA (typical)
  • Power up time: 700 ms (maximum)
  • Output voltage range: 0 – 4 V
  • Transfer function: Vout = 0.035 x (%T) + 0

Experiments

Middle School (4 experiments)
High School (22 experiments)
College (16 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Colorimeter is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest StreamFull support 1Full supportFull support 2
EasyLinkIncompatibleFull support 3 4Full support 3 4
Go!LinkFull support 4Full support 4Full support 4
LabQuest 2Full supportFull supportFull support
LabQuest MiniFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
  3. Requires an Easy to Go! adapter
  4. This sensor and interface combination can be problematic when measuring at 565 nm.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
EasyLinkFull support 1 2
Go!LinkFull support 2
LabQuest 2Full support
LabQuest MiniFull support
LabQuest StreamFull support 3

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. This sensor and interface combination can be problematic when measuring at 565 nm.
  3. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportFull support

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportIncompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LEGO MINDSTORMS
Software
InterfaceLEGO® MINDSTORMS® EV3
Version 1.1
LEGO® MINDSTORMS® NXT
Version 2.0
NXT Sensor AdapterPartial support 1Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
LabVIEW
Software
InterfaceNI LabVIEW
Go!LinkFull support 1
SensorDAQFull support
Vernier myDAQ AdapterFull support 2
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 2Full support

Compatibility Notes

  1. This sensor and interface combination can be problematic when measuring at 565 nm.
  2. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
EasyLinkFull support 1 2
Go!LinkFull support 2

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. This sensor and interface combination can be problematic when measuring at 565 nm.
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataMate
Version 1.15
TI-84 SmartViewDataQuest
Version 4.2
TI-Nspire Software
EasyLinkFull support 1 2IncompatibleFull support 2 3Full support 2Full support 2 3
Go!LinkFull support 1 2 4IncompatibleFull support 2Full support 2 4Full support 2
TI-Nspire Lab CradleIncompatibleIncompatibleIncompatibleFull supportFull support
CBL 2Full support 5Full support 5 6IncompatibleIncompatibleIncompatible

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. This sensor and interface combination can be problematic when measuring at 565 nm.
  3. Requires an Easy to Go! adapter
  4. Requires a Go! to Easy adapter
  5. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  6. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

  • Vernier Colorimeter
  • (15) 3.5 mL cuvettes

Accessories

AccessoryOrder CodePriceQuantity
Water Depth SamplerWDS$89.00
Cuvette RackCUV-RACK$9.00
Plastic Cuvettes (Visible Range)CUV$19.00

Support

Warranty

5-year limited warranty (consumables excluded)

Replacement Parts

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
