Go Direct® Emissions Spectrometer

Go Direct® Emissions Spectrometer

Go Direct® Emissions Spectrometer

$950.00

The Go Direct® Emissions Spectrometer enables students to conduct emissions analysis; measure spectra of light-emitting samples in the range of 350 to 950 nm; and examine emissions spectra of light bulbs, spectrum tubes, or the sun.

ORDER CODE: GDX-SPEC-EM Categories ,

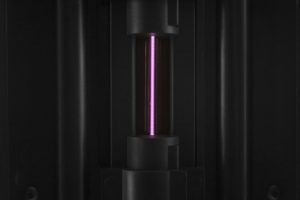

Elevate emissions analysis with the Go Direct Emissions Spectrometer. This device connects via Bluetooth® wireless technology or USB to a tablet, computer, or LabQuest®. With the Go Direct Emissions Spectrometer, students can measure spectra of light-emitting samples in the range of 350 to 950 nm. The sensitivity of the linear CCD allows this spectrometer to be used with light bulbs, spectrum tubes, or the sun.

Display and analyze spectral data on LabQuest 2, LabQuest 3, Logger Pro®, or Vernier Spectral Analysis®. For analyzing the emissions of a spectrum tube, an optical fiber is recommended. For measuring spectra of large sources (such as the sun) or comparing types of light bulbs, the optical fiber is not necessary.

Specifications

  • Dimensions: 10.1 cm × 7.0 cm × 4.5 cm
  • Power supply: USB powered
  • Detector: Linear CCD
  • Wavelength range: 350–900 nm
  • Wavelength reporting interval: 1 nm
  • Optical resolution: 3.0 nm (as determined by the full width of half maximum of hydrogen 434 nm peak)
  • Wavelength accuracy: ±2 nm (as determined by hydrogen peaks)

Experiments

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support 1
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Full support 1

Compatibility Notes

  1. Connect this sensor via USB. Wireless data collection is not supported.
Computers
Software
InterfaceSpectral Analysis for ComputersGraphical Analysis App for ComputersLogger Pro
No interface requiredFull support 1IncompatibleFull support 2
LabQuest 3IncompatibleFull support 3Incompatible
LabQuest 2 (discontinued)IncompatibleFull support 3Incompatible

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Connect this sensor via USB. Wireless data collection is not supported.
  3. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
Chromebook
Software
InterfaceSpectral Analysis for ChromeGraphical Analysis App for Chrome
No interface requiredFull supportIncompatible
LabQuest 3IncompatibleFull support 1
LabQuest 2 (discontinued)IncompatibleFull support 1

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
iOS
Software
InterfaceSpectral Analysis for iOSGraphical Analysis App for iOSGraphical Analysis GW for iOS
No interface requiredFull supportIncompatibleIncompatible
LabQuest 3IncompatibleFull support 1 2Full support 1 2
LabQuest 2 (discontinued)IncompatibleFull support 1 2Full support 1 2

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  2. Connect this sensor directly to an iOS or Android™ device via wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to an iOS or Android device via Wireless Data Sharing.
Android
Software
InterfaceSpectral Analysis for AndroidGraphical Analysis App for AndroidGraphical Analysis GW for Android
No interface requiredFull supportIncompatibleIncompatible
LabQuest 3IncompatibleFull support 1 2Full support 1 2
LabQuest 2 (discontinued)IncompatibleFull support 1 2Full support 1 2

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  2. Connect this sensor directly to an iOS or Android™ device via wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to an iOS or Android device via Wireless Data Sharing.

What's Included

  • Go Direct Emissions Spectrometer
  • Mini USB cable
  • USB Power Adapter

Accessories

AccessoryOrder CodePriceQuantity
Mini USB-C CableCB-USB-C-MINI$9.00
Vernier Emissions FiberVSP-EM-FIBER$88.00
Replacement PartOrder CodePriceQuantity
Mini USB CableCB-USB-MINI$5.00

Support

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
