Go Direct® Polarimeter

Go Direct® Polarimeter

Go Direct® Polarimeter

$499.00

The concept of chirality can be difficult for students to visualize. Go Direct Polarimeter provides a visual representation of this concept by measuring the optical rotation of optical isomers such as sugars, amino acids, and proteins. The Go Direct Polarimeter is simple to use, includes free, downloadable experiments, and is supported by the free Vernier Instrumental Analysis™ app.

Go Direct® Polarimeter will be available January 2021
ORDER CODE: GDX-POL Categories ,

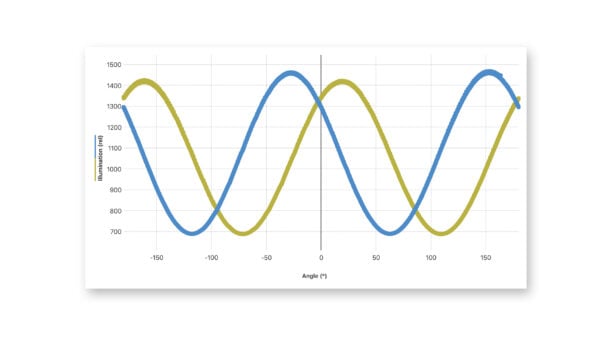

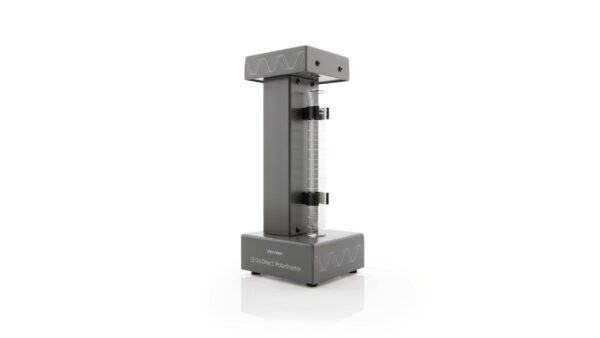

Its unique vertical layout and lack of custom glassware make this polarimeter very student friendly. In addition, the analyzer is automatically rotated by an internal motor giving students more time to understand experiments such as the reaction kinetics of HCl and sucrose. The 589 nm LED makes it ideal for comparing optical rotation values to those in literature, allowing students to calculate specific rotation for sucrose, fructose, and other optically active samples. Students no longer have to determine the optical maximum with their eye—they now have a graph that shows a clear change in the light’s polarization.

Rechargeable Battery—Ready When You Are

The robust rechargeable battery offers long battery life and provides always-ready operation when using the sensor wirelessly. Should the battery run low, simply connect the sensor to the charging cable and keep on collecting—no interruptions or inconvenience to you or your students.

Wired or Wireless—The Flexibility to Choose

Go Direct Polarimeter connects directly to your mobile device, Chromebook, or computer using our free Vernier Instrumental Analysis™  app—no additional equipment or software purchases are necessary. Go Direct sensors connect via USB or wirelessly via Bluetooth® wireless technology, allowing you to choose the best solution for your laboratory.

Specifications

  • Light source: LED
  • Wavelength (nominal): 589 nm
  • Accuracy (optical rotation measurements): ±1°

Experiments

Easily incorporate polarimetry into your curriculum with student instructions and essential instructor information for each of the following experiments. The experiments will be available for download January 2021.

  • Understanding Polarimetry
  • Observing the Reaction Kinetics of Sucrose with Polarimetry

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest® 3Coming soon
LabQuest 2 (discontinued)Coming soon 1
LabQuest (discontinued)Incompatible

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Computers
Software
InterfaceInstrumental Analysis for Computers
No interface requiredFull support
Chromebook
Software
InterfaceInstrumental Analysis for Chrome
No interface requiredFull support
Android
Software
InterfaceInstrumental Analysis for Android
No interface requiredFull support
iOS
Software
InterfaceInstrumental Analysis for iOS
No interface requiredFull support

What's Included

  • Go Direct Polarimeter with rechargeable battery
  • Sample cell
  • Micro USB Cable

Accessories

AccessoryOrder CodePriceQuantity
Chemical Polarimeter Accessory CellsCELLS-POL$66.00

Support

Warranty

5-year limited warranty (1 year on battery, consumables excluded)
See our warranty policy

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
