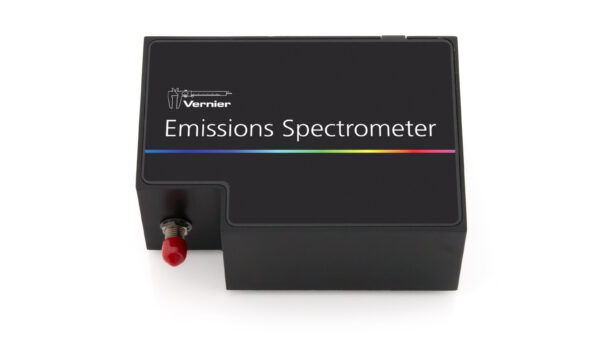

Vernier Emissions Spectrometer

$799.00

Use the Vernier Emissions Spectrometer to conduct emissions analysis. It gives precise measurements over a range of 350–900 nm to examine spectra of light bulbs, spectrum tubes, or the sun.

ORDER CODE: VSP-EM Categories ,

This is the perfect tool to conduct emissions analysis. The Vernier Emissions Spectrometer allows you to instantly collect emissions spectra from light bulbs, gas discharge tubes, or the sun. It connects directly to your computer or LabQuest with a standard USB cable and gives precise measurements over a range of 350–900 nm.

We recommend using the Vernier Emissions Spectrometer without an optical fiber for measuring spectra of large sources, such as the sun, or for comparing types of light bulbs.

An optical fiber is recommended for analyzing the emissions of a gas spectrum tube.

Specifications

  • Dimensions: 10.1 cm × 7.0 cm × 4.5 cm
  • Power Supply: USB powered
  • Detector: Linear CCD
  • Wavelength Range: 350–900 nm
  • Wavelength Reporting Interval: 1 nm
  • Optical Resolution: 3 nm (as determined by the full width of half maximum of hydrogen 434 nm peak)
  • Wavelength Accuracy: ±2 nm (as determined by hydrogen peaks)

Experiments

High School (2 experiments)
College (2 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Vernier Emissions Spectrometer is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceSpectral Analysis for Computers
Version 4.8
Graphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
No interface requiredFull supportIncompatibleFull support
LabQuest 2IncompatibleFull support 1Incompatible

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing.
Chromebook
Software
InterfaceSpectral Analysis for Chrome
Version 4.8
Graphical Analysis 4 for Chrome
Version 4.10
LabQuest 2IncompatibleFull support 1
No interface requiredFull supportIncompatible

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing.
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
No interface requiredFull support

What's Included

  • Vernier Emissions Spectrometer
  • USB cable

Accessories

AccessoryOrder CodePriceQuantity
Mini USB-C CableCB-USB-C-MINI$9.00
Vernier Emissions FiberVSP-EM-FIBER$88.00

Support

Warranty

5-year limited warranty

Replacement Parts
