Vernier Mini GC Plus

$1,999.00

The Mini GC Plus is a portable instrument for separating, analyzing, and identifying substances contained in a volatile liquid or gaseous sample.

ORDER CODE: GC2-MINI Categories ,

Features of the Mini GC Plus

The Mini GC Plus can detect more compounds than the original Mini GC. The features that make this possible include:

  • The maximum temperature of the column is 160°C, offering more flexibility in designing temperature profiles.
  • The MEMS chip sensor can be set at either of two levels of sensitivity.
    1. Standard sensitivity mode works well for polar compounds such as: ketones, alcohols, and esters.
    2. High sensitivity mode works well for compounds such as halogenated alkanes and substituted aromatics, as well as mixtures with one or more compound of low concentration.

Use room air as the carrier gas

Developed by Seacoast Science, the Mini GC Plus uses an efficient, software-controlled internal pump system. This design allows our Mini GC Plus to use room air as the carrier gas.

Use Vernier’s award-winning software for column control, collection, and peak integration

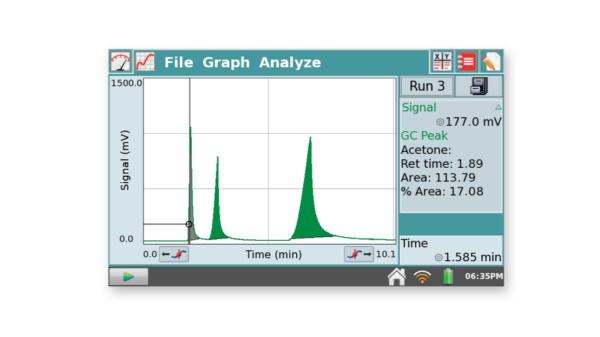

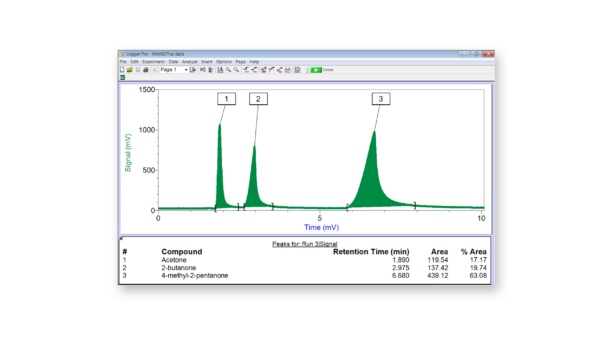

With either Logger Pro or the LabQuest App, peak integration analysis and retention-time determination are built right into the software.

Classes of compounds that can be used in Vernier Mini GC Plus

COMPOUND TYPE TYPICAL COMPOUNDS RANGE OF ACCEPTABLE BOILING POINTS
Alcohols C1 – C6 50 – 175°C
Aldehydes C1 – C8 50 – 175°C
Amides C3 – C4 150 – 250°C
Polar-Substituted Aromatic Hydrocarbons C6 – C12 100 – 150°C
Carboxylic Acids C1 – C4 100 – 150°C
Esters C2 – C10 30 – 200°C
Ethers C2 – C8 30 – 110°C
Heterocycles C5 – C8 100 – 150°C
Halogenated hydrocarbons C1 – C8 30 – 120°C
Ketones C3 – C8 50 – 175°C
Nitriles C2 – C5 50 – 120°C
Nitroalkane/aromatic C1 – C6 100 – 210°C
Phosphonates C3 – C9 180 – 210°C
Sulfides C4 – C8 90 – 150°C

Specifications

MCCD Detector

The unique Seacoast Science MEMS Chemi-Capacitive Detector is state-of-the-art technology that allows air to be used as a carrier gas (patents pending).

The MEMS chip sensor can be set at either of two levels of sensitivity.

  1. Standard sensitivity mode works well for polar compounds such as: ketones, alcohols, and esters.
  2. High sensitivity mode works well for compounds such as halogenated alkanes and substituted aromatics, as well as mixtures with one or more compound of low concentration.

Carrier Gas

Use room air as the carrier gas.

Column

High-quality Restek MXT-1 Stainless (11 meter) capillary column.

Pressure Regulation

Software-controlled pressure regulation from 1–21 kPa above ambient.

Injection

  • Comes with one high-quality 1µL glass syringe, 2-7/8 inch stainless needle with non-coring beveled tip and needle guard, 1.5 inch injectable length.
  • Injection is direct from syringe to column
  • 2 septa included with purchase
    (~150 injections/septum)
  • Injection volume: 0.01 to 1.0 µL

Size

  • 1.3 kg
  • 10.8 cm x 13.3 cm x 19.1 cm

Temperature Regulation

Software-controlled temperature regulation from 30–160°C

Column Temperature Ramp

  • Maximum of 10°C/minute.
  • Short Warm-up time: Fast for most labs, <10 minute max

Compatibility Requirements

LabQuest 2

Full Support

The Vernier Mini GC Plus is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.15
No interface requiredIncompatibleFull support
LabQuest 2Full support 1Incompatible

Compatibility Notes

  1. Full support of this sensor is only available when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing. The software does not support this sensor when connected to a computer or Chromebook via USB.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
LabQuest 2Full support 1

Compatibility Notes

  1. Full support of this sensor is only available when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing. The software does not support this sensor when connected to a computer or Chromebook via USB.
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.

Experiments

College (8 experiments)

Gas Chromatography Inquiry Experiments from Included Lab Manual

The Vernier Mini GC Plus includes a lab manual, Gas Chromatography Investigations with the Mini GC, with 5 gas chromatography inquiry experiments. Preview and/or edit the experiments for your curriculum by downloading all 5 labs below or individually.

  1. Using a Gas Chromatograph: Identifying Unknown Compounds
  2. Synthesizing Ethyl Acetate by Fischer Esterification
  3. Investigating Free Energy Relationships Using Gas Chromatography
  4. Fractional Distillation of Esters
  5. Investigating Gas Chromatography

Download all 5 Gas Chromatography Labs

What's Included

  • Vernier Mini GC Plus unit
  • AC power adapter
  • Hamilton Syringe (1.0 µL volume)
  • Two extra septa (a third septum is already installed)
  • USB cable
  • Gas Chromatography Investigations with the Mini GC, an electronic lab book with five investigations, available as a free download from your Vernier account
  • Carrying case
  • User manual

Support

User Manual

View User Manual

Warranty

2-year limited warranty (column, sensor, syringe, and septa are excluded) from Seacoast
