Surface Temperature Sensor

Product image for Surface Temperature Sensor

The Surface Temperature Sensor is designed for use in situations in which low thermal mass or flexibility is required, or for a skin temperature measurement.

Description

The Surface Temperature Sensor has an exposed thermistor that results in an extremely rapid response time. This design allows for use in air and water. For temperature measurements in harsher environments that require a more durable probe, we recommend our Stainless Steel Temperature Probe.

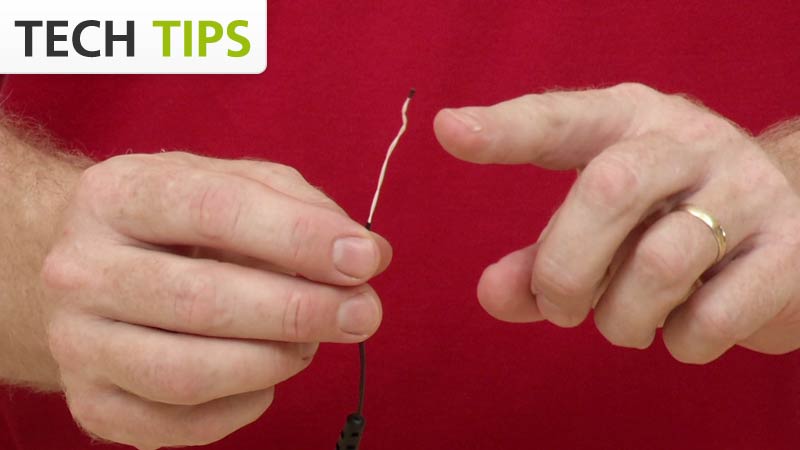

Videos

Specifications

  • Temperature range: –25 to 125°C (–13 to 257°F)
  • Maximum temperature that the sensor can tolerate without damage: 150°C
  • Resolution (LabQuest 2, LabQuest, LabQuest Mini, Go!Link, LabPro):
    • 0.08°C (–25 to 0°C)
    • 0.03°C (0 to 40°C)
    • 0.1°C (40 to 100°C)
    • 0.25°C (100 to 125°C)
  • Temperature sensor: 20 kΩ NTC Thermistor
  • Accuracy: ±0.2°C at 0°C, ±0.5°C at 100°C
  • Response time (time for 90% change in reading)
    • 50 seconds (in still air)
    • 20 seconds (in moving air)
  • Probe dimensions: Probe length (handle plus body) 15.5 cm
  • Important: For use in air and water only. For temperature measurements in harsher environments, we recommend the Stainless Steel Temperature Sensor.

Download the user manual for full specifications

Experiments and Lab Ideas

Select a lab book to see a list of experiments and more information.

Lab Ideas and Innovative Uses

What’s Included

Sensor Requirements

The Surface Temperature Sensor requires a compatible interface and software to collect data. Interface and software sold separately. Getting started with probeware »

Compatible Interfaces

The Surface Temperature Sensor is compatible with these interfaces:

Ordering Information

All prices are for U.S. educators.

    NameOrder CodePriceQuantity
    Surface Temperature SensorSTS-BTA$23

    Related Products

    Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications. Product usage disclaimer »

    Order Code STS-BTA
    U.S. Educator Price $23

    Sample Data

    Temperature vs. time as the water approaches boiling
    Temperature vs. time as the water approaches boiling
