$67.00

Inexpensive data collection direct to any TI-Nspire handheld or TI-84 Plus graphing calculator.

ORDER CODE: EZ-LINK Category

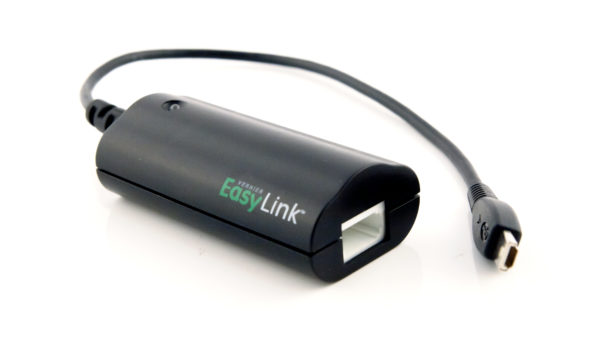

EasyLink is a single-channel interface that plugs into the USB port of a TI-84 Plus graphing Calculator or TI-Nspire Handheld. Use EasyLink and a supported sensor to explore math and science concepts found in real-world phenomena such as light, pressure, force, and more.

How to use EasyLink

  1. Connect a compatible sensor to EasyLink.
  2. Connect EasyLink to a TI-84 Plus or TI-Nspire handheld, and the Vernier data-collection software launches automatically.
  3. Press Start and you are collecting data.

Try an EasyLink Activity

Download the EasyLink math activity “Inverse Variation in Pressure Data”.

Awards

The Award of Excellence recognizes products that help educators teach with technology. EasyLink was given a rigorous test-drive by qualified educators. Evaluation criteria include quality and effectiveness, ease of use, and suitability for use in an educational environment.

What's Included

Accessories

AccessoryOrder CodePriceQuantity

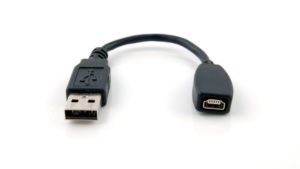

Easy to Go! AdapterMINI-USB$17.00

Calculator Specifications

TI-84 Plus or TI-84 Plus CE calculators

  • All models of TI-84 (Plus, Silver Edition, Plus C Silver Edition, and CE)
  • Calculator Operating System version 2.30 or higher
  • Vernier EasyData® App (preloaded on calculators)



TI-Nspire or TI-Nspire CAS handhelds

  • All models of handhelds (clickpad, touchpad, CX, and CX II)
  • Handheld software version 3.0 or newer
  • DataQuest Application (included in handheld software)

Compatible Sensors

TI Calculators and EasyData (62 sensors)

For All Supported Sensors

  • Use with TI-84 Plus calculators only.

Supported Sensors

Compatibility Notes

  1. This interface can only collect acceleration data from one axis.
  2. This sensor and interface combination can be problematic when measuring at 565 nm.
  3. Maximum data-collection rate on the interface may limit the sensor's response in collision experiments.
  4. Requires a BNC electrode
  5. This software cannot apply digital filters to EKG data.
  6. Requires a Heart Rate Receiver to connect to an interface
  7. Software does not support the Data Tagging feature that is typically used with this sensor.
  8. Requires an additional signal source, such as LabQuest 2 running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  9. Requires a Gas Pressure Sensor
  10. Software does not support baseline adjustment.
  11. This interface can collect voltage data or current data but not both simultaneously. As a result, the software cannot calculate resistance and power data.
  12. This interface/software combination can only collect force data; displacement measurements are not supported.
Computers and TI-84 SmartView (62 sensors)

For All Supported Sensors

Supported Sensors

Compatibility Notes

  1. This interface can only collect acceleration data from one axis.
  2. This sensor and interface combination can be problematic when measuring at 565 nm.
  3. Maximum data-collection rate on the interface may limit the sensor's response in collision experiments.
  4. Requires a BNC electrode
  5. This software cannot apply digital filters to EKG data.
  6. Requires a Heart Rate Receiver to connect to an interface
  7. Software does not support the Data Tagging feature that is typically used with this sensor.
  8. Requires an additional signal source, such as LabQuest 2 running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  9. Requires a Gas Pressure Sensor
  10. Software does not support baseline adjustment.
  11. This interface can collect voltage data or current data but not both simultaneously. As a result, the software cannot calculate resistance and power data.
  12. This interface/software combination can only collect force data; displacement measurements are not supported.
TI-Nspire Handhelds and DataQuest (63 sensors)

Supported Sensors

Compatibility Notes

  1. This interface can only collect acceleration data from one axis.
  2. This sensor and interface combination can be problematic when measuring at 565 nm.
  3. Maximum data-collection rate on the interface may limit the sensor's response in collision experiments.
  4. Requires a BNC electrode
  5. This software cannot apply digital filters to EKG data.
  6. Requires a Heart Rate Receiver to connect to an interface
  7. Requires an additional signal source, such as LabQuest 2 running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  8. Requires a Gas Pressure Sensor
  9. Software does not support baseline adjustment.
  10. Currently shipping Thermocouples (Model: TCA1816R3) use a calibration type not supported with this software. Older models of the sensor are fully supported. No software update is planned.
  11. This interface can collect voltage data or current data but not both simultaneously. As a result, the software cannot calculate resistance and power data.
  12. This interface/software combination can only collect force data; displacement measurements are not supported.
Computers and TI-Nspire Software (63 sensors)

For All Supported Sensors

Supported Sensors

Compatibility Notes

  1. This interface can only collect acceleration data from one axis.
  2. This sensor and interface combination can be problematic when measuring at 565 nm.
  3. Maximum data-collection rate on the interface may limit the sensor's response in collision experiments.
  4. Requires a BNC electrode
  5. This software cannot apply digital filters to EKG data.
  6. Requires a Heart Rate Receiver to connect to an interface
  7. Requires an additional signal source, such as LabQuest 2 running the Power Amplifier app or a computer running the Power Amplifier Function Generator Software, to control the Power Amplifier output
  8. Requires a Gas Pressure Sensor
  9. Software does not support baseline adjustment.
  10. Currently shipping Thermocouples (Model: TCA1816R3) use a calibration type not supported with this software. Older models of the sensor are fully supported. No software update is planned.
  11. This interface can collect voltage data or current data but not both simultaneously. As a result, the software cannot calculate resistance and power data.
  12. This interface/software combination can only collect force data; displacement measurements are not supported.



Incompatible Sensors

Sensors that Quickly Drain the Calculator Batteries

Support

Warranty

5-year limited warranty
See our warranty policy

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
