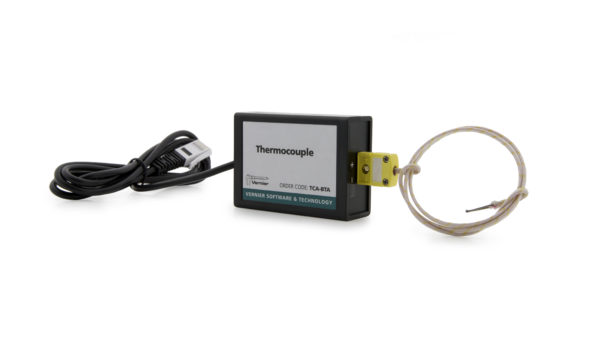

Thermocouple

Thermocouple

Thermocouple

$69.00

A simple and rugged sensor designed to measure temperature in the range of –200ºC to 1400ºC. Low cost and a wide temperature range make the Thermocouple an economical, versatile temperature sensor.

ORDER CODE: TCA-BTA Categories ,

This sensor uses type-K thermocouple wire to measure temperatures in the range of -200 to 1400˚C. It can be used to measure flame temperatures as high as 1400˚C, or liquid nitrogen temperatures at -196˚C. The Thermocouple has an internal ice-point compensation chip, so you do not need to place a reference wire in an ice-water bath. You can simply use one measuring lead to take temperature readings. Each Thermocouple is individually calibrated.

Specifications

  • Typical Accuracy:
    • 0ºC to 900ºC: ±2.2º
    • –200ºC to 0ºC: ±5ºC
    • 900ºC to 1400ºC: ±15ºC
  • Power: 11 mA @ 5 VDC
  • Typical Resolution: 0.40ºC

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Thermocouple is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
Logger Lite
Version 1.9.4
LabQuest StreamFull support 1Full supportFull support 2
EasyLinkIncompatibleFull support 3Full support 3
Go!LinkFull supportFull supportFull support
LabQuest 2Full supportFull supportFull support
LabQuest MiniFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
  3. Requires an Easy to Go! adapter
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
EasyLinkFull support 1
Go!LinkFull support
LabQuest 2Full support
LabQuest MiniFull support
LabQuest StreamFull support 2

Compatibility Notes

  1. Requires an Easy to Go! adapter
  2. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportFull support

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
LabQuest 2Full support 1Full support 1Incompatible
LabQuest StreamFull supportPartial support 2 3Incompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
  2. Data can be collected using the sensor’s default calibration only.
  3. New Thermocouples (Model: TCA1816R3) are not supported with this software. No Software updates are planned.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support
LEGO MINDSTORMS
Software
InterfaceLEGO® MINDSTORMS® NXT
Version 2.0
NXT Sensor AdapterFull support
LabVIEW
Software
InterfaceNI LabVIEW
Go!LinkFull support
SensorDAQFull support
Vernier myDAQ AdapterFull support 1
LabQuest MiniFull support
LabQuest StreamFull support
LabQuest 2Full support

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
EasyLinkFull support 1
Go!LinkFull support

Compatibility Notes

  1. Requires an Easy to Go! adapter
Texas Instruments
Software
InterfaceEasyData
Version 2.4/4.0/5.2
DataMate
Version 1.15
TI-84 SmartViewDataQuest
Version 4.2
TI-Nspire Software
EasyLinkFull support 1IncompatibleFull support 2Partial support 3Partial support 2 3
Go!LinkFull support 1 4IncompatibleFull supportPartial support 3 4Partial support 3
TI-Nspire Lab CradleIncompatibleIncompatibleIncompatiblePartial support 3Partial support 3
CBL 2Full support 5Partial support 3 5 6IncompatibleIncompatibleIncompatible

Compatibility Notes

  1. Use with TI-84 Plus calculators only.
  2. Requires an Easy to Go! adapter
  3. Currently shipping Thermocouples (Model: TCA1816R3) use a calibration type not supported with this software. Older models of the sensor are fully supported. No software update is planned.
  4. Requires a Go! to Easy adapter
  5. CBL 2 and LabPro interfaces cannot be used with TI-84 Plus CE calculators.
  6. DataMate cannot be used with color screen TI-84 Plus calculators; use EasyData with these calculators.

What's Included

  • Vernier Thermocouple
  • Type-K Thermocouple Wire

Accessories

There are no accessories available for this product.

Support

Warranty

5-year limited warranty

Replacement Parts

Contact Us
