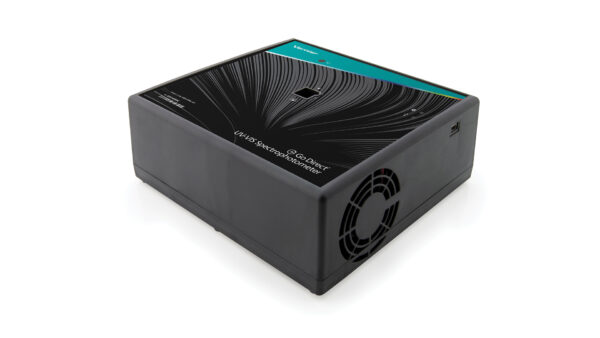

Go Direct® UV-VIS Spectrophotometer

Go Direct® UV-VIS Spectrophotometer

Go Direct® UV-VIS Spectrophotometer

$2,499.00

The Go Direct® UV-VIS Spectrophotometer connects to your device via Bluetooth® wireless technology or USB to generate full spectra, Beer’s law data, and kinetic traces of ultraviolet and visible-absorbing samples (such as aspirin, DNA, proteins, and NADH).

ORDER CODE: GDX-SPEC-UV Categories ,

Simplify the measurement of absorbance spectra of chemical and biochemical compounds with the Go Direct UV-VIS Spectrophotometer. This sensor connects to your device via Bluetooth® wireless technology or USB, making it easy to collect accurate measurements and generate full spectra, Beer’s law data, and kinetic traces of ultraviolet and visible-absorbing samples (such as aspirin, DNA, proteins, and NADH). Compatible with LabQuest® 2, LabQuest 3, Vernier Spectral Analysis®, and Logger Pro® 3, the Go Direct UV-VIS Spectrophotometer promotes student engagement through data visualization and analysis. To conduct emission spectra experiments, simply attach the Vernier Spectrophotometer Optical Fiber.

Specifications

  • Detection modes: Absorbance,  %Transmittance, Intensity, and Raw Lamp
  • Experiment types: Full Spectrum, time-based (kinetics), and event-based (Beer’s law)
  • Dimensions: 18.5 cm × 17.0 cm × 7.0 cm
  • Lamp power supply: AC adapter (included)
  • Bluetooth power supply: USB (USB power adapter included)
  • Power consumption: 3 A start-up, 500 mA continuous
  • Light source: Deuterium (UV) and incandescent (VIS)
  • Detector: Linear CCD
  • Wavelength range: 220–850 nm
  • Wavelength reporting interval: ~1 nm
  • Optical resolution: 3.0 nm (as determined with 486 nm hydrogen emission spectral line FWHM)
  • Wavelength accuracy: ± 2.0 nm (as determined with holmium oxide NIST standard)
  • Absorbance photometric accuracy: ± 5.0% (as determined with potassium dichromate NIST standards)
  • Absorbance photometric range (for best accuracy): 0.1–1.0
  • Typical scan time: ~2 s
  • Operating temperature: 15–35°C
  • Sample format: 10 mm × 10 mm cuvette (two UV quartz cuvettes included)

Experiments

Free Experiment Downloads

Preview and/or edit the spectroscopy experiments for your curriculum by downloading a zip file for each of the experiments below. Each experiment’s zip file contains two student versions (one for use with Logger Pro®/LabQuest® and one for Vernier Spectral Analysis®) as well as an instructor version. The Student download includes objectives, materials, procedures, and analysis for use with Vernier Spectral Analysis®, LabQuest®, or Logger Pro®. The Instructor download includes notes, sample results and graphs, and answers.

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support 1
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Full support 1

Compatibility Notes

  1. Connect this sensor via USB. Wireless data collection is not supported.
Computers
Software
InterfaceSpectral Analysis for Computers
Version 4.8
Graphical Analysis App for Computers
Version 5.4
Logger Pro
Version 3.16
No interface requiredFull support 1IncompatibleFull support 2
LabQuest 3IncompatibleFull support 3Incompatible
LabQuest 2 (discontinued)IncompatibleFull support 3Incompatible

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Connect this sensor via USB. Wireless data collection is not supported.
  3. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
Chromebook
Software
InterfaceSpectral Analysis for Chrome
Version 4.8
Graphical Analysis App for Chrome
Version 5.4
No interface requiredFull supportIncompatible
LabQuest 3IncompatibleFull support 1
LabQuest 2 (discontinued)IncompatibleFull support 1

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
iOS
Software
InterfaceSpectral Analysis for iOS
Version 4.8
Graphical Analysis App for iOS
Version 5.4
Graphical Analysis GW for iOS
Version 4.0.6
No interface requiredFull supportIncompatibleIncompatible
LabQuest 3IncompatibleFull support 1 2Full support 1 2
LabQuest 2 (discontinued)IncompatibleFull support 1 2Full support 1 2

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  2. Connect this sensor directly to an iOS or Android™ device via wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to an iOS or Android device via Wireless Data Sharing.
Android
Software
InterfaceSpectral Analysis for Android
Version 4.8
Graphical Analysis App for Android
Version 5.4
Graphical Analysis GW for Android
Version 3.2
No interface requiredFull supportIncompatibleIncompatible
LabQuest 3IncompatibleFull support 1 2Full support 1 2
LabQuest 2 (discontinued)IncompatibleFull support 1 2Full support 1 2

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
  2. Connect this sensor directly to an iOS or Android™ device via wireless Bluetooth® connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used via USB with LabQuest 2 or LabQuest 3 when the LabQuest is connected to an iOS or Android device via Wireless Data Sharing.

What's Included

  • Go Direct UV-VIS Spectrophotometer
  • AC Power Supply
  • Starna® quartz cuvettes (2)
  • Mini USB cable
  • USB Power Adapter

Accessories

AccessoryOrder CodePriceQuantity
Cuvette RackCUV-RACK$9.00
Vernier Spectrophotometer Optical FiberVSP-FIBER$74.00
Mini USB-C CableCB-USB-C-MINI$9.00
Quartz CuvettesCUV-QUARTZ$219.00
Plastic Cuvettes (UV-VIS)CUV-UV$159.00
Replacement PartOrder CodePriceQuantity
Mini USB CableCB-USB-MINI$5.00
Quartz CuvettesCUV-QUARTZ$219.00
Replacement Power Supply for UV-VIS and Fluorescence/UV-VIS SpectrophotometerVSP-UV-PS$35.00

Support

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
