Qubit EKG/EMG Sensor

Qubit EKG/EMG Sensor

Qubit EKG/EMG Sensor

$1,099.00

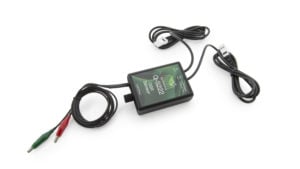

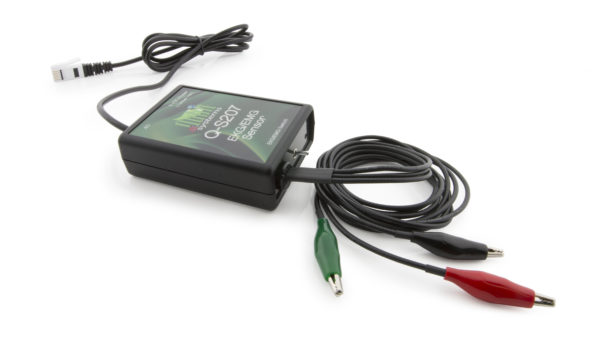

The Qubit EKG/EMG Sensor is designed to measure voltage waveforms produced during muscle contraction (EMGs). In addition, it has a switch setting that can be used for recording EKGs.

ORDER CODE: Q-S207 Category

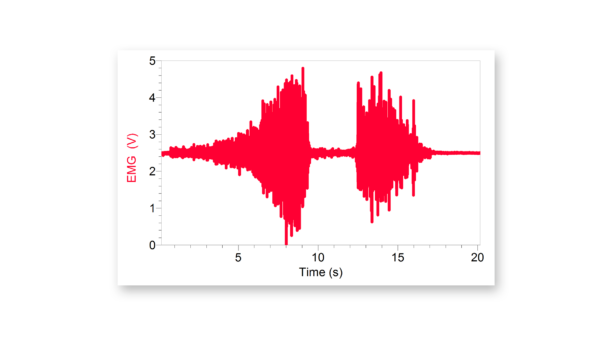

The Qubit EKG/EMG Sensor is designed to measure electromyograms (EMGs). These are voltage waveforms produced during muscle contraction. This sensor is a bioamplifier with high gain and excellent high frequency response, making it ideal for recording EMGs from muscles. This sensor also has a switch setting for recording EKGs.

Download EKG/EMG Logger Pro setup files

Specifications

  • Offset: Not Applicable
  • Gain: 1076
  • Frequency Response: 0.2 Hz – 1.6kHz

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest® 3Full support 1
LabQuest 2 (discontinued)Full support 1
LabQuest (discontinued)Incompatible

Compatibility Notes

  1. Sensor does not auto-ID; manual setup is required.
Computers
Software
InterfaceGraphical Analysis App for Computers
Version 4.10
Logger Pro
Version 3.16
LabQuest MiniIncompatibleFull support 1
LabQuest® 3Full support 1 2Full support 1
LabQuest 2 (discontinued)Full support 1 2Full support 1
LabQuest StreamIncompatibleFull support 1
Go!LinkIncompatible 1Full support 1
LabQuest (discontinued)IncompatibleFull support 1

Compatibility Notes

  1. Sensor does not auto-ID; manual setup is required.
  2. Full support of this sensor is only available when LabQuest 2 or LabQuest 3 is connected to a computer or Chromebook via Wireless Data Sharing. This sensor is not supported when used with a LabQuest connected via USB to a computer or Chromebook.
Chromebook
Software
InterfaceGraphical Analysis App for Chrome
Version 4.10
LabQuest® 3Full support 1 2
LabQuest 2 (discontinued)Full support 1 2

Compatibility Notes

  1. Sensor does not auto-ID; manual setup is required.
  2. Full support of this sensor is only available when LabQuest 2 or LabQuest 3 is connected to a computer or Chromebook via Wireless Data Sharing. This sensor is not supported when used with a LabQuest connected via USB to a computer or Chromebook.
iOS
Software
InterfaceGraphical Analysis App for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest® 3Full support 1 2Full support 1 2
LabQuest 2 (discontinued)Full support 1 2Full support 1 2

Compatibility Notes

  1. Sensor does not auto-ID; manual setup is required.
  2. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis App for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest® 3Full support 1 2Full support 1 2
LabQuest 2 (discontinued)Full support 1 2Full support 1 2

Compatibility Notes

  1. Sensor does not auto-ID; manual setup is required.
  2. iOS and Android devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1 2

Compatibility Notes

  1. Requires advanced programming for data collection
  2. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQFull support 1
Vernier myDAQ AdapterFull support 1 2
Go!LinkFull support 1 2
LabQuest MiniFull support 1 3
LabQuest StreamFull support 3

Compatibility Notes

  1. Requires advanced programming for data collection
  2. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
  3. Sensor does not auto-ID; manual setup is required.

What's Included

  • Qubit EKG/EMG Sensor
  • Power supply
  • One package of 100 disposable electrodes
  • USB drive with user manual

Accessories

AccessoryOrder CodePriceQuantity
EKG ElectrodesELEC$15.00

Support

User Manual

View User Manual

Warranty

5-year limited warranty (consumables excluded)
See our warranty policy

Resources

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
