Surface Temperature Sensor

Surface Temperature Sensor

Surface Temperature Sensor

$25.00

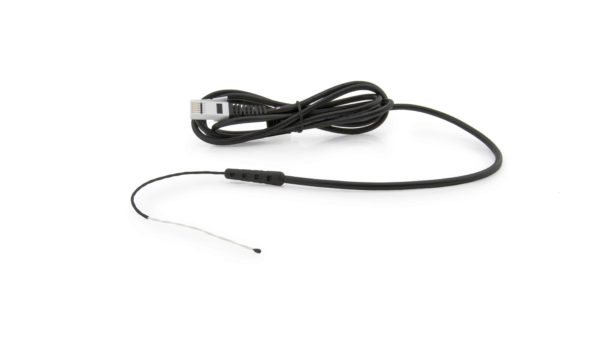

The Surface Temperature Sensor is designed for use in situations in which low thermal mass or flexibility is required, or for a skin temperature measurement.

ORDER CODE: STS-BTA Categories ,

The Surface Temperature Sensor has an exposed thermistor that results in an extremely rapid response time. This design allows for use in air and water. For temperature measurements in harsher environments that require a more durable probe, we recommend our Stainless Steel Temperature Probe.

Specifications

  • Temperature range: –25 to 125°C (–13 to 257°F)
  • Maximum temperature that the sensor can tolerate without damage: 150°C
  • Typical Resolution:
    • 0.08°C (–25 to 0°C)
    • 0.03°C (0 to 40°C)
    • 0.1°C (40 to 100°C)
    • 0.25°C (100 to 125°C)
  • Temperature sensor: 20 kΩ NTC Thermistor
  • Accuracy: ±0.2°C at 0°C, ±0.5°C at 100°C
  • Response time (time for 90% change in reading)
    • 50 seconds (in still air)
    • 20 seconds (in moving air)
  • Probe dimensions: Probe length (handle plus body) 15.5 cm

Important: For use in air and water only. For temperature measurements in harsher environments, we recommend the Stainless Steel Temperature Sensor.

Compatibility Requirements

LabQuest 2

Full Support

The Surface Temperature Sensor is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.15
Logger Lite
Version 1.9.4
LabQuest MiniFull supportFull supportFull support
LabQuest 2Full supportFull supportFull support
LabQuest StreamFull support 1Full supportFull support 2
Go!LinkFull supportFull supportFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
  2. Connect LabQuest Stream via USB. Wireless connection is not supported.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
LabQuest MiniFull support
LabQuest 2Full support
LabQuest StreamFull support 1
Go!LinkFull support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest StreamFull supportFull support
LabQuest 2Full support 1Full support 1

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
LabQuest StreamFull supportFull supportIncompatible
LabQuest 2Full support 1Full support 1Incompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.

Experiments

Elementary School (3 experiments)
High School (15 experiments)
College (7 experiments)

What's Included

  • Vernier Surface Temperature Sensor
  • User manual

Support

User Manual

View User Manual

Warranty

5-year limited warranty

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
