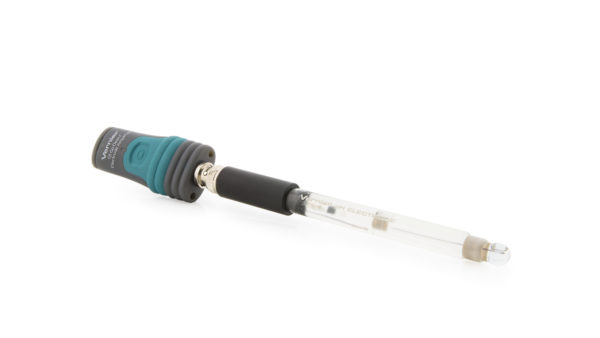

Go Direct® Glass-Body pH Sensor

$139.00

Use the Go Direct Glass-Body pH to measure pH in aqueous, heterogeneous, and organic solutions. It connects via Bluetooth® wireless technology or via USB to your device.

ORDER CODE: GDX-GPH Categories ,

This high-quality glass body pH sensor can be used in non-aqueous solutions and solutions that contain organic solvents, strong acids, or strong bases. The electrode features a sealed, gel-filled Ag-AgCl combination reference electrode and uses a BNC connector.

Specifications

  • pH range: 0–14
  • Type: Glass shaft, sealed combination electrode with Ag/AgCl reference
  • Temperature range: 0–80°C (readings not compensated)
  • Accuracy
    • ±0.2 pH units (factory calibration)
    • ±0.05 pH units (user calibration)
  • Response time:
    • 2 s (to 90% of full reading in aqueous buffer)
    • 5 s (to 90% of full reading in 50% acetonitrile)
  • Shaft diameter: 12 mm OD
  • Shaft material: glass

Compatibility Requirements

LabQuest 2

Full Support

The Go Direct® Glass-Body pH Sensor is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Compatibility Notes

  1. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
No interface requiredFull support 1
LabQuest 2Full support 2 3

Compatibility Notes

  1. For Bluetooth® connectivity, only computers running Windows 10 or Mac OS X 10.10 or newer are supported. The computer must also have a compatible Bluetooth 4.0+ radio.
  2. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
No interface requiredFull support
LabQuest 2Full support 1 2

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB or wireless Bluetooth® connection for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 when LabQuest 2 is connected to a computer or Chromebook via Wireless Data Sharing.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
No interface requiredFull supportFull support
LabQuest 2Full support 1 2 3Full support 1 2 3

Compatibility Notes

  1. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.
  2. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
  3. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
Google Science Journal
Version 1.2.259
No interface requiredFull supportIncompatibleFull support 1
LabQuest 2Full support 2 3 4Full support 2 3

Compatibility Notes

  1. In addition to having the Science Journal app installed and the Location permission enabled, you must also install Graphical Analysis 4 on your Android device to use this sensor.
  2. Wireless connection of this sensor to a LabQuest 2 requires a Go Direct Bluetooth Adapter when used with some older LabQuest 2 models.
  3. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
  4. Connect this sensor directly to a supported mobile device via a wireless Bluetooth® connection for best results.

What's Included

Support

User Manual

View User Manual

Warranty

5-year limited warranty (1 year on battery)

Contact Us

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
