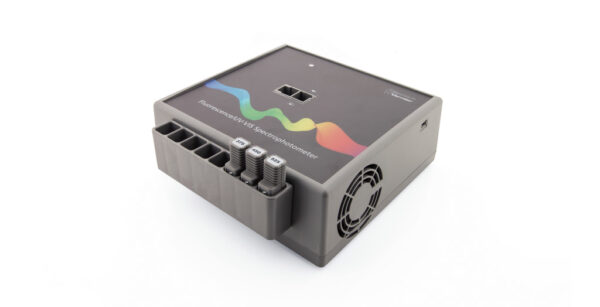

Vernier Fluorescence/UV-VIS Spectrophotometer

Vernier Fluorescence/UV-VIS Spectrophotometer

Vernier Fluorescence/UV-VIS Spectrophotometer

The Fluorescence/UV-VIS Spectrophotometer measures the absorbance and fluorescence spectra of various chemical and biochemical compounds.

ORDER CODE: VSP-FUV Categories ,

Our affordable Fluorescence/UV-VIS Spectrophotometer is designed specifically for upper-level chemistry courses. We’ve combined the functionality of a fluorometer with the power of a UV/VIS spectrophotometer to allow students to easily and accurately conduct numerous fluorescence experiments with compounds such as quinine sulfate, DAPI, GFP, and tryptophan. Exchangeable LEDs ensure you get the exact excitation wavelength needed for your experiment. To conduct emission spectra experiments simply attach the Vernier Spectrophotometer Optical Fiber.

The Fluorescence/UV-VIS Spectrophotometer connects directly to a computer or LabQuest. Data can be collected and analyzed using our Logger Pro software or free Spectral Analysis software, so there is no need to train students on yet another instrument software.

Specifications

  • Detection modes: Absorbance and Fluorescence
  • Dimensions: 18.5 cm × 17.0 cm × 7.0 cm
  • Power supply: AC adapter (included)
  • Power consumption: 3 A start-up, 500 mA continuous
  • Absorbance light source: deuterium (UV) and incandescent (VIS)
  • Emission light source: Exchangeable LED (ships with 375 nm, 450 nm, 525 nm)
  • Detector: Linear CCD
  • Wavelength range: 220–850 nm
  • Wavelength reporting interval: ~ 1 nm
  • Optical resolution: 3.0 nm (as determined with 486 nm hydrogen emission spectral line FWHM)
  • Wavelength accuracy: ± 2.0 nm (as determined with holmium oxide NIST standard)
  • Absorbance photometric accuracy: ± 5.0% (as determined with potassium dichromate NIST standards)
  • Absorbance photometric range (for best accuracy): 0.1–1.0
  • Typical scan time: ~ 2 s
  • Sample format: 10 mm × 10 mm cuvette (UV fluorescence cuvette included)
  • Fluorescence emission detection limit: 1 mg/L quinine sulfate dihydrate in 0.1 M H2SO4

Experiments

College (9 experiments)



Free Experiment Downloads

Preview and/or edit the spectroscopy experiments for your curriculum by downloading the experiments below. The Student download includes objectives, materials, procedures, and analysis. The Instructor download includes notes, sample results and graphs, and answers.

EXPERIMENT DOWNLOAD

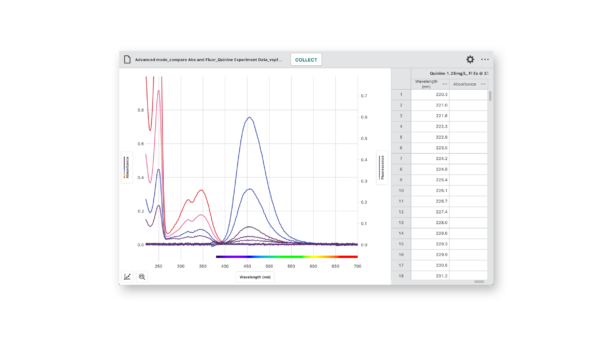

1 Absorbance and Fluorescence Characterization of Quinine Student Instructor
2 A Guided Inquiry Approach to Understanding Fluorescence Spectroscopy Student Instructor

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest
InterfaceLabQuest App
LabQuest 3Full support
LabQuest 2 (discontinued)Full support
LabQuest (discontinued)Incompatible
Computers
Software
InterfaceSpectral AnalysisGraphical AnalysisLogger Pro
No interface requiredFull supportIncompatibleFull support
LabQuest 3IncompatibleFull support 1Incompatible
LabQuest 2 (discontinued)IncompatibleFull support 1Incompatible

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
Chromebook
Software
InterfaceSpectral AnalysisGraphical Analysis
No interface requiredFull supportIncompatible
LabQuest 3IncompatibleFull support 1
LabQuest 2 (discontinued)IncompatibleFull support 1

Compatibility Notes

  1. Connect this sensor directly to a computer or Chromebook via a USB connection and use with Spectral Analysis App for best results. Alternatively, this sensor is fully supported when used with LabQuest 2 or LabQuest 3 when the LabQuest is connected to a computer or Chromebook via Wireless Data Sharing.
iOS
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest 3Full support 1Full support 1
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.
Android
Software
InterfaceGraphical AnalysisGraphical Analysis GW
LabQuest 3Full support 1Full support 1
LabQuest 2 (discontinued)Full support 1Full support 1

Compatibility Notes

  1. iOS and Androidâ„¢ devices can only connect to LabQuest 2 or LabQuest 3 via Wireless Data Sharing.

What's Included

Accessories

AccessoryOrder CodePriceQuantity
Fluorescence LED Cartridges - 280 nmVSP-280$439.00
Fluorescence LED Cartridges - 350 nmVSP-350$176.00
Fluorescence LED Cartridges - 400 nmVSP-400$88.00
Vernier Spectrophotometer Optical FiberVSP-FIBER$79.00
Mini USB-C CableCB-USB-C-MINI$9.00
Fluorescence LED Cartridges - 500 nmVSP-500$88.00
Fluorescence LED Cartridges - 525 nmVSP-525$80.00
Replacement PartOrder CodePriceQuantity
Mini USB CableCB-USB-MINI$5.00
Quartz CuvettesCUV-QUARTZ$299.00
Fluorescence LED Cartridges - 280 nmVSP-280$439.00
Fluorescence LED Cartridges - 350 nmVSP-350$176.00
Fluorescence LED Cartridges - 375 nmVSP-375$90.00
Fluorescence LED Cartridges - 400 nmVSP-400$88.00
Fluorescence LED Cartridges - 450 nmVSP-450$88.00
Fluorescence LED Cartridges - 500 nmVSP-500$88.00
Fluorescence LED Cartridges - 525 nmVSP-525$80.00
Fluorescence/UV Quartz CuvetteCUV-QUARTZ-FUV$249.00
Replacement Power Supply for UV-VIS and Fluorescence/UV-VIS SpectrophotometerVSP-UV-PS$35.00

Support

Educational use only: Vernier products are designed for educational use. They are not appropriate for industrial, medical, or commercial applications.
