Diffraction Apparatus

$620.00

Use the Diffraction Apparatus to map light intensity vs. position for various slit geometries. Track is required and sold separately.

ORDER CODE: DAK Category

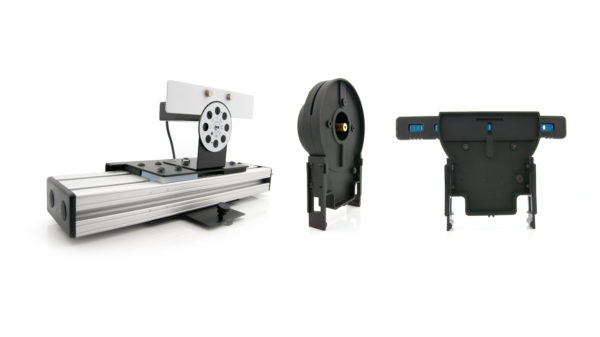

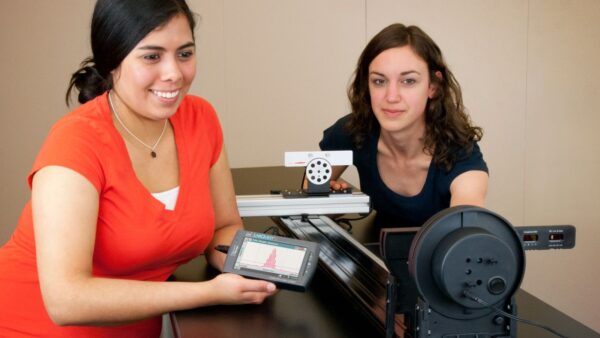

The Diffraction Apparatus lets students create, view, and measure diffraction and interference patterns. The included Red Diffraction Laser provides a clean monochromatic light source. Slits are made by depositing metal film on glass, creating extraordinarily clean slits with fully opaque blocking areas. These high-precision slits cast clean diffraction and interference patterns, ideal for quantitative matching of intensity vs. position predictions.

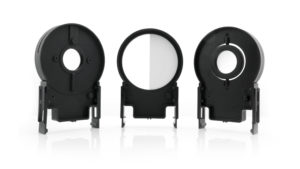

The Linear Position Sensor and High Sensitivity Light Sensor completes the Diffraction Apparatus. In order to provide excellent spatial resolution, a selectable entrance aperture restricts the width of the pattern viewed by the High Sensitivity Light Sensor. The light sensor has three ranges, allowing the study of fine details or gross features of patterns. To measure position, the light sensor is mounted on a novel Linear Position Sensor.

This position sensor uses a precision optical encoder to measure translation with better than 50-micron resolution. Since it is optically based, without gears or racks, it has zero backlash.

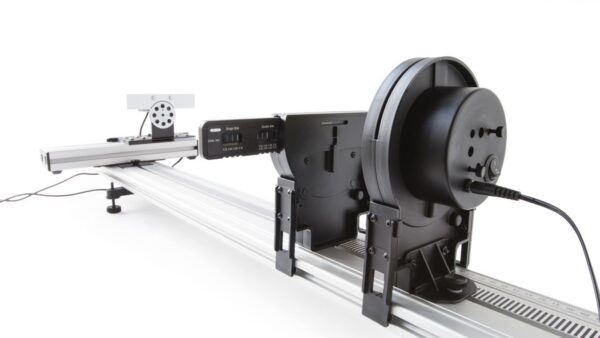

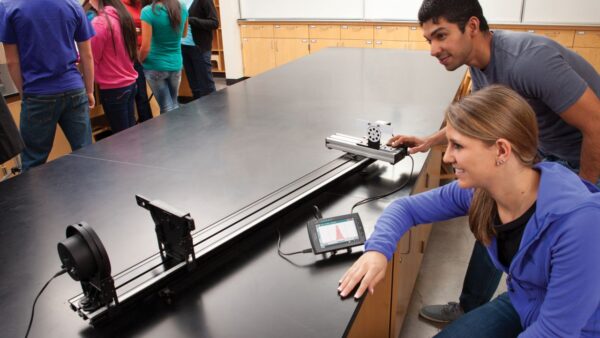

Data collection is performed by choosing a slit, directing the laser through the slit, and choosing an entrance aperture for the light sensor. Both the light sensor and position sensor connect to your interface. The light sensor is moved by hand over a 150 mm distance, tracing out the diffraction pattern.

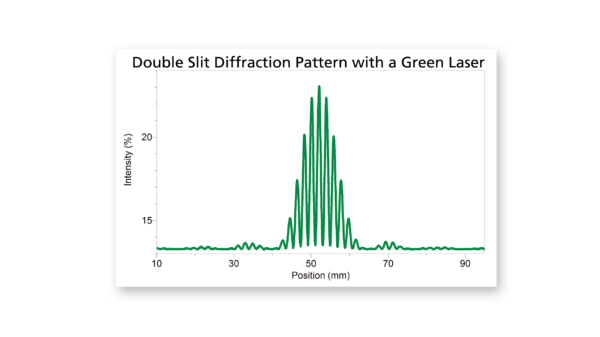

The Diffraction Apparatus requires a Combination 1.2 m Track/Optics Bench individually or part of the Dynamics Cart and Track System. An optional Green Diffraction Laser is also available so that the effect of wavelength on the pattern can be measured.

Specifications

  • Red Laser Wavelength: 635 nm +/- 5 nm (Class 2 laser product)
  • Light Sensor Full Scale Ranges: 1, 10, and 100 µW
  • Linear Position Sensor range: 150 mm
  • Linear Position Sensor resolution: 40 µm

Available slits

  • Single Slits (4)
    • 0.02 mm
    • 0.04 mm
    • 0.08 mm
    • 0.16 mm
  • Variable Slits
    • Wedge: 0.02 – 0.2 mm wide
    • Double Slit: 0.04 mm wide, spacing 0.25 – 0.75 mm
  • Double Slits (4 pairs)
    • 0.04 mm wide at 0.25 mm apart
    • 0.04 mm wide at 0.5 mm apart
    • 0.08 mm wide at 0.25 mm apart
    • 0.08 mm wide at 0.5 mm apart
  • Variable Double Slit:
    Same as variable slits group above
  • Multiple Slits
    • 0.04 mm wide at 0.125 mm apart
    • 4 sets, 2, 3, 4, 5 slits
  • Comparisons: 4 pairs of single/double slits:
    • 0.04 mm single and 0.04/0.25 mm double
    • doubles 0.04/0.25 and 0.04/0.50
    • doubles 0.04/0.25 and 0.08/0.25
    • double 0.04/0.25 and triple, 0.04/0.25

Experiments

High School (3 experiments)
College (3 experiments)

Requirements

Choose a platform below to see its compatibility requirements.

LabQuest 2

Full Support

The Diffraction Apparatus is fully supported with LabQuest 2 (version 2.8.5), a standalone data logger with built-in graphing and analysis software.

Learn more about LabQuest 2 »

Computers
Software
InterfaceGraphical Analysis 4 for Computers
Version 4.10
Logger Pro
Version 3.16
LabQuest 2Full supportFull support
LabQuest MiniFull supportFull support
Original LabQuestFull supportFull support
LabQuest StreamFull support 1Full support

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
Chromebook
Software
InterfaceGraphical Analysis 4 for Chrome
Version 4.10
LabQuest 2Full support
LabQuest MiniFull support
Original LabQuestFull support
LabQuest StreamFull support 1

Compatibility Notes

  1. Connect LabQuest Stream via USB. Future software updates will support connection via Bluetooth® technology
iOS
Software
InterfaceGraphical Analysis 4 for iOS
Version 4.10
Graphical Analysis GW for iOS
Version 4.0.6
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportIncompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Android
Software
InterfaceGraphical Analysis 4 for Android
Version 4.10
Graphical Analysis GW for Android
Version 3.2
LabQuest 2Full support 1Full support 1
LabQuest StreamFull supportIncompatible

Compatibility Notes

  1. iOS and Android devices can only connect to LabQuest 2 via Wireless Data Sharing.
Arduino
Software
InterfaceArduino
Vernier Arduino® Interface ShieldFull support 1 2

Compatibility Notes

  1. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
  2. Requires advanced programming for data collection
LabVIEW
Software
InterfaceNI LabVIEW
SensorDAQFull support 1 2
Vernier myDAQ AdapterFull support 1 2
LabQuest MiniFull support 1
LabQuest StreamFull support 1
Original LabQuestFull support 1
LabQuest 2Full support 1

Compatibility Notes

  1. Requires advanced programming for data collection
  2. You can only read the raw count/raw voltage output by this sensor. You must do the programming to convert to proper sensor units.
Original LabQuest
Software
InterfaceLabQuest App for Original LabQuest
Version 1.7.6
Original LabQuestFull support
Texas Instruments
Software
InterfaceDataQuest
Version 4.2
TI-Nspire Software
TI-Nspire Lab CradleFull support 1Full support 1

Compatibility Notes

  1. Sensor does not auto-ID; manual setup is required.

What's Included

Accessories

AccessoryOrder CodePriceQuantity
Green Diffraction LaserGDL-DAK$250.00
Combination Track/Optics BenchStarts at $135.00
